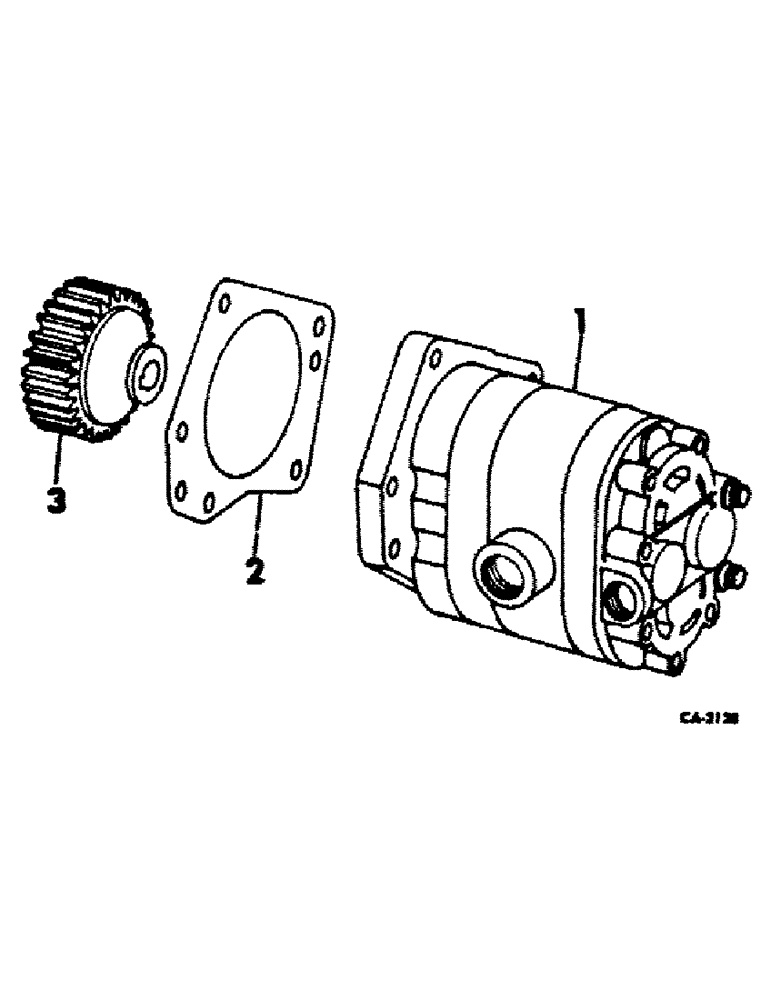

Запчасти Case IH 403 (157) - HYDRAULIC PUMP (35) - HYDRAULIC SYSTEMS

1

632862R92

PUMP ASSY, hydraulic double, Serial no. 940 and below

1шт.

5/16 X 4-3/4 CAP SCREW

4шт.

632878R1

5/16 X 5 CAP SCREW

2шт.

1

154680C92

PUMP

ASSY, hydraulic, Serial no. 941 and above

1шт.

313756R1

BOLT (SPREADER),Pan, M8 x 18mm

BOLT, 3/8-16 x 1-1/4 hex-hd

1шт.

565832R1

WASHER

pump mounting bolt

1шт.

2

632851R1

GASKET

flange

1шт.

3

631180R1

GEAR

hyd level pump

1шт.

125-10003

NUT,3/8"-16, G5, LH

3/8 hex. LH thd

1шт.

632019R1

LOCK WASHER,3/8"

L.H. 3/8"

1шт.

Q5035

WASHER

17/32 x 1 x 16 ga

1шт.

170005C91

KIT

major seal repair, Consists of

1шт.

SPRING

2шт.

SEAL, diaphram

2шт.

DIAPHRAM

2шт.

GASKET, backup

2шт.

PLATE, thrust

1шт.

RING

1шт.

GASKET, protector

2шт.

SEAL

1шт.

GASKET

2шт.

BALL, 7/32 steel

2шт.
