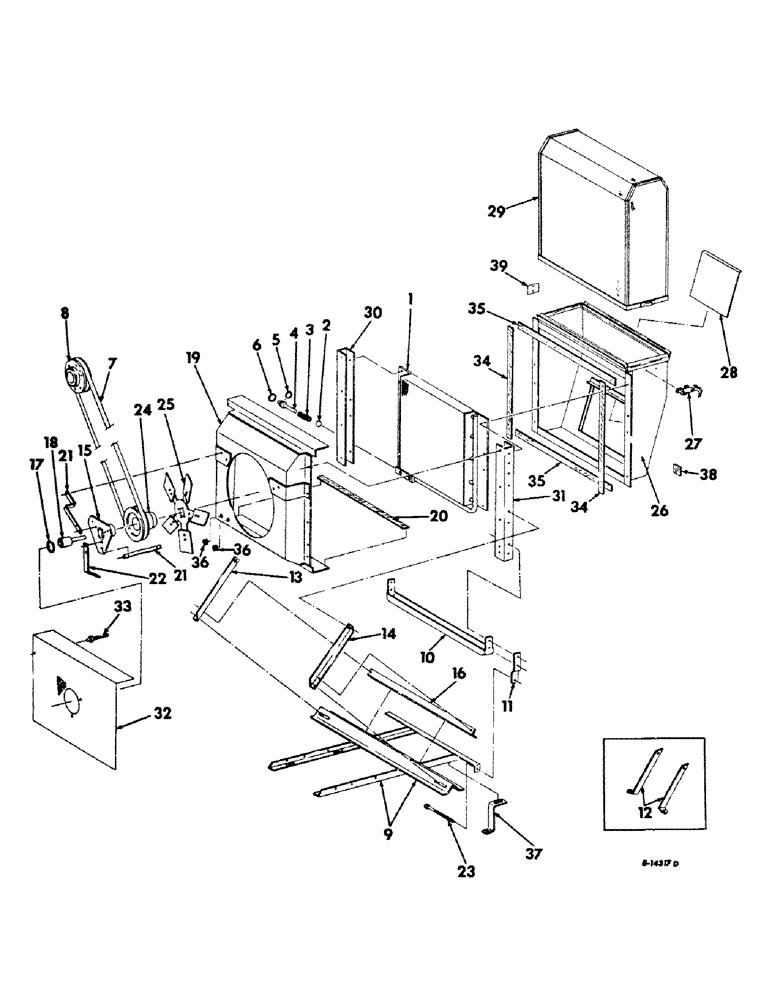

Запчасти Case IH 403 (155) - OIL COOLER, FAN, FRAME, SCREEN AND SHROUD, FOR HYDROSTATIC GROUND DRIVE (35) - HYDRAULIC SYSTEMS

1

150947C91

COOLER ASSY, oil, Includes ref nos. 2, 3, 4, 5 and 6

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

8шт.

120376

NUT,5/16"-18, G5

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

2

17016R1

BALL,1/2" Dia

Check spring 1/2" Dia

1шт.

3

324012R1

SPRING, check

1шт.

4

150647C91

PLUG ASSY

1шт.

5

298389R1

RING

O-RING, .614 x .070 x 1/16

1шт.

6

55163R1

SNAP RING,0.75", Int, #75

Ring, Snap, 0.75", Int, #75

1шт.

7

150960C1

V-BELT,113.79" L

Oil Cooler Fan Drive 113.79" L

1шт.

8

150911C1

PULLEY, oil cooler fan drive

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8 x 1-1/4 C-Z hex-hd cap

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

9

150923C91

FRAME ASSY, oil cooler support

1шт.

15008

KEY

BOLT, 3/8 x 1 sq-nk crg

2шт.

15009

HARNESS

BOLT, 7/16 x 1 sq-nk crg

2шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 hex-hd mach

10шт.

102635

NUT,3/8"-16, G5

12шт.

NLS

NO LONGER SERVICED

7/16 hex.

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

575807R1

WASHER

13/32 x 1 x 11 ga

10шт.

10

150928C91

SUPPORT ASSY, oil cooler

1шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z sq-nk crg

4шт.

18695R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/4", Gr 2

BOLT, 7/16 x 1-1/4 C-Z sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

NLS

NO LONGER SERVICED

NUT, 3/8 C-Z hex.

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

11

150930C1

STRAP, oil cooler tightener

1шт.

12

150931C1

STRIP, oil cooler support

2шт.

17447R1

BOLT

7/16 x 1-1/4 hex-hd mach

2шт.

NLS

NO LONGER SERVICED

7/16 hex.

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

PO10534

WASHER

15/32 x 1-1/4 x 11 ga

2шт.

13

150932C1

ANGLE

oil cooler left tie

1шт.

15009R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G2, Full Thd

1шт.

NLS

NO LONGER SERVICED

7/16 hex.

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

14

150933C1

ANGLE, oil cooler right tie

1шт.

15009R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G2, Full Thd

1шт.

NLS

NO LONGER SERVICED

7/16 hex.

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

15

150936C91

HUB ASSY, oil cooler fan

1шт.

16

150935C1

ANGLE, oil cooler tie rail

1шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, 3/8 x 1 sq-nk crg

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

17

559203R1

SNAP RING,#118, 1.260", Int, Spiral

RING, oil cooler fan hub snap

1шт.

18

ST634

BEARING ASSY

BEARING, oil cooler fan hub ball

1шт.

19

150939C91

SHROUD ASSY, oil cooler fan

1шт.

181595

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

SCREW, 5/16 x 3/4 C-Z hex-hd cap

8шт.

362662R91

NUT

5/16-24 C-Z speed grip

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

20

387958R1

STRIP, sta-foam sealing

1шт.

21

150945C1

STRAP, oil cooler fan hub upper

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

5шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

SCREW, 5/16 x 5/8 C-Z hex-hd cap

2шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16 x 3/4 C-Z hex-hd cap

2шт.

120376

NUT,5/16"-18, G5

5шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

9шт.

PO10531/2

WASHER, 11/32 x 1-1/2 x 11 ga

4шт.

22

150946C1

STRIP, oil cooler fan hub lower

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

3шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

SCREW, 5/16 x 5/8 C-Z hex-hd cap

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16 x 3/4 C-Z hex-hd cap

1шт.

120376

NUT,5/16"-18, G5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

PO10531/2

WASHER, 11/32 x 1-1/2 x 11 ga

2шт.

23

150978C1

BOLT, oil cooler fan drive draw

1шт.

102639

NUT,5/8"-11, G5

1шт.

24

372724R1

PULLEY

oil cooler fan driven

1шт.

25

267450R91

BLADE ASSY, oil cooler fan, five blade, optional for blade assy 371633R91

1шт.

25

371633R91

FAN

BLADE ASSY, oil cooler fan, five blade, optional for blade assy 267450R91

1шт.

180018

CONNECTING LINK

SCREW, 1/4 x 5/8 C-Z hex-hd cap

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

26

159931C91

CHUTE ASSY, oil cooler fan, Includes ref. nos. 27, 34, 34 and 38

1шт.

145189

SCREW, no. 10 x 3/4 C-Z slt-pan-hd tap

2шт.

470-1258

SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"

1/4 x 1/2 C-Z slt-pan-hd mach

4шт.

181595

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

SCREW, 5/16 x 3/4 C-Z hex-hd cap

8шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

362662R91

NUT

5/16-24 C-Z speed grip

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

27

353443R91

LATCH ASSY.

LATCH ASSY, air chute

2шт.

113356

RIVET,Tr Hd, 3/16" x 3/8"

3/16 x 3/8 ov-hd tubular

4шт.

28

274733R1

DOOR, oil cooler fan chute

1шт.

29

274734R91

SCREEN ASSY, oil cooler fan chute

1шт.

30

318284R2

CHANNEL, oil cooler fan chute left

1шт.

31

318285R3

CHANNEL, oil cooler fan chute right

1шт.

32

151002C1

SIEVE, oil cooler fan drive shield

1шт.

33

564460R1

BOLT, oil cooler fan drive shield sieve

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 hex.

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

Q397

WASHER

11/32 x 3/4 x 16 ga

5шт.

PO105311/2

WASHER, 11/32 x 1-1/2 x 11 ga

2шт.

34

318106R1

STRIP, sta-foam sealing

2шт.

35

318104R1

STRIP, sta-foam sealing

2шт.

36

142350

GROMMET,7/8" ID x 1 5/8" x .125", Diag Cut

7/8 rubber plain

2шт.

37

NOT USED THIS APPLICATION

1шт.

38

318102R1

STRIP, sta foam sealing

1шт.

39

161109C1

COVER, condensor air chute hose hole

1шт.
