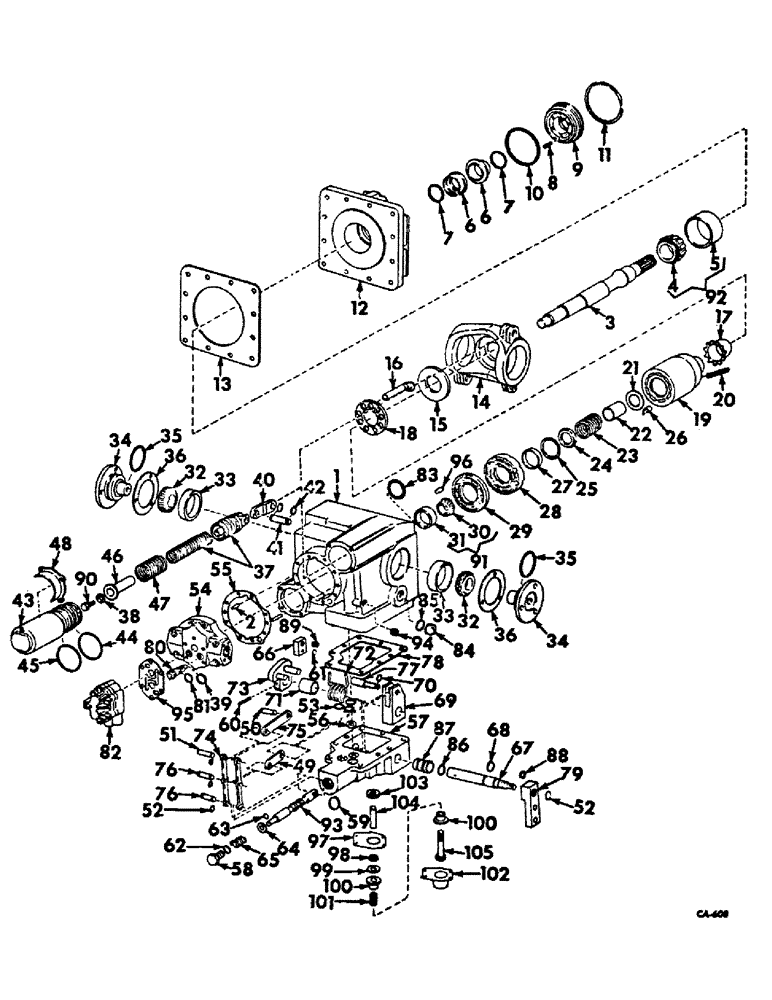

Запчасти Case IH 403 (152) - HYDRAULIC TRANSMISSION PUMP, FOR HYDROSTATIC GROUND DRIVE (35) - HYDRAULIC SYSTEMS

406887R94

PUMP

ASSY, ground drive

1шт.

1

394179R1

HOUSING

transmission pump

1шт.

2

21061R1

DOWEL,3/8" x 1/2"

PIN, 3/8 x 1/2 dowel pump housing

4шт.

3

394180R1

SHAFT

pump drive

1шт.

4

BEARING ASSY, drive shaft front cone, Not serviced separately order bearing assy 394181R91

1шт.

5

BEARING ASSY, drive shaft front cup, Not serviced separately order bearing assy 394181R91

1шт.

6

403072R92

O-RING KIT

o-ring and seal, Includes ref. nos. 7, 8 and 10

1шт.

7

26078R1

O-RING,-129, Cl 7, 1.549" ID x .103" Thk

1-9/16 x 1-3/4 x 3/32

2шт.

8

393882R1

SPRING

drive shaft face seal retainer

6шт.

9

393881R91

RETAINER

ASSY, drive shaft face seal

1шт.

10

707220R1

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

3 x 3-1/4 x 1/8

1шт.

11

393883R1

SNAP RING,3.346", Int, #334

Ring, Snap, , drive shaft face seal 3.346", Int, #334

1шт.

12

394183R1

COVER, transmission pump front

1шт.

NLS

NO LONGER SERVICED

4шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

4шт.

179850

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

SCREW, 3/8-16 x 2-3 hex-hd cap

4шт.

394881R1

WASHER

13/32 x 11/16 x .106

13шт.

13

394184R1

GASKET

transmission pump front cover

1шт.

14

394185R1

SWASHPLATE, transmission pump

1шт.

15

394186R1

WASHER

PLATE, piston slipper thrust

1шт.

16

539252R1

PISTON ASSY.

PISTON ASSY, cyl block, will work for 394187R91

9шт.

17

394188R1

GUIDE

cyl block piston slipper

1шт.

18

394189R1

RETAINER

cyl block piston slipper

1шт.

19

394190R91

BLOCK

ASSY, piston cyl

1шт.

20

394191R1

SPRING

piston cyl block

9шт.

21

394192R1

SEAT

piston cyl block spring

1шт.

22

394193R1

BUSHING

drive shaft rear spring

1шт.

23

532290R1

SPRING

drive shaft rear, will work for 394194R1

1шт.

24

394195R1

RETAINER

drive shaft rear spring

1шт.

25

21016R1

SNAP RING,#231, 2.413, Int, Spiral

RING, drive shaft rear spring retainer snap

1шт.

26

527636R1

PIN

cyl block brg plate, Will work for 394196R1

1шт.

27

394197R1

RING

cyl block brg plate pilot

1шт.

28

399406R1

PLATE

cyl block bearing

1шт.

29

530769R1

PLATE

cyl block valve, Will work for 3974199R1

1шт.

30

BEARING ASSY, drive shaft rear pilot cone, Not serviced separately order bearing assy 394200R91

1шт.

31

BEARING ASSY, drive shaft rear pilot cup, Not serviced separately order bearing assy 394200R91

1шт.

32

165963R91

BEARING

ASSY, swashplate cone

2шт.

33

560954R1

BEARING ASSY,1.37525" ID x 2.8755" OD x 0.9688"

swashplate cup

2шт.

34

394204R1

TRUNNION

swashplate brg

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

6шт.

394881R1

WASHER

13/32 x 11/16 x .106

6шт.

35

21003R1

O-RING,2.484" ID x 2.762" OD x 0.139"

2-1/2 x 2-3/4 x 1/8

2шт.

36

394205R91

SET

swashplate brg trunnion gasket

1шт.

37

537761R1

PISTON

servo, will work for 403073R1

1шт.

537762R1

SCREW

1/4-20 x 5/8 hex-hd cap

2шт.

38

394207R1

WASHER

servo piston bolt

2шт.

39

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 tube

1шт.

40

549725R1

LINK

servo piston, will work for 406112R1

2шт.

41

65797C1

PIN

servo link, will work for 394209R1

4шт.

42

321935C1

SNAP RING,#62, Ext

Ring, Snap, , servo piston link pin, for use w/pin 394209R1 #62, Ext

8шт.

42

267805R1

RING

servo piston link pin snap, For use w/pin 65797C1

8шт.

43

403074R2

SLEEVE

servo piston

2шт.

44

327110R1

O-RING,-144, 90 Duro, 2.487" ID x .103" Thk

2-1/2 x 2-11/16 x 3/32

2шт.

45

21005R1

O-RING,0.103" Thk x 2.362" ID, -142, Cl 5, 75 Duro

2-3/8 x 2-9/16 x 3/32

2шт.

46

394211R1

GUIDE

servo piston spring

2шт.

47

594726R1

SPRING, servo piston

2шт.

48

394213R1

RETAINER

servo piston sleeve

2шт.

536291R1

SCREW

10-24 x 3/8 hex-soc-hd cap

4шт.

49

406904R1

ELEC CONNECTOR

CONNECTOR, control valve link

1шт.

50

394215R1

PIN

control valve link front

1шт.

51

404781R1

PIN

control valve link rear

1шт.

385180R1

WASHER

9/32 x 1/2 x .065

1шт.

137130

PIN

1/16 x 7/16 cot.

1шт.

52

21364R1

CLEVIS

RING, control valve link pin snap

6шт.

53

382997R1

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1/2 x 5/8 x 1/16

3шт.

54

530731R1

CAP

COVER, transmission pump rear end, Replaces 394217R1

1шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3шт.

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

5шт.

394881R1

WASHER

13/32 x 11/16 x .106

8шт.

55

394218R1

GASKET

transmission pump rear end cover

1шт.

56

394219R1

PLUG

control valve orifice

1шт.

57

NOT SERVICED SEPARATELY

1шт.

58

527552R1

PLUG, valve

1шт.

59

382997R1

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1/2 x 5/8 x 1/16

1шт.

60

19938R1

PIN,1/8" x 7/8", Coiled

1шт.

61

23697R1

WASHER

RING, retaining

1шт.

62

364840R1

O-RING,0.07" Thk x 0.801" ID, -19, Cl 5, 75 Duro

13/16 x 15/16 x 1/16

1шт.

63

603540C1

SNAP RING,#50, Ext

Ring, Snap, #50, Ext

1шт.

64

527553R1

SPRING WASHER

centering spring

1шт.

65

527554R1

SPRING

centering

1шт.

66

527556R1

LINK, adj

1шт.

67

394228R1

SHAFT

control valve handle

1шт.

68

379365R1

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3/8 x 1/2 x 1/16

1шт.

69

406903R1

LINK

control valve handle shaft

1шт.

70

235529R1

SNAP RING,#50, Ext, Crescent

Ring, Snap, , control valve handle shaft #50, Ext, Crescent

1шт.

71

394230R1

SLEEVE

control valve handle shaft return spring

1шт.

72

394231R1

SPRING

control valve handle shaft return

1шт.

73

527555R1

ACTUATOR, spring

1шт.

530788R1

PIN, 1/8 x 1 slt spring

1шт.

74

394233R1

LINK, control valve

2шт.

75

394214R1

LINK

control valve

1шт.

76

394235R1

PIN

control valve link pivot

2шт.

77

406905R1

PIN

control valve handle shaft link

1шт.

78

394237R2

GASKET

control valve housing

1шт.

79

404782R1

HANDLE

control valve shaft

1шт.

114501

JAM NUT,Jam, 1/4"-20, G5

1шт.

406905R1

PIN

control valve handle

1шт.

121753

WASHER

1/4 ext-tooth lock

1шт.

80

394238R91

VALVE

ASSY, charge pump check

2шт.

81

371544R1

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

9/16 x 11/16 x 1/16

2шт.

82

404777R91

HYDROSTATIC PUMP

PUMP ASSY, charge, RH

1шт.

179809

BOLT,Hex, 1/4" - 20 x 3", Gr 5

4шт.

385180R1

WASHER

9/32 x 1/2 x .065

4шт.

83

404780R1

SHIM

pump shaft rear brg. .010

1шт.

84

9410356

PLUG

7/16-20 hex-hd o-ring boss

5шт.

85

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

5шт.

86

23178R1

O-RING,0.07" Thk x 1.051" ID, -23, Cl 5, 75 Duro

-023, 70 Duro, 1.051" ID x .070" Thk

1шт.

87

404711R1

BUSHING

control shaft

1шт.

88

404783R1

SPACER

control valve handle

1шт.

89

527557R1

SCREW, 6/32 x 1/4 set

1шт.

90

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

91

394200R91

BEARING ASSY,1.0005" ID x 2.3442" OD x 0.923, 0.72"

ASSY, drive shaft rear

1шт.

92

394181R91

BEARING ASSY,1.563" ID x 3.1572" OD x 1.1593, 0.9375"

ASSY, drive shaft front

1шт.

93

539942R1

KIT, control valve and spool

1шт.

13-444

CAPSCREW,Hex, 1/4" - 20 x 2 3/4", Gr 5

SCREW, 1/4-20 x 2-3/4 hex-hd cap

4шт.

179806

BOLT,Hex, 1/4" - 20 x 2 1/4", Gr 5

SCREW, 1/4-20 x 2-1/4 hex-hd cap

5шт.

385180R1

WASHER

9/32 x 1/2 x .065

9шт.

94

444687

PLUG,Hex Soc, 1/8"-27

Automotive, Pipe Hex Soc, 1/8"-27

1шт.

95

533858R1

GASKET

charge pump

1шт.

96

394825R1

DOWEL

PIN, 5/8 x 5/8 dowel

1шт.

97

527558R1

GASKET, spring housing

1шт.

98

194298

RING, retaining

1шт.

99

527559R1

WASHER

1шт.

100

527560R1

GUIDE, spring

2шт.

101

527561R1

SPRING, centering

1шт.

102

527562R1

HOUSING, spring

1шт.

103

527563R1

NUT, 1/4-28 lock

1шт.

104

527564R1

SPACER

1шт.

105

527565R1

SCREW, 1/4-28 x 3-1/2

1шт.

527549R91

VALVE ASSY, control, Includes ref nos. 49, 52, 57, 58, 60 thru 74, 76, 77, 87, 89, 93, and 97 thru 105

1шт.
