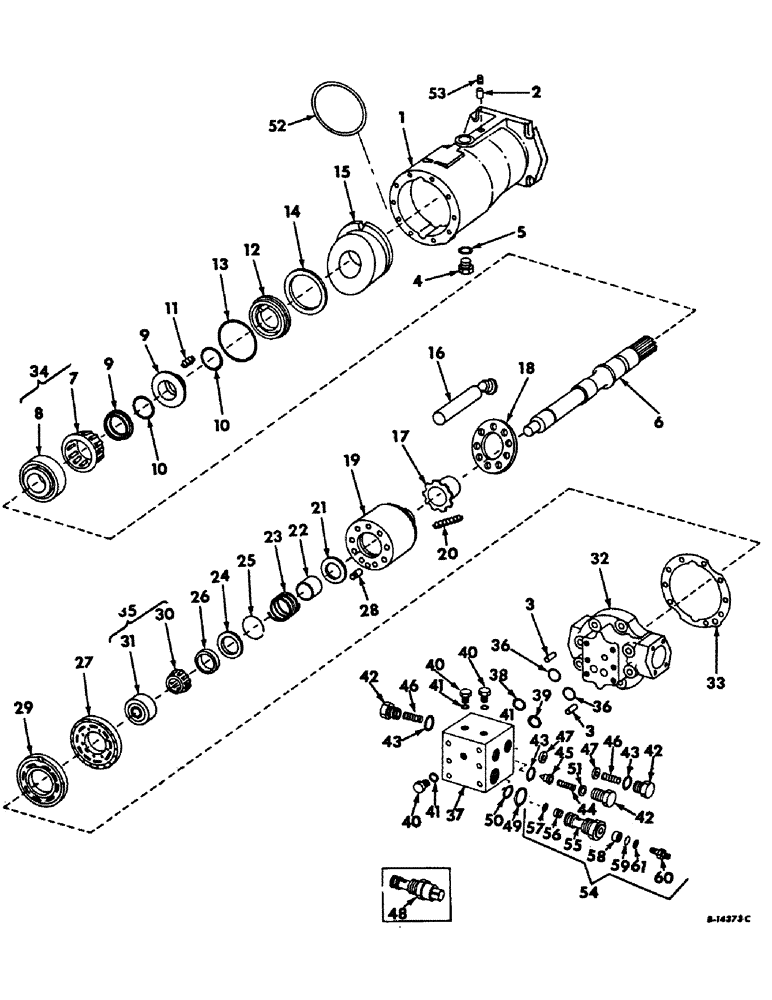

Запчасти Case IH 403 (148) - HYDRAULIC MOTOR ASSY, FOR HYDROSTATIC GROUND DRIVE (35) - HYDRAULIC SYSTEMS

150620C91

MOTOR ASSY, ground drive, For combines w/o foot-n-inch control

1шт.

403346R92

MOTOR

ASSY, ground drive, For combines w/foot-n-inch control

1шт.

1

394148R1

HOUSING, hyd motor

1шт.

2

394825R1

DOWEL

PIN, 5/16 x 5/8 dowel

1шт.

3

21061R1

DOWEL,3/8" x 1/2"

PIN, 3/8 x 1/2 dowel

2шт.

4

9410360

PLUG

7/8-14 C-Z str-thd

1шт.

5

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32

1шт.

6

394149R1

SHAFT, hyd motor drive

1шт.

7

BEARING, cone, Not serviced separately order ref no. 34, 394150R91

1шт.

8

BEARING, cup, Not serviced separately order ref no. 34, 394150R91

1шт.

9

NOT USED THIS APPLICATION

1шт.

10

26078R1

O-RING,-129, Cl 7, 1.549" ID x .103" Thk

1-9/16 x 1-3/4 x 3/32

2шт.

11

393882R1

SPRING

dr shaft face seal retainer

6шт.

12

393881R91

RETAINER

ASSY, drive shaft face seal

1шт.

13

707220R1

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

3 x 3-1/4 x 1/8

1шт.

14

393883R1

SNAP RING,3.346", Int, #334

Ring, Snap, , drive shaft face seal 3.346", Int, #334

1шт.

15

394152R1

PLATE

SWASHPLATE, hyd motor

1шт.

16

539256R1

PISTON ASSY

cyl block

9шт.

17

3974154R1

GUIDE, cyl block piston slipper

1шт.

18

394155R1

RETAINER

cyl block piston slipper

1шт.

19

394156R91

CYLINDER BLOCK

BLOCK ASSY, piston cyl

1шт.

20

394157R1

SPRING

piston cyl block

9шт.

21

394158R1

SEAT

piston cyl block spring

1шт.

22

394159R1

GUIDE

BUSHING, drive shaft rear spring

1шт.

23

532302R1

SPRING

drive shaft rear

1шт.

24

394161R1

RETAINER

drive shaft rear spring

1шт.

25

21015R1

SNAP RING,#212, 2.217, Int, Spiral

RING, dr shaft rear spring retainer

1шт.

26

394162R1

RING

cyl block brg plate pilot

1шт.

27

404201R1

PLATE

cyl block brg

1шт.

28

394164R1

PIN

cyl block brg plate

1шт.

29

530768R1

LARGE PLATE

PLATE, cyl block valve

1шт.

30

BEARING, cone, Not serviced separately order ref no. 35, 394166R91

1шт.

31

BEARING, cup, Not serviced separately order ref no. 35, 394166R91

1шт.

32

530729R1

COVER MOTOR REAR END

1шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3шт.

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

5шт.

394881R1

WASHER

13/32 x 11/16 x .106

9шт.

33

394170R1

GASKET

motor rear end cover

1шт.

34

394150R91

BEARING, ROLLER

BEARING ASSY, drive shaft front

1шт.

35

394166R91

BEARING ASSY,0.75" ID x 2.125" OD x 0.878, 0.625"

BEARING ASSY, drive shaft rear pilot

1шт.

36

393886R1

WASHER

WASHER, manifold valve

2шт.

394171R91

VALVE

ASSY, hyd motor manifold, less relief valve, Includes ref nos 37 through 46 and 51

1шт.

186271

SCREW,Hex, 5/16" - 18 x 3 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3 3/4", G5

6шт.

394880R1

WASHER

11/32 x 19/32 x .083

6шт.

37

529426R1

HOUSING

AND SPOOL ASSY, manifold valve

1шт.

38

610547C1

O-RING,0.07" Thk x 0.864" ID, -20, Cl 7, 75 Duro

7/8 x 1 x 1/16 small

1шт.

39

383219R1

O-RING,0.924" ID x 0.103" Width

15/16 x 1-1/8 x 3/32 large

2шт.

40

9410356

PLUG

7/16 manifold housing

3шт.

41

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

3шт.

42

394173R1

PLUG

manifold shuttle valve

3шт.

43

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32

3шт.

44

394174R1

SPRING

manifold relief valve

1шт.

45

394175R1

PISTON

manifold relief valve

1шт.

46

394176R1

SPRING

manifold shuttle valve

2шт.

47

394177R1

WASHER

manifold shuttle valve

2шт.

48

394178R91

VALVE ASSY, high pressure relief, For use w/150620C91 motor assy

2шт.

49

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1-3/64 x 1-7/32 x 7/64

2шт.

50

20947R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

13/16 x 1 x 3/32

2шт.

51

394279R91

KIT

PACKAGE, relief valve shim

1шт.

52

404197R1

SHIM

motor shaft rear brg .010

1шт.

53

444687

PLUG,Hex Soc, 1/8"-27

Pipe Hex Soc, 1/8"-27

1шт.

54

402626R92

VALVE

ASSY, high pressure relief, Includes ref nos. 55 thru 61, For use w/403346R92 motor assy

1шт.

55

VALVE, relief, Not serviced separately order ref no. 54, 402626R92

1шт.

56

SPRING, return, Not serviced separately order ref no. 54, 402626R92

1шт.

57

RING, retainer, Not serviced separately order ref no. 54, 402626R92

1шт.

58

402629R1

BUSHING

ball guide

1шт.

59

17008R1

BALL,1/4" Dia

Chrome-Steel 1/4" Dia

1шт.

60

402630R2

CONNECTOR, ELEC

CONNECTOR, 37 deg flared tube

1шт.

61

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube

1шт.

393884R91

KIT

PACKAGE, manifold valve housing seal, Consists of

1шт.

393886R1

WASHER

WASHER

2шт.

383219R1

O-RING,0.924" ID x 0.103" Width

2шт.

610547C1

O-RING,0.07" Thk x 0.864" ID, -20, Cl 7, 75 Duro

1шт.

393885R91

GASKET KIT

PACKAGE, relief valve seal, Consists of

1шт.

393887R1

BACK-UP RING

RING

4шт.

20947R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

2шт.

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

2шт.

403072R92

O-RING KIT

o-ring and seal, Consists of

1шт.

26078R1

O-RING,-129, Cl 7, 1.549" ID x .103" Thk

2шт.

393882R1

SPRING

6шт.

707220R1

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

1шт.
