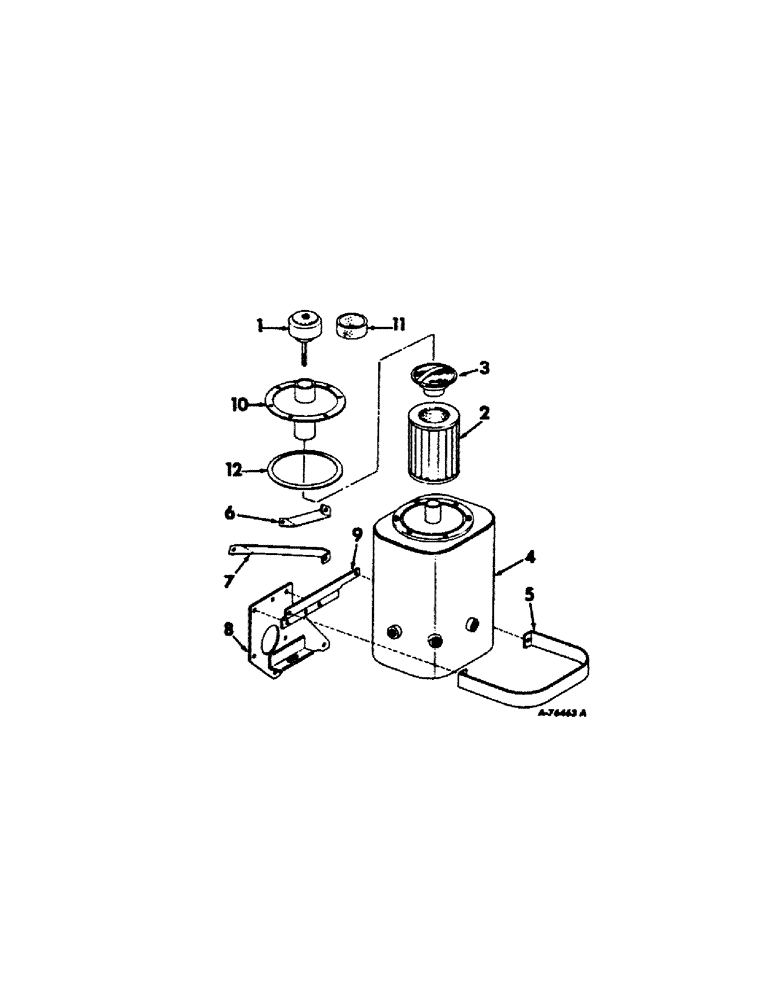

Запчасти Case IH 403 (146[1]) - HYDRAULIC RESERVOIR FOR HYDROSTATIC GROUND DRIVE (35) - HYDRAULIC SYSTEMS

172003C91

RESERVOIR ASSY, Includes ref. nos. 1 thru 4 and 10 thru 12

1шт.

1

167461C91

CAP

BREATHER CAP AND DIPSTICK ASSY, Includes ref. no. 11

1шт.

2

386120R92

CARTRIDGE ASSY

1шт.

3

386121R92

VALVE

ASSY, reservoir

1шт.

4

BODY, reservoir, Order 160993C91 reservoir assy

1шт.

5

167940C1

SUPPORT

STRAP, reservoir

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 C-Z hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

6

634583R1

BRACE, reservoir, For use w/diesel engine

1шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

3/8 x 3/4 hex-hd mach

1шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

7

631936R1

BRACE, reservoir, For use w/gas engine

1шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

3/8 x 3/4 hex-hd mach

1шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

8

167938C1

SUPPORT ASSY, reservoir

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

NLS

NO LONGER SERVICED

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

9

167941C1

SUPPORT, reservoir

1шт.

10

172004C1

COVER ASSY

1шт.

11

167852C1

ELEMENT, filter

1шт.

12

21295R1

O-RING,5.725" ID x 6.275" OD x 0.275"

5-3/4 x 6-1/4 x 1/4

1шт.
