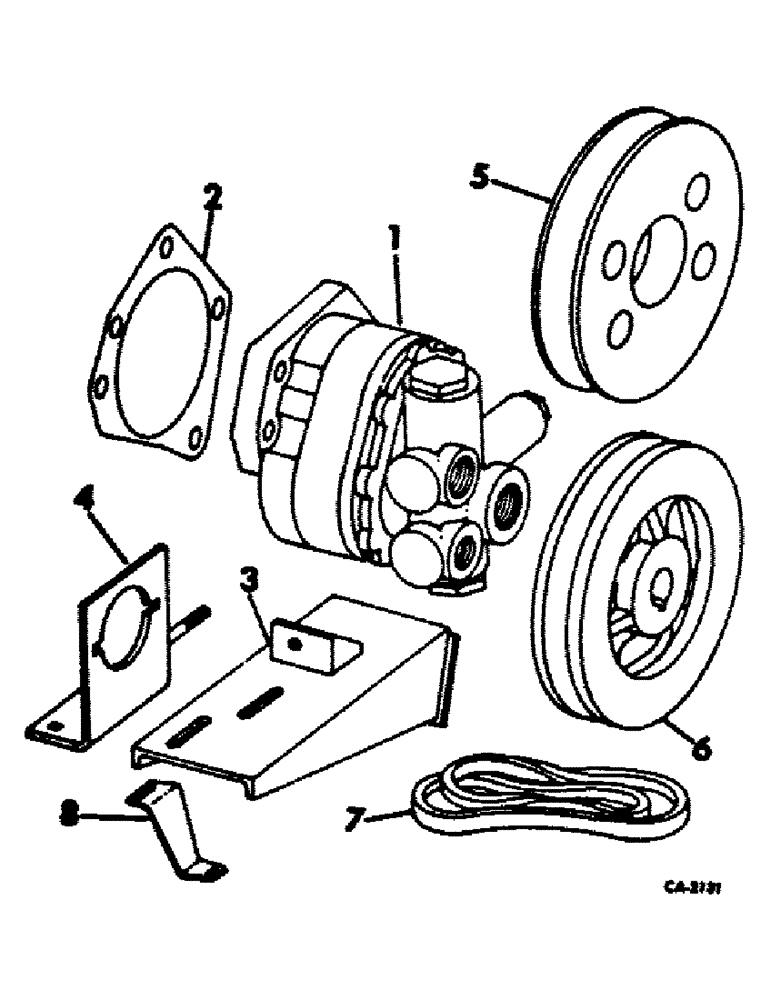

Запчасти Case IH 403 (145) - PLATFORM HYDRAULIC LIFT PUMP, FULL LEVELING (35) - HYDRAULIC SYSTEMS

1

631143R92

PUMP

ASSY, hydraulic

1шт.

632019R1

LOCK WASHER,3/8"

L.H. 3/8"

1шт.

Q5035

WASHER

17/32 x 1 x 16 ga

1шт.

2

632851R1

GASKET

flange

1шт.

3

628527R91

SUPPORT W/PLATE, hydraulic lift pump anchor

1шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 hex-hd mach

3шт.

102635

NUT,3/8"-16, G5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

4

633077R91

PLATE W/BOLT, hydraulic lift pump mounting tightener

1шт.

7/16 X 1-1/2 CRG BOLT W/NUT

2шт.

3/8 X 1-1/4 CRG BOLT W/NUT

2шт.

7/16 LOCK WASHER

2шт.

3/8 LOCK WASHER

2шт.

W6652

WASHER

15/32 X 1 X 16 GA WASHER

4шт.

7/16 NUT

1шт.

5

626565R2

SHEAVE, hydraulic lift pump drive, Not hydraulic reel drive

1шт.

5

935675R2

SHEAVE, hydraulic lift pump drive, For hydraulic reel drive

1шт.

3/8 X 1-1/4 CAP SCREW

4шт.

3/8 LOCK WASHER

4шт.

6

633345R1

SHEIVE, hydraulic lift pump driven

1шт.

7

164099C91

BELT, hydraulic lift pump drive

1шт.

8

935369R1

BRACE, platform lift pump, gasoline, Diesel serial no. 1322 and below

1шт.

8

152535C1

BRACE, platform lift pump, Diesel serial no. 1323 and above

1шт.

654325R92

KIT ASSY, back plate repair, Consists of

1шт.

DISC

1шт.

O-RING, 3/32 x 7/16

1шт.

O-RING, 3/32 x 5/8

1шт.

O-RING, 1/16 x 11/16

3шт.

O-RING, 3/32 x 7/8

1шт.

PLATE

1шт.

PLUG, 9/16-18UNF

1шт.

PLUG, hex.

2шт.

POPPET

1шт.

SEAT

1шт.

SHIM

1шт.

SLEEVE AND SPOOL ASSY

1шт.

SPRING, relief valve

1шт.

SPRING

1шт.

WASHER

1шт.

169499C1

KIT ASSY, major seal repair, Consists of

1шт.

SPRING

2шт.

SEAL, diaphram

1шт.

DIAPHRAM

1шт.

GASKET, backup

1шт.

GASKET, protector

1шт.

SEAL

1шт.

GASKET

1шт.

O-RING, 3/32 x 7/16

1шт.

O-RING, 3/32 x 5/8

1шт.

BALL, 7/32 steel

2шт.

O-RING, 1/16 x 3

1шт.

O-RING, 3/32 x 7/8

1шт.

PLATE, thrust

1шт.
