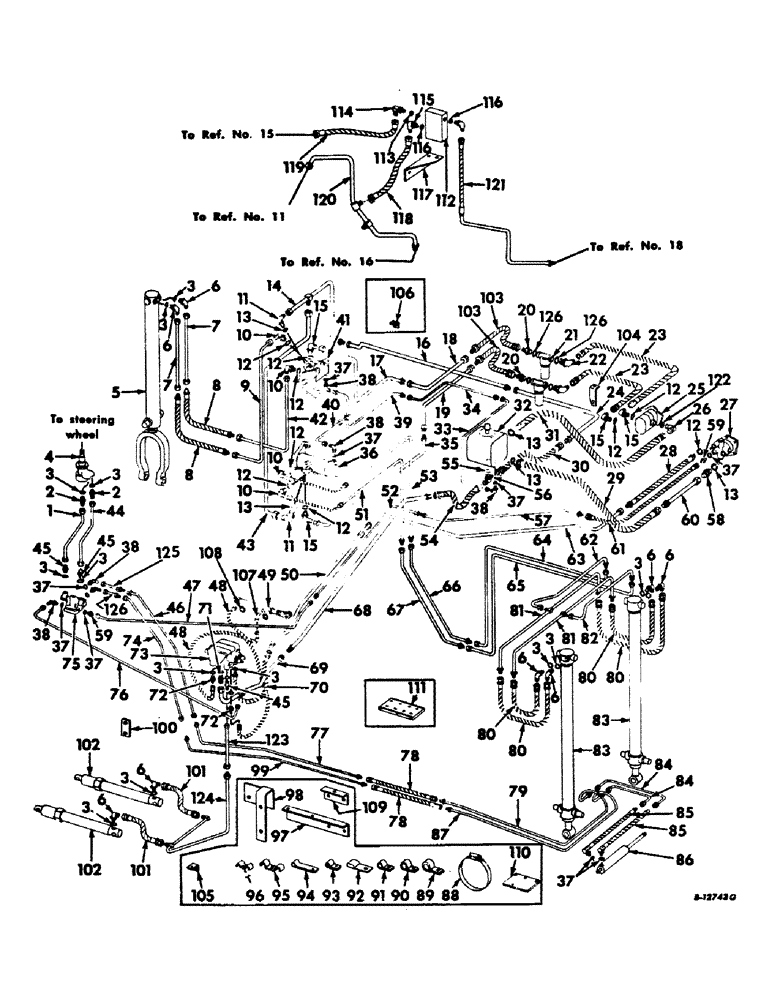

Запчасти Case IH 403 (136) - HYDRAULIC DIAGRAM, FULL LEVELING, NOT HYDROSTATIC GROUND DRIVE (35) - HYDRAULIC SYSTEMS

1

588537R11

TUBE W/NUT AND SLEEVE ASSY, steering hand pump to valve pressure, RH, Serial no. 940 and below

1шт.

1

939252R11

PIPE ASSY, steering hand pump to valve pressure, RH, Serial no. 941 and above

1шт.

2

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR

2шт.

3

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

17шт.

4

378578R95

HYDRAULIC STEERING

PUMP ASSY, steering hand, For components see list of parts under details of hand steering pump

1шт.

5

583894R92

CYLINDER ASSY, side leveling, For components see list of parts under details of side leveling cylinder

1шт.

6

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

8шт.

7

628675R11

TUBE W/NUT AND SLEEVE ASSY, side leveling cylinder upper 0.5" OD, 19.5" Length

1шт.

8

563941R92

HOSE ASSY, leveling cylinder

2шт.

9

628722R11

TUBE W/NUT AND SLEEVE ASSY, side leveling pressure extension

1шт.

10

936450R91

ELBOW,90 Degree, 3/4"-16, 37 Degree x 7/8"-14, O-Ring

4шт.

11

9410979

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

2шт.

12

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

9шт.

13

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Serial no. 940 and below

9шт.

13

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

hydraulic reservoir, Serial no. 941 and above

6шт.

14

628688R91

TUBE W/NUT AND SLEEVE ASSY, leveling return front, Serial no. 805 and below

1шт.

15

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

4шт.

16

628691R11

TUBE W/NUT AND SLEEVE ASSY, leveling return center 0.75" OD, 46.68, 17.68" Length

1шт.

17

628693R11

TUBE W/NUT AND SLEEVE ASSY, filter to side leveling valve front, Serial no. 805 and below

1шт.

18

628678R11

TUBE W/NUT AND SLEEVE ASSY, filter to side leveling valve rear 0.625" OD, 36.56, 11.88" Length

1шт.

19

588529R11

TUBE W/NUT AND SLEEVE ASSY, filter to rear leveling valve 0.625" OD, 34.55" Length

1шт.

20

573206R1

HYD CONNECTOR,7/8"-14, 37 Degree x 1 1/16"-12, O-Ring

CONNECTOR, hydraulic oil filter

2шт.

21

573200R91

FILTER

ASSY, hydraulic oil, For components see list of parts under details of hydraulic oil filter

2шт.

22

633460R91

ELBOW,90 Degree, 7/8"-14, 37 Degree x 1 1/16"-12, O-Ring

hydraulic oil filter

2шт.

23

309135R91

HOSE ASSY, Serial Range: pump-filter

2шт.

24

628692R11

TUBE W/NUT AND SLEEVE ASSY, leveling return rear 0.75" OD, 31.12, 5.06" Length

1шт.

25

632862R91

PUMP ASSY, hydraulic leveling, For component parts see list of parts under details of hydraulic leveling pump, Serial no. 940 and below

1шт.

25

154680C92

PUMP

ASSY, hydraulic leveling, For components see list of parts under details of hydraulic leveling pump, Serial no. 941 and above

1шт.

26

9402867

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 3/4"-14, NPTF

Serial no. 940 and below

1шт.

26

9410981

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, O-Ring

Serial no. 941 and above

1шт.

27

631143R92

PUMP

ASSY, hydraulic lift, For components see list of parts under details of hydraulic pump

1шт.

28

573900R91

HOSE ASSY, pump pressure

1шт.

29

628438R91

HOSE ASSY, pump suction, Serial no. 940 and below

1шт.

29

154820C91

HOSE ASSY, pump suction, Serial no. 941 and above

1шт.

30

633301R91

HOSE ASSY, leveling return

1шт.

31

629289R91

HOSE ASSY, leveling suction, Serial no. 940 and below

1шт.

31

154820C91

HOSE ASSY, leveling suction, 36 in., Serial no. 941 and above

1шт.

32

588295R92

RESERVOIR ASSY, hydraulic oil, For components see list of parts under hydraulic oil reservoir, Serial no. 940 and below

1шт.

32

154747C92

RESERVOIR ASSY, hydraulic oil, For components see list of parts under hydraulic oil reservoir, Serial no. 941 and above

1шт.

33

628720R11

TUBE W/NUT AND SLEEVE ASSY, rear bleed

1шт.

34

628719R11

TUBE W/NUT AND SLEEVE ASSY, leveling valve bleed center

1шт.

35

628723R11

TUBE W/NUT AND SLEEVE ASSY, filter to rear leveling valve front, Serial no. 940 and below

1шт.

35

150908C91

PIPE ASSY, filter to rear leveling valve front, Serial no. 941 and above

1шт.

36

573902R93

VALVE ASSY, rear leveling, For components see list of parts listed under details of rear leveling valve

1шт.

37

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

8шт.

38

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

6шт.

39

628684R11

TUBE W/NUT AND SLEEVE ASSY, front bleed

1шт.

40

628741R11

TUBE W/NUT AND SLEEVE ASSY, side to rear leveling valve bleed 0.375" OD, 14.81, 1.84" Length

1шт.

41

573902R93

VALVE ASSY, side leveling, For components see list of parts under details of side leveling valve

1шт.

42

628724R11

TUBE W/NUT AND SLEEVE ASSY, side leveling pressure return

1шт.

43

588536R11

TUBE W/NUT AND SLEEVE ASSY, leveling return cross over

1шт.

44

633210R11

TUBE W/NUT AND SLEEVE ASSY, steering hand pump to valve pressure, LH, Serial no. 940 and below

1шт.

44

939254R11

PIPE ASSY, steering hand pump to valve pressure, LH, Serial no. 941 and above

1шт.

45

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR

3шт.

46

633208R11

TUBE W/NUT AND SLEEVE ASSY, steering valve to cylinder lower front

1шт.

47

588533R11

TUBE W/NUT AND SLEEVE ASSY, steering flow divider to valve front, Serial no. 940 and below

1шт.

47

939256R11

PIPE ASSY, steering flow divider to valve front, Serial no. 941 and above

1шт.

48

574499R91

HOSE ASSY, propulsion control cylinder

2шт.

49

154132C91

CYLINDER BLOCK

CYLINDER ASSY, propulsion control, For components see list of parts under details of propulsion control cylinder

1шт.

50

627441R11

TUBE W/NUT AND SLEEVE ASSY, lower pressure 0.625" OD, 72, 5.43" Length

1шт.

51

628679R11

TUBE W/NUT AND SLEEVE ASSY, rear leveling pressure return front, Serial no. 805 and below

1шт.

51

150909C91

TUBE ASSY, rear leveling pressure return front, Serial no. 806 and above

1шт.

52

588532R11

TUBE W/NUT AND SLEEVE ASSY, steering flow divider to valve center 0.375" OD, 45.81, 7.22" Length

1шт.

53

628680R11

TUBE W/NUT AND SLEEVE ASSY, rear leveling pressure extension front, Serial no. 805 and below

1шт.

53

150910C91

TUBE ASSY, rear leveling pressure extension front, Serial no. 806 and above

1шт.

54

633301R91

HOSE ASSY, platform lift return

1шт.

55

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

1шт.

56

574873R91

TEE, reservoir return

1шт.

57

628685R11

TUBE W/NUT ASSY, steering flow divider to valve rear

1шт.

58

574018R1

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 1/16"-12, O-Ring

CONNECTOR

1шт.

59

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR

2шт.

60

628690R11

TUBE W/NUT AND SLEEVE ASSY, platform lift suction, Serial no. 940 and below 0.75" OD, 15.31" Length

1шт.

60

154821C91

TUBE ASSY, platform lift suction, Serial no. 941 and above

1шт.

61

632454R91

HYDRAULIC HOSE,0.31" ID x 30.00", SAE 100R1 Class B

HOSE ASSY, steering lower

1шт.

62

628677R11

TUBE W/NUT AND SLEEVE ASSY, cylinder hose to cross over tube front

1шт.

63

588531R11

TUBE W/NUT AND SLEEVE ASSY, rear pressure

1шт.

64

628683R11

TUBE W/NUT AND SLEEVE ASSY, rear leveling valve to cylinder top

1шт.

65

628682R11

TUBE W/NUT AND SLEEVE ASSY, rear leveling valve to cylinder bottom

1шт.

66

628681R11

TUBE W/NUT AND SLEEVE ASSY, rear leveling center upper 0.5" OD, 82.68, 22.44" Length

1шт.

67

628676R11

TUBE W/NUT AND SLEEVE ASSY, rear leveling center lower 0.5" OD, 81.5, 25.38" Length

1шт.

68

588530R11

TUBE W/NUT AND SLEEVE ASSY, rear return 0.75" OD, 53.06, 6.62" Length

1шт.

69

588538R91

TUBE ASSY, front return, Not for use w/hyd reel drive

1шт.

69

935673R91

TUBE ASSY, front return, For use w/hyd reel drive

1шт.

70

631163R91

HOSE ASSY.

HOSE ASSY, valve pressure

1шт.

71

587577R1

CONNECTION,1 1/16"-12, 37 Degree x 3/4"-16, O-Ring

CONNECTOR

1шт.

72

629349R1

HYD CONNECTOR,7/16"-20, 37 Degree x 3/4"-16, O-Ring

CONNECTOR

2шт.

73

156201C92

LOCK VALVE

VALVE ASSY, propulsion drive and platform lift, For components see list of parts under details of propulsion drive and platform lift valve

1шт.

74

588354R11

TUBE W/NUT AND SLEEVE ASSY, steering valve to cylinder upper front, Serial no. 940 and below

1шт.

74

588534R11

PIPE ASSY, steering valve to cylinder upper front, Serial no. 941 and above

1шт.

75

379645R93

VALVE

ASSY, steering, For components see list of parts under details of steering valve, Serial no. 1089 and below

1шт.

75

527492R91

LOCK VALVE

VALVE ASSY, steering, For components see list of parts under details of steering valve, Serial no. 1090 and above

1шт.

76

628686R11

TUBE W/NUT AND SLEEVE ASSY, steering valve return, Serial no. 940 and below

1шт.

76

939253R11

PIPE ASSY, steering valve return, Serial no. 941 and above

1шт.

77

633209R11

TUBE W/NUT AND SLEEVE ASSY, steering front bail lower

1шт.

78

632455R91

HOSE

ASSY, cylinder to lower tubing

2шт.

79

588535R11

TUBE W/NUT AND SLEEVE ASSY, steering rear bail lower

1шт.

80

587582R91

HOSE ASSY.

HOSE ASSY, rear leveling cylinder

4шт.

81

588745R11

TUBE W/NUT AND SLEEVE ASSY, rear cylinder cross over 1" OD, 41, 10.75" Length

2шт.

82

588746R11

TUBE W/NUT AND SLEEVE ASSY, cylinder hose to cross over tube rear

1шт.

83

633312R91

CYLINDER ASSY, rear leveling, For components see list of parts listed under details of rear leveling cylinder

1шт.

84

654600R11

TUBE W/NUT AND SLEEVE ASSY, axle to cylinder to hose steering

2шт.

85

587575R91

HYDRAULIC HOSE,0.31" ID x 24.00", SAE 100R1

HOSE ASSY, power steering tube to steering cylinder

2шт.

86

633309R91

CYLINDER ASSY, steering, For components see list of parts under detail of steering cylinder

1шт.

87

633207R11

TUBE W/NUT AND SLEEVE ASSY, steering rear bail upper

1шт.

88

427313R91

HOSE CLAMP,#116, 6.88/7.75 Type F Worm

CLAMP ASSY, rear bail tube

1шт.

88

274090R91

HOSE CLAMP,3.75/4.63 Type F Worm

CLAMP ASSY, side leveling cylinder

1шт.

88

274089R91

CLAMP

ASSY, platform lift tube

1шт.

89

573099R2

CLIP

hydraulic tube leveling return

7шт.

90

567895R2

CLIP, hydrualic tube

9шт.

91

587501R2

CLAMP

CLIP, hydraulic tube

15шт.

5/16 X 3/4 C-Z CRG BOLT W/NUT

2шт.

5/16 C-Z LOCK WASHER

2шт.

92

56522R1

CLIP, valve to cylinder front tube

2шт.

93

935765R1

CLIP, level valve bleed center tube

1шт.

93

589980R2

CLIP

steering cylinder tube and hose

2шт.

5/16 X 1 MACH BOLT W/NUT

1шт.

5/16 LOCK WASHER

1шт.

94

935765R1

CLIP, front pressure steering tube

2шт.

95

588322R1

CLIP

5шт.

5/16 X 1-1/4 MACH BOLT W/NUT

1шт.

5/16 LOCK WASHER

1шт.

169504

5/16 X 3/4 SLT-PAN-HD TAPPING MACH SCREW

1шт.

96

561529R2

CLIP, steering valve to cylinder bail tube

5шт.

1/4 X 3/4 MACH BOLT W/NUT

4шт.

1/4 LOCK WASHER

4шт.

97

633127R1

BRACKET, leveling system pressure tube

1шт.

98

633128R1

BRACKET, leveling tube front, Serial no. 805 and below

1шт.

99

633206R11

TUBE W/NUT AND SLEEVE ASSY, steering front bail upper

1шт.

100

151799C91

PIPE ASSY, steering valve to cylinder front extension

1шт.

101

587582R91

HOSE ASSY.

HOSE ASSY, platform lift cylinder

2шт.

102

570799R91

CYLINDER ASSY, platform lift, Optional for 570801R92 and 383765R91 cylinder assy

1шт.

102

570801R92

CYLINDER ASSY, platform lift, Optional for 570799R91 and 383762R91 cylinder assy

1шт.

102

383762R91

CYLINDER BLOCK

CYLINDER ASSY, platform lift, Optional for 570801R92 and 570801R92 cylinder assy

1шт.

103

558412R91

HOSE

ASSY, hydraulic oil filter

2шт.

104

567852R1

BRACKET, rear level rear tube clip

1шт.

5/16 X 3/4 MACH BOLT W/NUT

2шт.

5/16 LOCK WASHER

2шт.

105

654706R1

STRIP, platform lift upper pressure and power steering tube clip

1шт.

5/16 X 1 CAP SCREW

2шт.

5/16 NUT

2шт.

5/16 LOCK WASHER

2шт.

106

564563R1

BRACKET, rear level tube clip, on cylinder beater angle right side

1шт.

3/8 X 1 CAP SCREW

1шт.

7/8 NUT

1шт.

3/8 LOCK WASHER

1шт.

107

105422

ELBOW UNION

ELBOW, 1/8-90 deg street

1шт.

108

NOT USED

1шт.

109

633126R1

BRACKET, rear leveling tube

2шт.

5/16 X 3/4 MACH BOLT W/NUT

4шт.

5/16 LOCK WASHER

4шт.

110

150860C1

BRACKET, leveling tube front, Serial no. 806 and above

1шт.

1/4 X 3/4 CRG BOLT W/NUT

3шт.

1/4 LOCK WASHER

3шт.

111

150874C91

CLAMP ASSY, hydraulic tube holder, Serial no. 806 and above

2шт.

112

150886C91

FLOW DIVIDER ASSY, For components see list of parts listed under details of flow divider, Serial no. 806 and above

1шт.

113

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Serial no. 806 and above

1шт.

114

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

Serial no. 806 and above

1шт.

115

936450R91

ELBOW,90 Degree, 3/4"-16, 37 Degree x 7/8"-14, O-Ring

Serial no. 806 and above

2шт.

116

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Serial no. 806 and above

2шт.

117

150861C1

SUPPORT, flow divider, Serial no. 806 and above

1шт.

1/4 X 2-1/4 CAP SCREW

2шт.

5/16 X 1 CAP SCREW

2шт.

1/4 NUT

2шт.

5/16 NUT

2шт.

1/4 LOCK WASHER

2шт.

5/16 LOCK WASHER

2шт.

118

347186R91

HOSE

ASSY, flow divider to leveling valve, Serial no. 806 and above

1шт.

119

150885R91

HOSE ASSY, flow divider to return tee, Serial no. 806 and above

1шт.

120

150864C91

TUBE ASSY, leveling return front, Serial no. 806 and above

1шт.

121

150887C91

TUBE ASSY, filter to side leveling valve front, Serial no. 806 and above

1шт.

122

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

hydraulic pump, Serial no. 941 and above

1шт.

123

154883C91

TUBE ASSY, platform lift cylinder upper

1шт.

124

154884C91

TUBE ASSY, platform lift cylinder lower

1шт.

125

151798C91

PIPE ASSY, steering valve to cylinder front extension, Serial no. 941 and above

1шт.

126

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

hyd oil filter

4шт.
