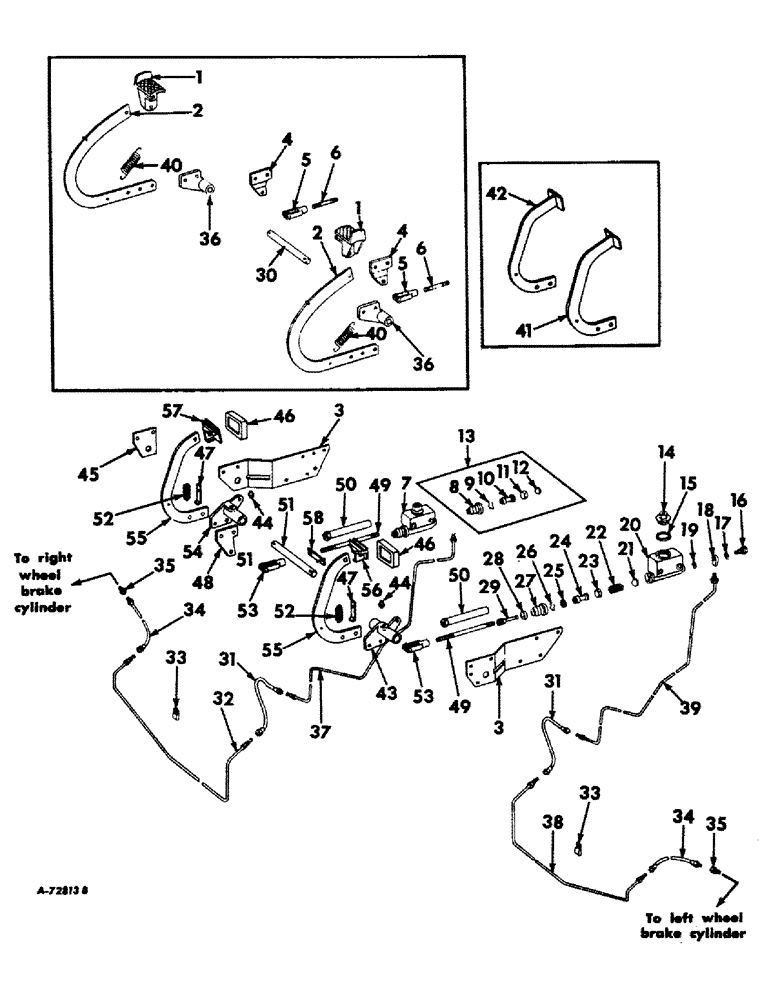

Запчасти Case IH 403 (098) - HYDRAULIC BRAKE PEDAL, CYLINDER AND TUBES (33) - BRAKES & CONTROLS

1

627510R1

PEDAL, wheel brake, Serial no. 805 and below

2шт.

2

627457R11

ARM W/KEY, wheel brake pedal, Serial no. 805 and below

2шт.

3/8 X 1-3/4 MACH BOLT W/NUT

4шт.

3/8 LOCK WASHER

4шт.

3

628362R1

SUPPORT, master cylinder, LH

1шт.

3

628363R11

SUPPORT W/STIFFENER, master cylinder, RH

1шт.

4

628364R1

ARM, master cylinder, LH, Serial no. 805 and below

1шт.

4

628365R1

ARM, master cylinder, RH, Serial no. 805 and below

1шт.

5

104038

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS, 3/8, Serial no. 805 and below

2шт.

6

571199R1

ROD, brake, Serial no. 805 and below

2шт.

7

559380R91

CYLINDER BLOCK

CYLINDER ASSY, master, Includes ref no. 14 through 29

2шт.

3/8 X 5-1/2 MACH BOLT W/NUT

2шт.

3/8 LOCK WASHER

1шт.

8

561954R1

BOOT

1шт.

9

561953R1

LOCKWIRE

1шт.

10

561950R91

PISTON

W/PROTECTOR ASSY

1шт.

11

561958R1

CUP

1шт.

12

561949R91

VALVE AND SEAT ASSY

1шт.

13

562917R91

KIT

ASSY, master cylinder, Includes ref no. 8 through 12

1шт.

14

561956R91

CAP

ASSY, filler

2шт.

15

92148H

GASKET

filler cap

2шт.

16

48165H

BANJO BOLT

FITTING, connection bolt tube

2шт.

17

48166H

WASHER

GASKET, inlet connection

2шт.

18

130998H

CONNECTOR, inlet

2шт.

19

561961R1

GASKET

inlet connection

2шт.

20

561947R1

TANK, supply

2шт.

21

561949R91

VALVE AND SEAT

2шт.

22

561948R91

SPRING AND RETAINER ASSY

2шт.

23

561958R1

CUP, cylinder

2шт.

24

561950R91

PISTON

W/PROTECTOR ASSY

2шт.

25

561952R1

PLATE, piston stop

2шт.

26

561953R1

LOCKWIRE, stop plate

2шт.

27

561954R1

BOOT, cylinder

2шт.

28

561951R1

CUP, secondary

2шт.

29

561955R91

PUSH BUTTON

ROD ASSY, push

2шт.

30

628366R1

SHAFT, brake arm pivot, Serial no. 805 and below

1шт.

1/4 X 1-1/2 COTTER PIN

2шт.

21868V

WASHER

29/32 X 1-1/2 X 16 GA WASHER

8шт.

31

567351R91

HOSE ASSY, brake inner

2шт.

32

571209R11

TUBE W/NUT ASSY, brake lower, LH

1шт.

222-1002

TUBE NUT,1/4" Tube, Inv Fl

NUT

2шт.

33

587501R2

CLAMP

CLIP, tube

2шт.

33

573674R1

CLIP

tube

6шт.

1/4 NUT

1шт.

5/16 X 1 MACH BOLT W/NUT

5шт.

1/4 X 1 SLT-RD-HD MACH SCREW

1шт.

1/4 LOCK WASHER

1шт.

5/16 LOCK WASHER

5шт.

17/32 X 1 X 16 GA WASHER

1шт.

34

571216R91

HOSE ASSY, brake outer

2шт.

35

571217R1

CONNECTOR, hose to wheel cylinder

2шт.

36

627513R1

PIVOT, wheel brake pedal arm, Serial no. 805 and below

2шт.

37

633212R11

TUBE W/NUT ASSY, brake upper, LH

1шт.

139397

TUBE

NUT

2шт.

38

571208R11

TUBE W/NUT ASSY, brake lower, RH

1шт.

139397

TUBE

NUT

2шт.

39

633211R11

TUBE W/NUT, brake upper, RH

1шт.

222-1002

TUBE NUT,1/4" Tube, Inv Fl

NUT

2шт.

40

2482A

SPRING

brake arm return, Serial no. 805 and below

2шт.

3/16 X 1-1/4 COTTER PIN

2шт.

41

939636R91

LEVER ASSY, wheel brake pedal left, Serial no., Serial Range: 806-1322

1шт.

3/8 X 1-1/2 MACH BOLT W/NUT

2шт.

3/8 LOCK WASHER

2шт.

42

938878R91

LEVER ASSY, wheel brake pedal right, Serial no., Serial Range: 806-1322

1шт.

3/8 X 1-1/2 MACH BOLT W/NUT

2шт.

3/8 LOCK WASHER

2шт.

43

939635R1

PIVOT, left wheel brake pedal, Serial no. 806 and above

1шт.

44

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , S/N 806 and above 1/8"-27 x .66 lg

2шт.

45

633468R1

PLATE, brake arm pivot shaft support, Serial no. 806 and above

1шт.

3/8 X 1 MACH BOLT W/NUT

1шт.

7/16 LOCK WASHER

1шт.

3/8 LOCK WASHER

1шт.

7/16 X 1 MACH BOLT W/NUT

1шт.

46

863426R1

PAD

brake pedal, Serial no. 806 and above

2шт.

47

938869R1

STRIP, wheel brake lower stop, Serial no. 806 and above

2шт.

5/16 X 3/4 MACH BOLT W/NUT

2шт.

5/16 LOCK WASHER

2шт.

48

939634R1

BRACKET, right brake stud attaching, Serial no. 806 and above

1шт.

49

939632R1

STUD, brake upper, Serial no. 806 and above

2шт.

425-157

JAM NUT,Jam, 7/16"-20, G5

2шт.

50

939633R11

PIPE ASSY, brake upper stud

2шт.

51

938880R1

SHAFT

brake arm pivot, Serial no. 806 and above

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

21868V

WASHER

29/32 x 1-1/2 x 16 ga

8шт.

52

228

SPRING

brake arm return, Serial no. 806 and above

2шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

2шт.

53

117825

CLEVIS, hydraulic brake rod, Serial no. 806 and above

2шт.

3/32 x 1 cot. pin

2шт.

16618R1

CLEVIS PIN,7/16" x 1.190"

7/16 x 1-15/64 rod end pin

2шт.

54

938877R1

PIVOT, right wheel brake pedal arm, Serial no. 806 and above

1шт.

55

163429C1

LEVER, LH and RH wheel brake pedal, Serial no. 1323 and above

2шт.

17471R1

BOLT,Hex, 3/8" - 16 x 1 1/2"

3/8 x 1-1/2 hex-hd mach

2шт.

17496R1

BOLT,Hex, 3/8" - 16 x 1 3/4"

3/8 x 1-3/4 hex-hd mach

2шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

56

163426C1

PEDAL

left wheel brake lever, Serial no. 1323 and above

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 1 C-Z sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

14шт.

120388

3/8 C-Z med lock

1шт.

57

163427C1

PEDAL

right wheel brake lever, Serial no. 1323 and above

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 1 C-Z sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

NLS

NO LONGER SERVICED

3/8 C-Z med lock

1шт.

58

614251R11

BAR

PLATE ASSY LOCKING, Serial no. 1323 and above

1шт.

19938R1

PIN,1/8" x 7/8", Coiled

1шт.
