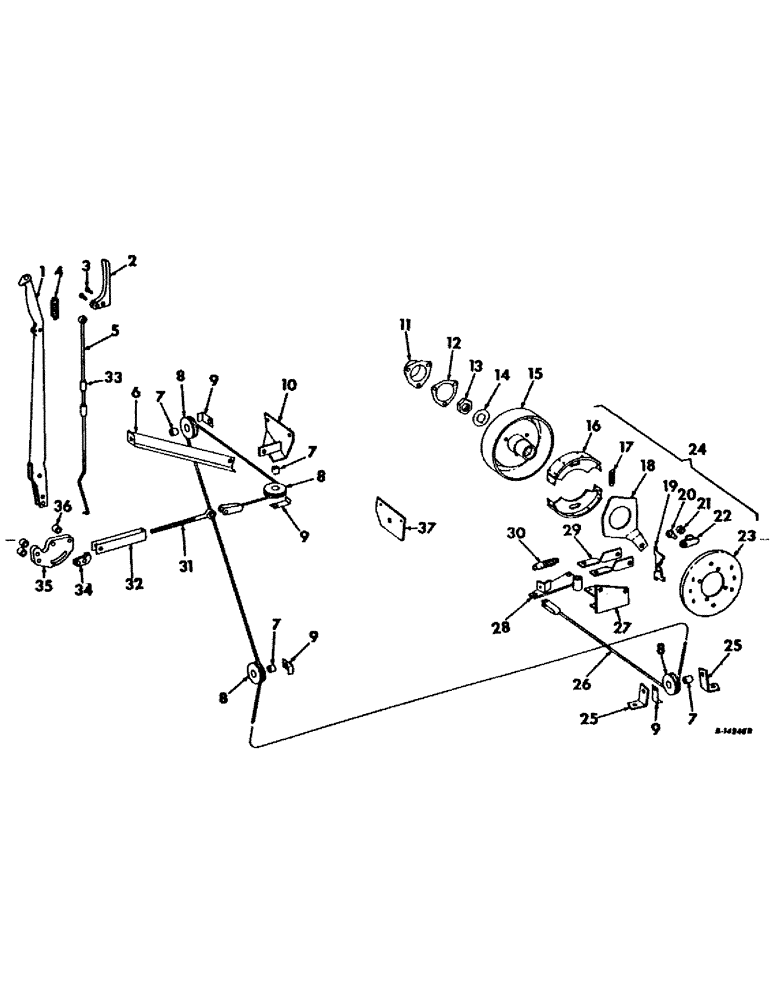

Запчасти Case IH 403 (046) - PARKING BRAKE LEVER AND TRANSMISSION BRAKE (33) - BRAKES & CONTROLS

1

169267R91

LEVER ASSY, parking brake control, Includes ref nos 2, 3, 4, 5, 33,34 & 35

1шт.

89531H

BOLT, Serial Range: lever-sector

2шт.

NUT, 3/4 NF hex.

2шт.

NUT, 3/8 NF hex-jam

2шт.

2

49654H

SPOON, pawl rod

1шт.

3

47168H

RIVET, pawl rod spoon

2шт.

184521R1

WASHER AT SPOON

1шт.

WASHER, 25/64 x 1-1/16 x .008 waved

1шт.

49656H

CAP, brake lever

1шт.

4

184239R1

SPRING, pawl rod spoon

1шт.

5

169170R21

ROD, Serial Range: lever-pawl

1шт.

6

935487R1

ANGLE, parking brake cable upper pulley

1шт.

3/8 X 3/4 MACH BOLT W/NUT

1шт.

3/8 X 1 MACH BOLT W/NUT

1шт.

3/8 LOCK WASHER

2шт.

7

566847R1

SPACER

BUSHING, parking brake cable sheave

4шт.

8

574696R1

SHEAVE, parking brake cable

4шт.

9

574699R1

RETAINER, parking brake cable, side leveling 3, full leveling 4

1шт.

1/2 X 1-1/2 MACH BOLT W/NUT

4шт.

1/2 LOCK WASHER

4шт.

17/32 X 1 X 16 GA WASHER

1шт.

10

935484R91

BRACKET W/STRAP, parking brake cable sheave upper

1шт.

3/8 X 1 MACH BOLT W/NUT

2шт.

3/8 LOCK WASHER

2шт.

11

49115D

CYLINDER END CAP

CAP, brake drum

1шт.

5/16 X 3/8 CAP SCREW

3шт.

12

49116D

GASKET,0.79mm Thk

brake drum

1шт.

13

382879R1

NUT

input drive shaft

1шт.

14

382900R1

LOCK WASHER

input drive lock

1шт.

15

383575R11

DRUM HUB

DRUM W/HUB, brake

1шт.

16

568091R91

BRAKE

SHOE W/LINING ASSY, brake, bonded

2шт.

17

165821R1

SPRING

brake shoe return

2шт.

18

568093R1

LEVER

brake shoe

1шт.

19

568087R1

BRACKET

BRAKE, abutment

2шт.

20

568090R1

RIVET, actuating pawl

2шт.

21

568094R1

ROLLER

brake shoe

1шт.

22

568088R1

NO LONGER SERVICED

PAWL, actuating

1шт.

23

568086R91

PLATE

ASSY, backing, Includes ref nos 19, 20 and 22

1шт.

24

568089R91

BRAKE

ASSY, transmission, Includes ref nos 16 throught 23

1шт.

25

935483R1

STRIP, parking brake lower LH idler, full leveling

1шт.

3/8 X 1 MACH BOLT W/NUT

2шт.

3/8 LOCK WASHER

2шт.

26

935491R91

CABLE, parking brake, For hydrostatic drive serial no. 501 and above, For propulsion drive serial no. 805 and below

1шт.

26

939716R91

CABLE ASSY, parking brake, For propulsion drive serial no. 806 and above

1шт.

4837S

HEADED PIN,3/8" x 1"

3/8 X 1 DLD PIN

2шт.

1/8 X 3/4 COT. PIN

2шт.

27

935475R91

BRACKET W/STRAP, parking brake lever

1шт.

3/16 X 1 COT. PIN

1шт.

1/2 X 2 DLD PIN

1шт.

28

935479R91

LEVER W/HUB, parking brake

1шт.

3/16 X 1 COT. PIN

1шт.

1/2 X DLD PIN

1шт.

29

935482R1

STRIP, parking brake lower

2шт.

1/8 X 3/4 COT. PIN

2шт.

48375

3/8 X 1 DLD PIN

2шт.

30

7076HA

SPRING

1шт.

31

629417R1

BOLT,3/8" - 16 x 7"

EYEBOLT

1шт.

3/8 NUT

2шт.

32

935488R1

CLEVIS, parking bearing brake cable, For propulsion drive

1шт.

32

167942C1

YOKE, parking brake cable, For hydrostatic drive

1шт.

1/8 X 1-1/2 COT. PIN

1шт.

S3631/2

PIN

3/8 X 1-1/4 DLD PIN

1шт.

33

184238R1

SLEEVE, anti-battle

2шт.

34

64972HA

PAWL, lever

1шт.

35

89531H

SECTOR, parking brake

1шт.

36

561277R1

SPACER,5/8" Tube x 1/2"

parking brake lever mounting

3шт.

37

167744C1

PLATE, parking brake cable pulley, For hydrostatic drive

1шт.
