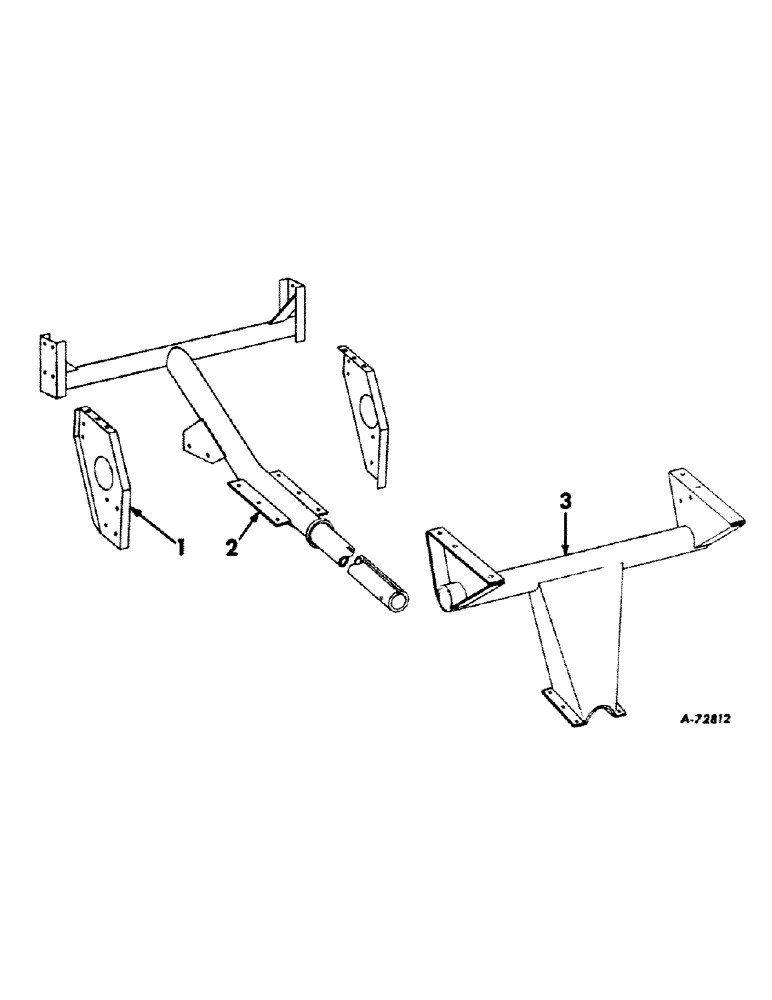

Запчасти Case IH 403 (095) - REAR AXLE MOUNTING TUBE AND SUPPORT, SIDE LEVELING (27) - REAR AXLE SYSTEM

1

628820R1

PLATE, rear axle side mounting LH

1шт.

1

628821R1

PLATE, rear axle side mounting RH

1шт.

2

633056R91

TUBE W/BRACKET, rear axle mounting

1шт.

1/2 X 1-1/2 MACH BOLT W/NUT

8шт.

5/8 X 5-1/2 MACH BOLT W/NUT

2шт.

1/2 LOCK WASHER

8шт.

5/8 LOCK WASHER

2шт.

3

628818R91

SUPPOPRT W/PIPE, rear end

1шт.

5/8 X 1-1/2 MACH BOLT W/NUT

5шт.

5/8 X 1-3/4 MACH BOLT W/NUT

7шт.

5/8 LOCK WASHER

12шт.
