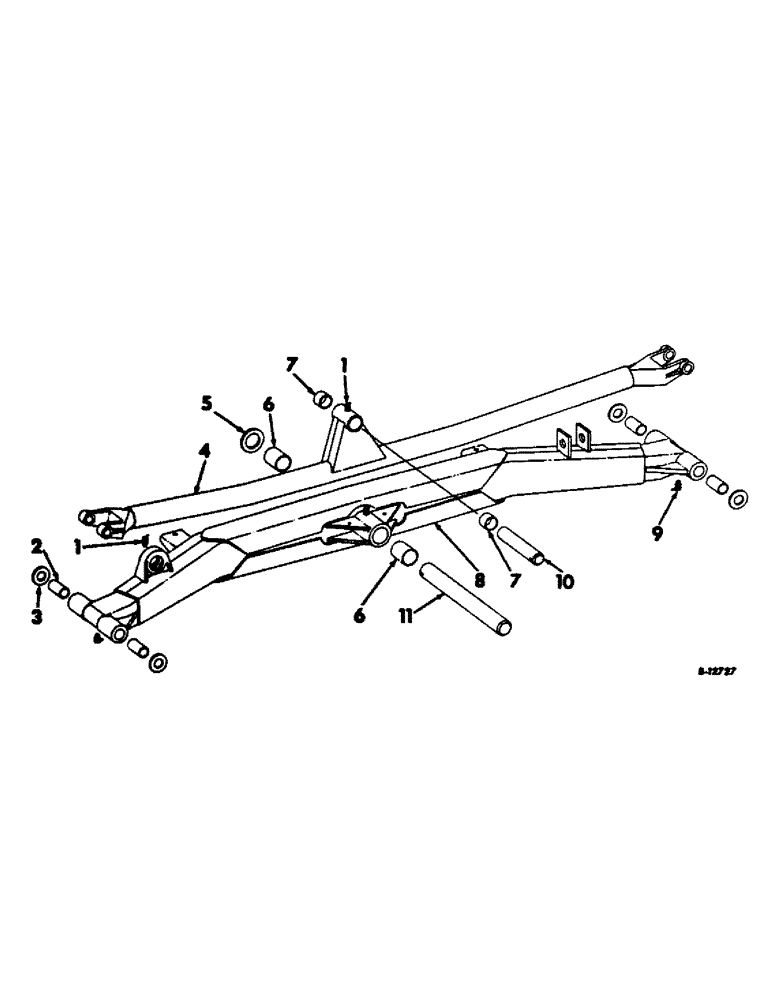

Запчасти Case IH 403 (048) - MAIN WHEEL, UPPER AND LOWER HALF AXLE (25) - FRONT AXLE SYSTEM

1

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING, 1/8 45 deg elbow lubrication

3шт.

2

574717R1

BUSHING, LARGE

BUSHING, lower axle end

4шт.

3

574727R1

WASHER, lower axle end thrust

4шт.

4

574728R91

AXLE W/BUSHING ASSY, main wheeel upper, Includes ref no. 7

1шт.

5/16 X 2-1/2 DLD PIN.

4шт.

1/8 X 3/4 COT. PIN

4шт.

5

574726R1

WASHER, lower axle thrust

1шт.

6

574718R1

BUSHING, LARGE

BUSHING, lower axle center tube

2шт.

7

587247R1

BUSHING, LARGE

BUSHING, main wheel upper axle pivot tube

2шт.

8

574708R92

AXLE W/BUSHING ASSY, main wheel lower, Includes ref nos. 2 and 6

1шт.

9

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8 90 deg elbow lubrication

2шт.

10

574735R1

SHAFT, upper axle

1шт.

11

165825C1

SHAFT, lower axle pivot

1шт.
