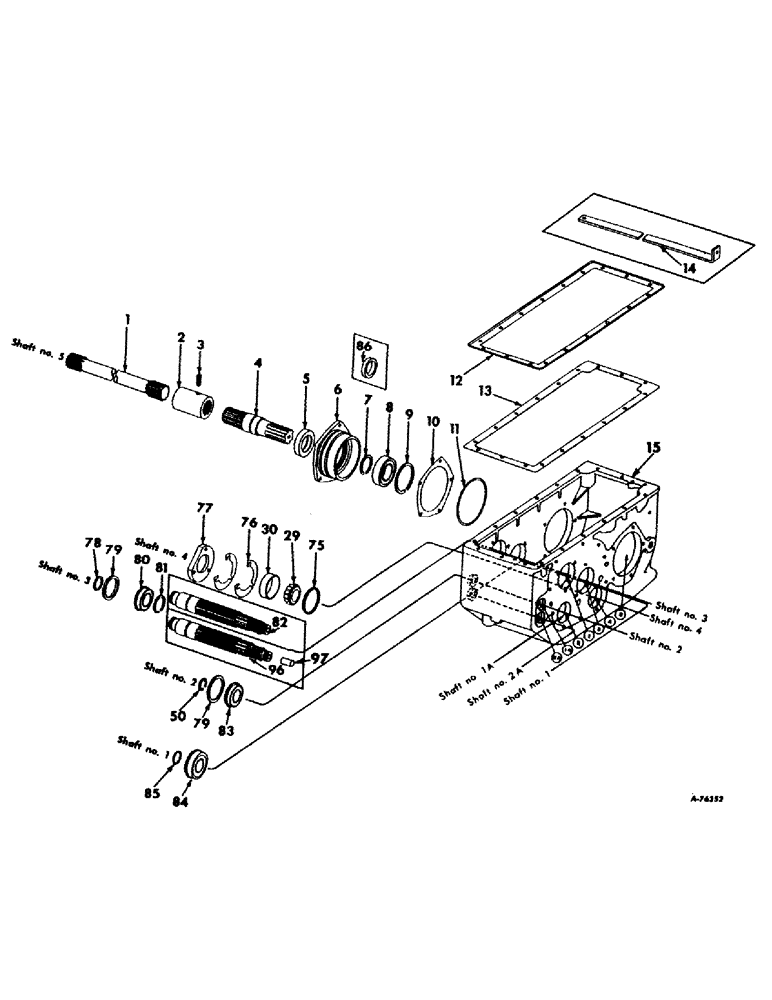

Запчасти Case IH 403 (040) - AXLE, TRANSMISSION (21) - TRANSMISSION

1

NOT USED

1шт.

2

NOT USED

1шт.

3

NOT USED

1шт.

4

383568R1

SHAFT, differential, LH

1шт.

5

NOT USED

1шт.

6

383572R1

CAGE, differential bearing

2шт.

379446R1

SCREW,Hex, 3/8" - 16 x 1 3/8", W/ Nylon Pellet

3/8 X 1-3/8 CAP SCREW

10шт.

7

NOT USED

1шт.

8

548823R91

BEARING

DIFFERENTIAL CAGE, will work for 569543R91

2шт.

9

111191H1

SNAP RING, differential bearing cage

2шт.

10

573976R1

DISC

SHIM, differential bearing cage, light

1шт.

10

573977R1

SHIM

differential bearing cage, medium

1шт.

10

573978R1

SHIM

differential bearing cage, heavy

1шт.

11

610412C1

O-RING,0.139" Thk x 4.609" ID, -247, Cl 5, 75 Duro

differential bearing cage

2шт.

12

574913R1

COVER

transmission case

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

18шт.

93-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER, 3/8 external-tooth lock

18шт.

13

573998R2

GASKET

transmission case cover

1шт.

14

628901R1

STIFFENER, transmission shift bracket lower

1шт.

3/8 X 1 MACH BOLT W/NUT

1шт.

3/8 LOCK WASHER

1шт.

15

379452R3

CASE

transmission

1шт.

9409947

DRAIN PLUG,Sq Soc, 3/4"-14 NPTF

PLUG, 3/4 sq-soc-hd pipe

2шт.

16

61991R91

BREATHER,1/8"-27 NPT, Short, w/washer

transmission case oil

1шт.

17

444592

PLUG,Sq Hd, 1/4"-14 NPTF

3/4 sq-hd

1шт.

18

13390D

ROLLER BEARING,3.06" ID x 4.3317" OD x 0.866"

CUP, differential roller bearing

2шт.

19

ST2039

BEARING CONE,68.26mm ID x 22.07mm W

CONE ASSY, differential roller bearing, will work for ST2026

2шт.

20

GEAR, differential drive, 57-T, Order service package 395631R92, ref no 21

1шт.

21

395631R92

PACKAGE

differential case and gear, will work for 382906R92, Consists of

1шт.

395632R92

DIFFERENTIAL

CASE AND GEAR ASSY

1шт.

395633R1

CASE, LH (NSS)

1шт.

395634R1

CASE, RH (NSS)

1шт.

395635R2

GEAR (NSS)

1шт.

381368R1

NUT,Hex, 1/2" - 20, Gr 8

S

8шт.

382911R2

BOLT,1/2" - 20 x 3 3/4"

S

8шт.

22

360962R2

GEAR

differential bevel, 28-T

2шт.

23

360961R1

GEAR

PINION, differential bevel, 15-T

4шт.

24

395636R1

BOLT,1/2" - 20 x 3 7/8"

differential case

8шт.

381368R1

NUT,Hex, 1/2" - 20, Gr 8

1/2 THICK NUT

8шт.

25

NOT USED

1шт.

26

383570R1

SHAFT, differential, RH

1шт.

27

388093R1

U-JOINT SPIDER

SPIDER, differential

1шт.

28

395630R1

GEAR

SHAFT, differential pinion, will work for 379453R1

1шт.

29

50212VA

ROLLER BEARING,33.35mm ID x 24.01mm W

CONE ASSY, differential pinion shaft bearing

2шт.

30

50213V

BEARING CUP

CUP, differential pinion shaft bearing

2шт.

31

383574R11

COVER

W/PIN ASSY, change

1шт.

141262

PIN,7/16" x 7/8"

7/16 X 7/8 DOWEL PIN

2шт.

181421R1

BOLT,Hex, 3/8" - 16 x 1 1/8", w/ Nylon Pellet

3/8 X 1-1/8 C-Z NYLOCK SCREW

10шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 X 3/4

4шт.

444592

PLUG,Sq Hd, 1/4"-14 NPTF

3/4 SQ-HD PIPE PLUG

1шт.

32

573997R2

GASKET

change gear cover

1шт.

33

NOT USED

1шт.

34

NOT USED

1шт.

35

379468R1

GEAR, change driven 34T 21/34 gear ratio, For propulsion drive

1шт.

35

406841R1

GEAR, change driven 32T 23/32 gear ratio, For hydrostatic drive

1шт.

36

214168R1

CAPSCREW,5/16" x 7/8", Gr 5

SCREW, 5/16 x 7/8 nylock cap

3шт.

37

379466R1

CAGE

intermediate shaft bearing, RH

1шт.

38

379464R91

BEARING ASSY

BEARING, intermediate shaft center

1шт.

39

528222R1

PINION, transmission intermediate drive, 17-T, will work for 574925R2

1шт.

40

379462R1

GEAR

intermediate and reverse driven, 30-T

1шт.

41

379461R1

SPACER

intermediate shaft, LH

1шт.

42

379495R1

GEAR

transmission input, 44-T

1шт.

43

379472R1

GEAR

PINION, first speed drive, 18-T

1шт.

44

359141R1

RING, SNAP

SNAP RING, transmission main shaft brg.

1шт.

45

395648R11

SHAFT

ASSY, transmission main

1шт.

374639R1

COUPLING

transmission shaft

1шт.

46

379473R1

GEAR

second and reverse drive, 26-T

1шт.

47

573985R1

SET SCREW,Sq Hd, 3/8"-24 x 1"

SCREW, shifter fork set

1шт.

114494

NUT,Jam, 3/8"-24, G5

1шт.

48

574905R1

FORK

first and third gear shifter

1шт.

49

379474R91

BEARING ASSY

transmission main shaft, RH

1шт.

50

370504R1

RING

SNAP RING, transmission main shaft brg

2шт.

51

574903R1

RAIL

first and third gear shifter

1шт.

52

111710R91

SEAL

OIL SEAL, shifter rail

4шт.

53

NOT USED

1шт.

54

NOT USED

1шт.

55

NOT USED

1шт.

56

573999R1

GEAR, change drive pinion 21T, For propulsion drive

1шт.

56

406840R1

GEAR WHEEL

GEAR, change drive pinion 23T, For hydrostatic drive

1шт.

57

214168R1

CAPSCREW,5/16" x 7/8", Gr 5

SCREW, 5/16 x 7/8 nylock cap

3шт.

58

379481R1

RETAINER

input shaft RH brg

1шт.

59

379437R91

BEARING ASSY

BEARING, input shaft

1шт.

60

379479R2

GEAR

second speed driven, 30-T

1шт.

61

359141R1

RING, SNAP

SNAP RING, input drive shaft

1шт.

62

379478R1

GEAR

first and third sliding, 46-T and 20-T

1шт.

63

NOT USED

1шт.

64

555601R1

RING, SNAP

SNAP RING, input drive shaft

1шт.

65

379482R1

SHAFT, input pinion, For propulsion drive

1шт.

65

389439R1

SHAFT, input pinion, For hydrostatic drive

1шт.

66

358034R91

NEEDLE BEARING

BEARING ASSY, input pinion shaft

1шт.

67

574904R1

FORK

reverse and second gear shifter

1шт.

68

573985R1

SET SCREW,Sq Hd, 3/8"-24 x 1"

SCREW, shifter fork set

1шт.

114494

NUT,Jam, 3/8"-24, G5

1шт.

69

574902R1

RAIL

reverse and second gear shifter

1шт.

70

9410358

PLUG

shift lock ball spring

2шт.

71

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, shift lock ball spring plug

1шт.

72

588801R1

SPRING

gear shift lock ball

2шт.

73

16016R1

BALL

gear shift lock, 1/2 dia

2шт.

74

16014R1

BALL

gear shift lock, 7/16 dia

2шт.

75

379458R1

RING

differential pinion shaft cap LH seal

1шт.

76

381222R1

SHIM

differential pinion LH, .007

1шт.

76

405626R1

SHIM

differential pinion LH, .003 (Or as required)

1шт.

77

573971R2

CAP

differential pinion shaft

1шт.

376811R1

BOLT,Hex, 3/8" - 16 x 1 1/8", W/ Nylon Pellet

3/8 X 1-1/8 NYLOCK CD-PLTD SCREW

3шт.

78

370504R1

RING

SNAP RING, intermediate shaft

1шт.

79

404207R1

RING,61.6mm ID x 68.4mm OD x 2.54mm Thk

transmission case seal

3шт.

80

ST364

BALL BEARING,30mm ID x 62mm OD x 16mm W

BEARING, transmission intermediate shaft, LH

1шт.

81

370504R1

RING

SNAP RING, transmission intermediate shaft, For use w/383573R1 shaft R2 does not use snap ring

1шт.

82

NOT USED

1шт.

83

ST246

BALL BEARING,30mm ID x 62mm OD x 16mm W

BEARING, transmission main shaft, LH

1шт.

84

389440R91

BEARING ASSY,31.75mm ID x 72mm OD x 17mm W

input pinion shaft inner

1шт.

85

359141R1

RING, SNAP

SNAP RING, input shaft bearing left

1шт.

86

383569R1

SPACER, differential LH shaft

1шт.

87

383571R1

SPACER, differential RH shaft

1шт.

88

384386R91

OIL SEAL,42.7mm ID x 63.7mm OD x 8.33mm Thk

Oil, Change Gear Cover 1.752" ID x 2.503" OD x .689

1шт.

89

382879R1

NUT

transmission intermediate shaft

1шт.

90

382900R1

LOCK WASHER

lock transmission intermediate shaft

1шт.

91

382901R1

LOCK WASHER,26.16mm ID x 47.8mm OD x 3.18mm Thk

transmission intermediate shaft

1шт.

92

382879R1

NUT

input drive shaft

1шт.

93

382900R1

LOCK WASHER

input drive shaft

1шт.

94

382901R1

LOCK WASHER,26.16mm ID x 47.8mm OD x 3.18mm Thk

input drive shaft

1шт.

95

382946R1

SHAFT

input drive

1шт.

96

383573R2

SHAFT

transmission intermediate

1шт.

97

NOT USED

1шт.

98

NOT USED

1шт.

99

NOT USED

1шт.
