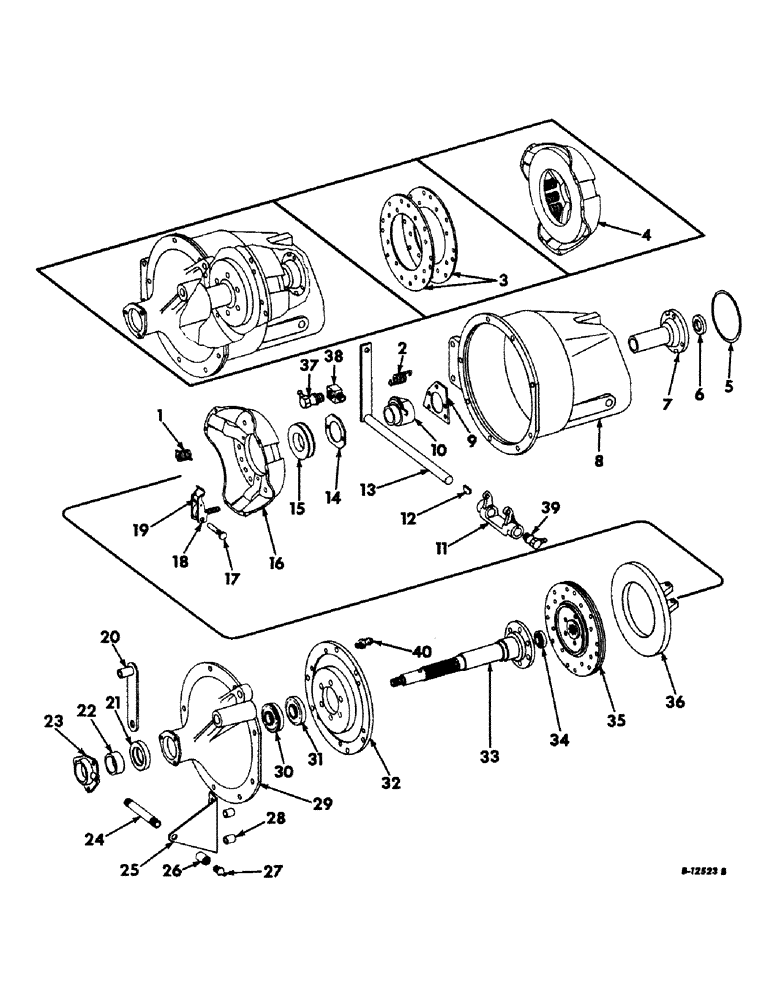

Запчасти Case IH 403 (044) - CLUTCH AND CLUTCH HOUSING (18) - CLUTCH

1

68289H

SPRING, clutch

12шт.

2

860239R1

SPRING

clutch release bearing carrier

2шт.

3

380638R91

KIT

W/FACING, clutch

1шт.

4

589858R91

COVER

PLATE ASSY, clutch pressure, 10 in., Consists of

1шт.

102317HA

LARGE PLATE

PLATE, back

1шт.

102318HA

PLATE, pressure

1шт.

68289H

SPRINGS

12шт.

29774HB

PIN

S

3шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

3шт.

43919HEX

LEVER

PACKAGE, clutch lever

1шт.

5/16 X 1-1/8 CAP SCREW

6шт.

5/16-24 NUT

6шт.

5

379447R1

RING

clutch shaft bearing cap sq-type seal

1шт.

6

567829R91

SEAL

OIL SEAL, input shaft LH bearing, Serial no. 805 and below

1шт.

6

938294R91

OIL SEAL,32.89mm ID x 54.08mm OD x 8mm Thk

OIL SEAL, input shaft LH bearing, Serial no. 806 and above

1шт.

7

573996R2

CAP, clutch shaft bearing

1шт.

379446R1

SCREW,Hex, 3/8" - 16 x 1 3/8", W/ Nylon Pellet

3/8 X 1-3/8 NYLOCK CAP SCREW

3шт.

8

383576R1

HOUSING, clutch

1шт.

3/8-24UNF NUT

9шт.

560172R1

BOLT,Hex, 3/8" - 24 x 1 1/2", Gr 8

3/8-24UNF X 1-1/2 CAP SCREW

9шт.

873462R1

BOLT,Spcl, Hex, 7/16" - 14 x 1 1/4", w/ Nylon Pellet

7/16 X 1-1/4 NYLOCK CAP SCREW

9шт.

9

379456R1

NO LONGER SERVICED

ANCHOR, clutch release bearing carrier inner

1шт.

10

584361R2

SLEEVE CYLINDER

CARRIER, clutch release bearing

1шт.

11

584392R1

NO LONGER SERVICED

YOKE, clutch release

1шт.

560171R1

SCREW, clutch release shaft set wire, 11 in. long, Order from bulk stock

1шт.

12

120502

STOP

3/16 x 7/8 Woodruff

1шт.

13

574906R91

SHAFT W/ARM, clutch release

1шт.

14

379463R1

ANCHOR

clutch release bearing carrier outer

1шт.

15

362028R92

BALL BEARING,52.39mm ID x 90.86mm OD x 20.5mm W

ASSY, clutch release

1шт.

16

102317HA

LARGE PLATE

PLATE, back

1шт.

17

29774HB

PIN

lever

3шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), , Extended prong 3/32" x 5/8"

3шт.

18

43919HEX

LEVER

PACKAGE, clutch lever

1шт.

19

NOT SERVICED

1шт.

20

569342R91

SUPPORT W/SPACER, axle LH rear, Not hydrostatic drive

1шт.

3/4 X 2-1/2 MACH BOLT W/NUT

1шт.

3/4 LOCK WASHER

1шт.

615135R1

WASHER

21/32 X 1-3/4 X 11 GA WASHER

1шт.

21

380378R91

OIL RESERVOIR

OIL SEAL, clutch housing cover

1шт.

22

633435R1

BUSHING

SPACER, propulsion sheave hub

1шт.

23

379937R1

CAP

clutch housing cover bearing

1шт.

3/8 X 1 CAP SCREW

3шт.

24

144621

NIPPLE, LUBE,Nipple, 1/8" NPT x 5"

NIPPLE, 1/8 x 5, Serial no. 805 and below

1шт.

25

632929R1

SUPPORT, lubrication nipple, Serial no. 805 and below

1шт.

3/8-24NF NUT

2шт.

445032R1

3/8-24NF X 2 CAP SCREW

2шт.

3/8 LOCK WASHER

2шт.

26

187394

CONNECTOR, ELEC,1/8" NPT, Fem

COUPLING, 1/8 pipe, Serial no. 805 and below

1шт.

27

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8 45 deg elbow lubrication, Serial no. 805 and below

1шт.

27

19583R91

FITTING, 90 degree angle lubrication, Serial no. 806 and above

1шт.

28

27251K

SPACER,5/8" Tube x 7/16"

1шт.

29

393577R1

COVER, clutch housing

1шт.

17048R91

FITTING, clutch housing cover brg lub

1шт.

30

ST341

BALL BEARING,35 mm ID x 72 mm OD x 17 mm

BEARING, input shaft outer

1шт.

31

554553R91

BALL BEARING,45mm ID x 75mm OD x 16mm W

input shaft inner

1шт.

32

379449R1

PLATE

clutch mounting

1шт.

1/2 NUT

6шт.

1/2 X 1-3/4 CAP SCREW

6шт.

33

383578R1

SHAFT, transmission input

1шт.

19256R1

LOCK NUT,1"-14, G5

NUT, 1-14NF elastic stop

1шт.

557273R1

WASHER

1-1/32 x 2 x 11 ga

1шт.

34

ST553

BEARING, BALL,20mm ID x 47mm OD x 14mm W

BEARING, clutch pilot

1шт.

35

379484R91

DISC

ASSY, clutch driven, 10 in.

1шт.

36

102318HA

PLATE, pressure

1шт.

37

219-31

LUBE NIPPLE,30 Degree Elbow, 1/8" - 27 NPTF

FITTING, lubrication 30 deg elbow 1/8

1шт.

38

585590R1

BODY, lubrication, fitting, Serial no. 940 and below

1шт.

38

586983R1

ELBOW, lubrication, fitting, Serial no. 941 and above

1шт.

39

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, lubrication 90 deg elbow 1/8

1шт.

40

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.
