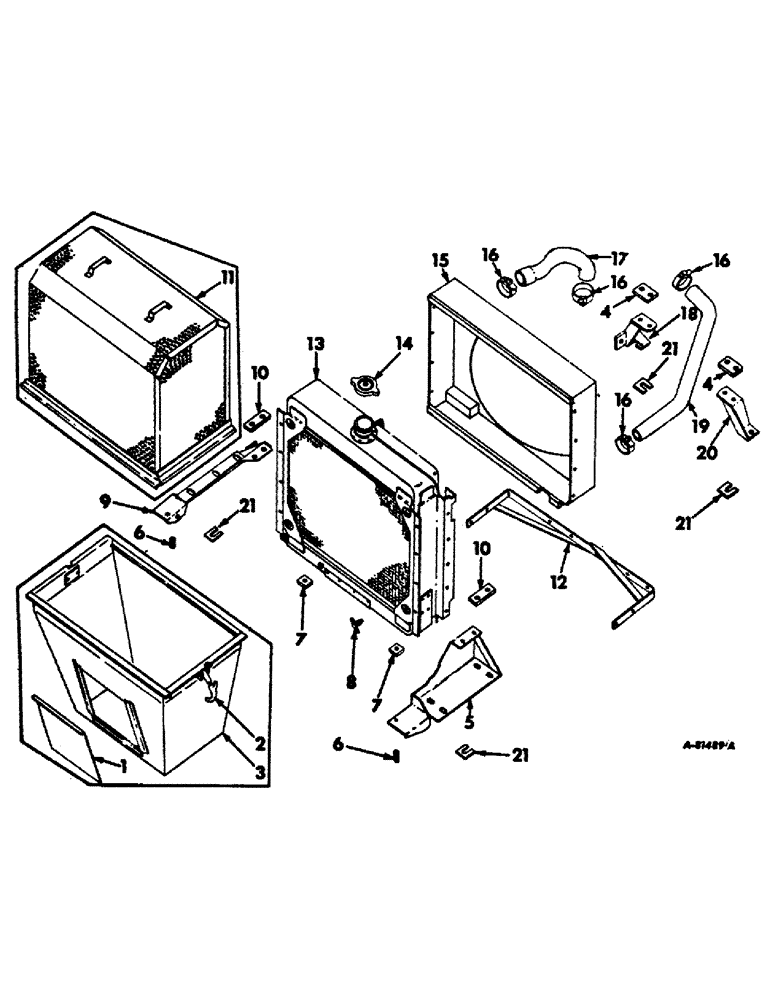

Запчасти Case IH 403 (230) - AIR CHUTE, RADIATOR AND CONNECTIONS, COMBINE S/N 806 AND ABOVE, D-301 ENGINE (10) - ENGINE

1

274733R1

DOOR, radiator air, up to combine serial no. 940

1шт.

2

353443R91

LATCH ASSY.

LATCH ASSY, air screener, up to combine serial no. 940

1шт.

113356

RIVET,Tr Hd, 3/16" x 3/8"

3/16 x 3/8 ov-hd tubular

4шт.

3

388003R91

CHUTE ASSY, radiator air, up to combine serial no. 940

1шт.

172455

SELF-TAP SCREW,Sl Hex, 5/16" - 18 x 3/4"

SCREW, 5/16-18 x 1/2 hex-hd tap.

10шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.

4

936521R1

PAD

engine base rear

2шт.

5

388032R11

BRACKET ASSY, front support, LH

1шт.

548434R1

BOLT, engine mount lock

1шт.

231-14410

NUT,5/8"-11, GB

NUT, LOCK, , Esna 5/8"-11, GB

1шт.

20611R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

SCREW, 5/8-11 x 2-1/4 C-Z hex-hd cap

1шт.

6

67205D

SPRING

radiator mounting bolt

2шт.

7

274716R1

PAD, radiator mounting

2шт.

8

444619

PIPE CLAMP

PLUG, 1/4-18 automotive hex-hd pipe

1шт.

9

388033R11

BRACKET ASSY, front support, RH

1шт.

548434R1

BOLT, engine mount lock

1шт.

231-14410

NUT,5/8"-11, GB

NUT, LOCK, , Esna 5/8"-11, GB

1шт.

20611R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

SCREW, 5/8-11 x 2-1/4 C-Z hex-hd cap

1шт.

10

385874R1

PAD

front cover engine

2шт.

11

388015R91

SCREEN ASSY, radiator air, up to combine serial no. 940

1шт.

12

389768R91

BRACE ASSY, radiator

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

179858

SUPPORT

SCREW, 7/16-14 x 1 hex-hd cap

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

178569

WASHER, 7/16 int-ext tooth lock

2шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x .065 ga

2шт.

13

397477R1

RADIATOR ASSY, will work for 391517R91

1шт.

15055R1

BOLT, 7/16-14 x 1-3/4 sq-nk crg

2шт.

18526R1

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 esna stop

2шт.

W6652

WASHER

15/32 x 1 x 16 ga

4шт.

14

361705R91

COVER

CAP, radiator pressure

1шт.

15

388000R11

SHROUD ASSY, fan

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

SCREW, 5/16-18 x 1/2 hex-hd cap

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

16

274088R91

HOSE CLAMP,2.25/3.13 Type F Worm

CLAMP, radiator hose

4шт.

17

387993R1

HOSE ASSY.

HOSE, radiator inlet elbow

1шт.

18

150178C91

SUPPORT ASSY, rear, RH

1шт.

301055R1

BOLT, engine adjusting

2шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 C-Z hex.

5шт.

114507

JAM NUT,Jam, 5/8"-11, G5

1шт.

19

387994R1

HOSE ASSY.

HOSE, radiator outlet elbow

1шт.

20

150849C91

SUPPORT ASSY, engine left rear

1шт.

236484R1

BOLT,Hex, 1/2" - 13 x 2", Gr 8

2шт.

231-1408

LOCK NUT,1/2"-13, GB

NUT, 1/2 esna lock

2шт.

21

570012R1

SHIM, engine support

4шт.
