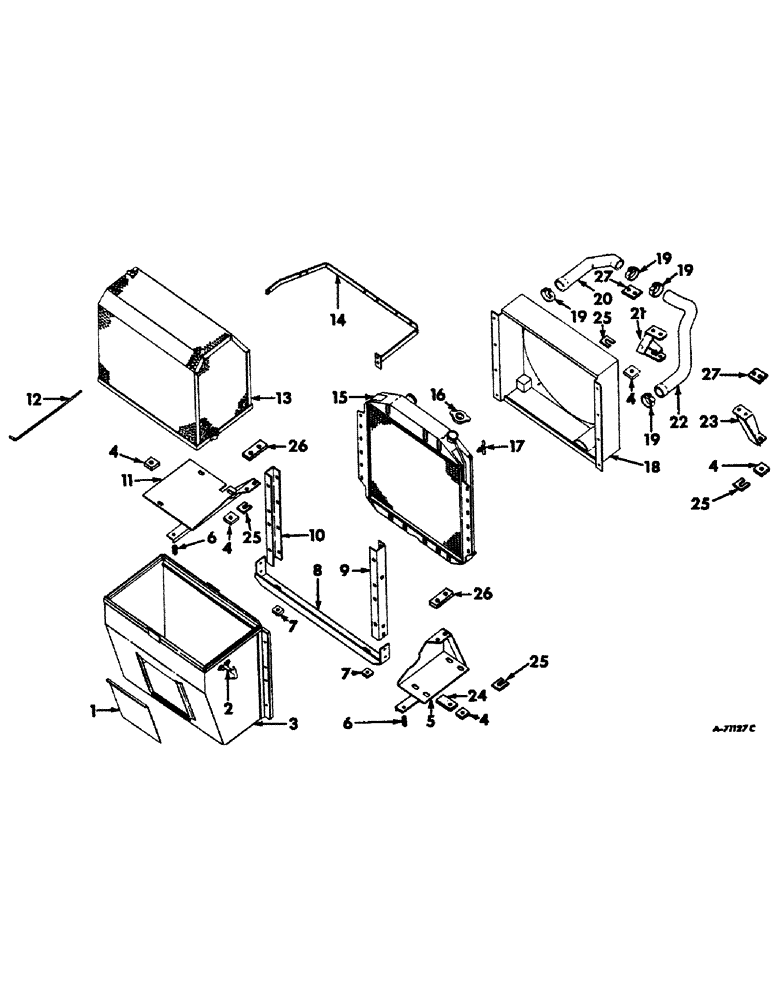

Запчасти Case IH 403 (228) - AIR CHUTE, RADIATOR AND CONNECTIONS, COMBINE S/N 805 AND BELOW, C-282 ENGINE (10) - ENGINE

1

274733R1

DOOR, air chute

1шт.

2

353443R91

LATCH ASSY.

LATCH ASSY, air screener

1шт.

113356

RIVET,Tr Hd, 3/16" x 3/8"

3/16 X 3/8 OVAL-HD RIVET

2шт.

3

377765R91

CHUTE ASSY, air

1шт.

110579R91

NUT

5/16NF SPEED GRIP NUT

8шт.

181339

BOLT,Hex, 5/16" - 24 x 1", Gr 5

8шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

4

633222R1

INSULATOR BLOCK

PAD, support, 2 in., combine serial no. 640 & below

4шт.

5

377749R11

BRACKET ASSY, front support, LH

1шт.

20552R1

5/8 X 1-3/4 BOLT W/INSERT

1шт.

19508R1

LOCK NUT,5/8"-11, GB

5/8 LOCK NUT

1шт.

570879R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

5/8 X 2-1/4 CAP SCREW

1шт.

6

67205D

SPRING

radiator mounting bolt

2шт.

7

312458R1

PAD, radiator mounting

4шт.

8

377758R11

SUPPORT ASSY, radiator

1шт.

15143R1

BOLT,Sq Nk, 7/16" - 14 x 3"

RADIATOR MOUNTING BOLT

2шт.

18526R1

LOCK NUT,7/16"-14, GB

7/16 ELASTIC STOP NUT

2шт.

W6652

WASHER

15/32 X 1 X 16 GA WASHER

4шт.

9

318284R2

CHANNEL, air chute and fan shroud mounting, LH

1шт.

111543R91

3/8NF SPEED GRIP NUT

2шт.

182718

BOLT

3/8NF X 1 CAP SCREW

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

10

318285R2

CHANNEL, air chute and fan shroud mounting, RH

1шт.

111543R91

3/8NF SPEED GRIP NUT

2шт.

182718

BOLT

3/8NF X 1 CAP SCREW

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

11

379916R11

BRACKET ASSY, front support, RH

1шт.

20552R1

5/8 X 1-3/4 BOLT W/INSERT

1шт.

19508R1

LOCK NUT,5/8"-11, GB

5/8 LOCK NUT

1шт.

570879R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

5/8 X 2-1/4 CAP SCREW

1шт.

12

377772R1

PIN, air screen hinge

1шт.

103374

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

1шт.

13

377771R91

SCREEN ASSY, air

1шт.

126032

WING NUT,3/8"-16

3/8 WING NUT

1шт.

Q1505

WASHER

13/32 X 1 X 16 GA WASHER

1шт.

14

378047R11

BRACE ASSY, radiator

1шт.

110579R91

NUT

5/16NF SPEED GRIP NUT

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

2шт.

181339

BOLT,Hex, 5/16" - 24 x 1", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

15

383803R91

RADIATOR ASSY

1шт.

16

73047R91

CAP

radiator, Optional with 80889R91 and 118029R91

1шт.

16

80889R91

COVER

CAP, radiator, Optional with 73047R91 and 118029R91

1шт.

16

118029R91

RADIATOR CAP

CAP, radiator, Optional with 73047R91 and 80889R91

1шт.

17

114569

COCK, radiator drain

1шт.

18

379623R11

SHROUD ASSY, fan

1шт.

110579R91

NUT

5/16NF SPEED GRIP NUT

8шт.

181336

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

7шт.

181339

BOLT,Hex, 5/16" - 24 x 1", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

19

274088R91

HOSE CLAMP,2.25/3.13 Type F Worm

CLAMP, radiator hose

4шт.

20

379621R1

RADIATOR HOSE,2.00" ID, 2.25" ID x 12.38", SAE 20R4 CLASS R, GRADE 1A

Inlet 2.00" ID, 2.25" ID x 12.38", SAE 20R4 CLASS R, GRADE 1A

1шт.

21

629849R91

SUPPORT ASSY, rear, RH

1шт.

231-1408

LOCK NUT,1/2"-13, GB

1/2 ESNA LOCK NUT

2шт.

236484R1

BOLT,Hex, 1/2" - 13 x 2", Gr 8

2шт.

22

379622R1

HOSE

radiator outlet

1шт.

23

150849C91

SUPPORT ASSY, rear, LH

1шт.

231-1408

LOCK NUT,1/2"-13, GB

1/2 ESNA LOCK NUT

2шт.

236484R1

BOLT,Hex, 1/2" - 13 x 2", Gr 8

2шт.

24

634904R1

PAD, support, 4 in.

1шт.

25

570012R1

SHIM, engine support

4шт.

26

385874R1

PAD

front cover engine, combine serial no., Serial Range: 641-805

1шт.

27

936521R1

PAD

engine base rear, combine serial no., Serial Range: 641-805

1шт.
