Запчасти Case IH 403 (226) - AIR CHUTE, RADIATOR AND CONNECTIONS, COMBINE S/N 806 AND ABOVE, C-282 ENGINE (10) - ENGINE

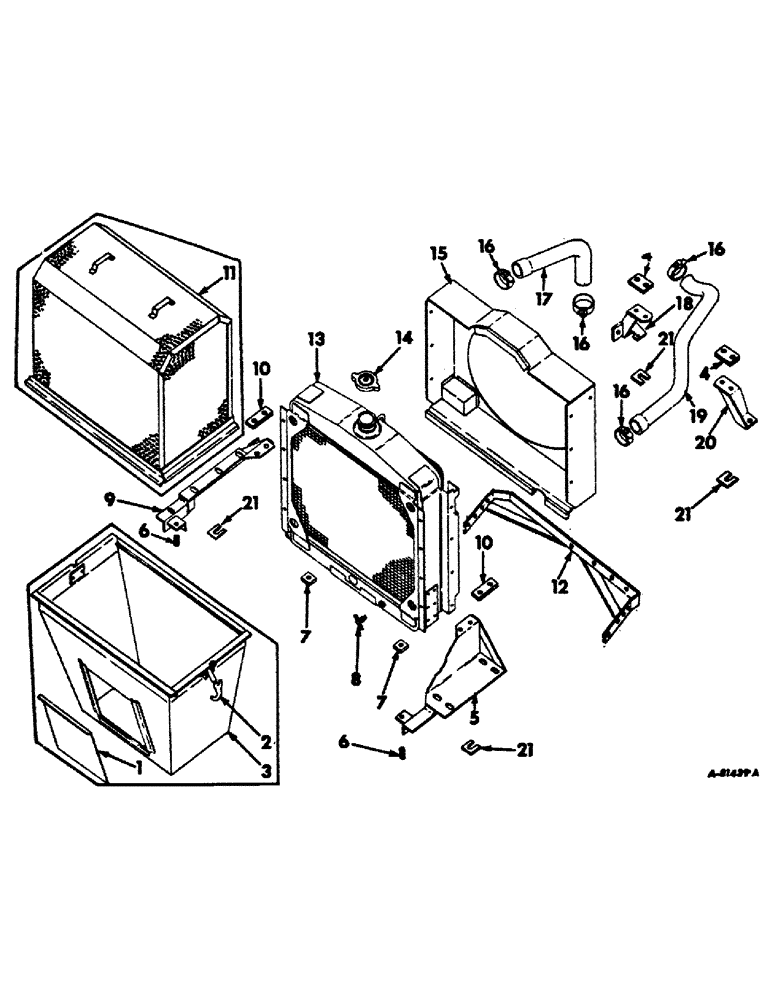

Схема запчастей Case IH 403 - (226) - AIR CHUTE, RADIATOR AND CONNECTIONS, COMBINE S/N 806 AND ABOVE, C-282 ENGINE (10) - ENGINE
16
6
12
14
10
21
9
1
7
19
13
15
16
1
7
21
17
18
6
10
21
11
3
21
2
5
20
16
16
4
8

Артикул

Название

Примечание

Количество

1

274703R1

DOOR, radiator air, up to combine serial no. 940

1шт.

2

353443R91

LATCH ASSY.

LATCH ASSY, air screener, up tp combine serial no. 940

1шт.

113356

RIVET,Tr Hd, 3/16" x 3/8"

3/16 x 3/8 oval-hd tubular

4шт.

3

387963R91

CHUTE ASSY, radiator air, up to combine serial no. 940

1шт.

179812

GEAR

SCREW, 5/16-18 x 1/2 hex-hd cap

8шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

4

936521R1

PAD

engine base rear

2шт.

5

387987R11

BRACKET ASSY, front support, LH

1шт.

231-14410

NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

1шт.

548434R1

BOLT, engine mount lock

1шт.

20611R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

SCREW, 5/8-11 x 2-1/4 C-Z hex-hd cap

1шт.

6

67205D

SPRING

radiator mounting bolt

2шт.

7

312458R1

PAD, radiator mounting

4шт.

8

444619

PIPE CLAMP

PLUG, 1/4-18 automotive hex-hd pipe

1шт.

9

387988R11

BRACKET ASSY, front support, RH

1шт.

548434R1

BOLT, engine mount lock

1шт.

231-14410

NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

1шт.

20611R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

SCREW, 5/8-11 x 2-1/4 C-Z hex-hd cap

1шт.

10

385874R1

PAD

front cover engine

2шт.

11

387969R91

SCREEN ASSY, radiator air, up to combine serial no. 940

1шт.

12

389767R91

BRACE ASSY, radiator

1шт.

180078

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

SCREW, 5/16-18 x 1 hex-hd

2шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 7/8 hex-hd cap

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

13

397476R1

RADIATOR ASSY, will work for 383935R92

1шт.

13

392480R91

RADIATOR ASSY, special w/soldered fin hems to minimize trash collection

1шт.

18697R1

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 3/4", Gr 2

BOLT, 7/16 x 1-3/4 sqnk crg

2шт.

231-1447

NUT,7/16"-14, GB

NUT, LOCK, 7/16"-14, GB

2шт.

14

361705R91

COVER

CAP, radiator pressure, Used w/radiator 383935R92

1шт.

14

73047R91

CAP

radiator pressure, will work for 393229R91, Used w/radiator 397476R1

1шт.

15

387943R91

SHROUD ASSY, fan

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

16

274088R91

HOSE CLAMP,2.25/3.13 Type F Worm

CLAMP, radiator hose

4шт.

17

387940R1

RADIATOR HOSE,2.00" ID, 2.12" ID x 10.19", SAE 20R4, CLASS SC

Inlet elbow 2.00" ID, 2.12" ID x 10.19", SAE 20R4, CLASS SC

1шт.

18

150178C91

SUPPORT ASSY, engine right rear

1шт.

301055R1

BOLT, engine adjusting

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

4шт.

114507

JAM NUT,Jam, 5/8"-11, G5

4шт.

19

387941R1

RADIATOR HOSE,2.00" ID, 2.12" ID x 15.31", SAE 20R4, CLASS R, GRADE 1A

Outlet elbow 2.00" ID, 2.12" ID x 15.31", SAE 20R4, CLASS R, GRADE 1A

1шт.

20

150849C91

SUPPORT ASSY, engine left rear

1шт.

236484R1

BOLT,Hex, 1/2" - 13 x 2", Gr 8

2шт.

231-1408

LOCK NUT,1/2"-13, GB

NUT, 1/2 esna stop

2шт.

21

570012R1

SHIM, engine support

4шт.

Выбрано товаров: 44
