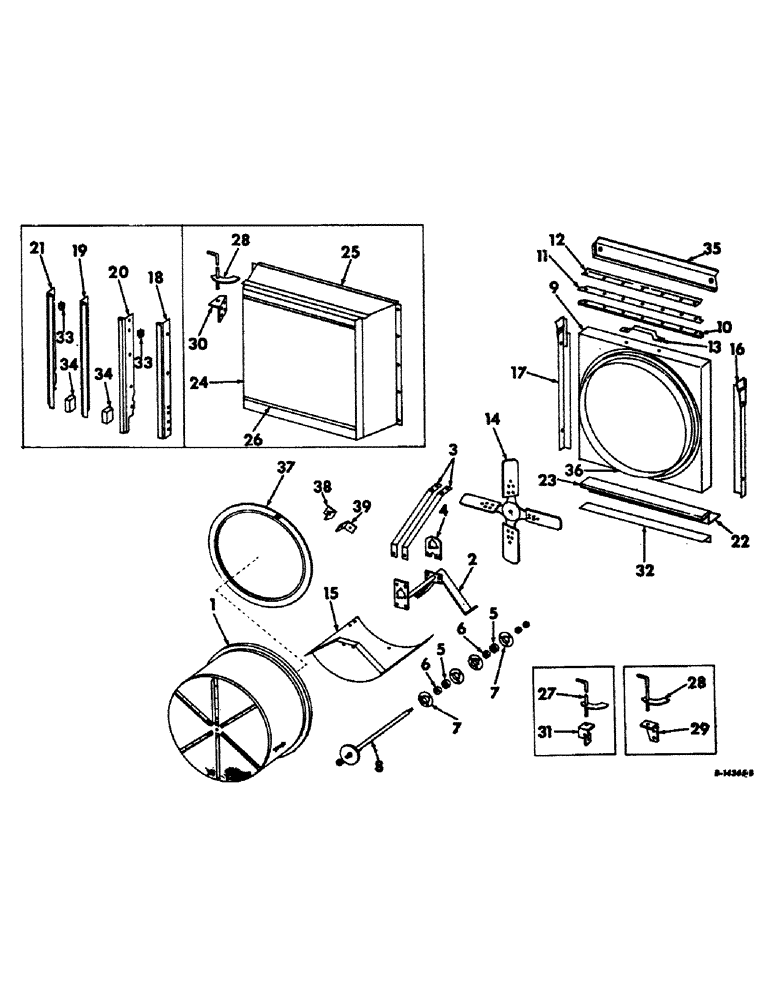

Запчасти Case IH 403 (222) - RADIATOR ROTARY AIR SCREEN, COMBINE S/N 941 AND ABOVE, C-282 ENGINE (10) - ENGINE

1

159702C91

SCREEN

ASSY, radiator rotating fan

1шт.

2

152806C91

SUPPORT ASSY, radiator screen brg

1шт.

106882

RIVET, 3/16 x 1/4 wagon box

4шт.

18654R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4-20 x 3/4 C-Z hex-hd

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

4шт.

3

154885C1

BRACE

radiator screen brg support

2шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16-18 x 3/4 C-Z hex-hd

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

NLS

NO LONGER SERVICED

RIVET, 3/16 x 5/16 wagon box (PN 135285)

4шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

4шт.

4

153570C1

BRACKET

radiator screen brg support

1шт.

18654R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4-20 x 3/4 C-Z hex-hd

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

2шт.

5

468390R91

BEARING, BALL,0.6255" ID x 40 mm OD x 0.75"

BEARING ASSY, ball

2шт.

6

468391R11

COLLAR

W/SET SCREW, locking

2шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4-20 x 1/2 hex-soc-hd cup-pt set

2шт.

7

661147R1

FLANGED BEARING

rotaing sieve brg

4шт.

12653R1

BOLT (SPREADER),Short NK, 1/4"-20 x 3/4", G2

BOLT, CARRIAGE, Short NK, 1/4"-20 x 3/4", G2

6шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

6шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

8

159703C91

ROD

ASSY, radiator rotating sieve

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

1шт.

9

153664C91

SHROUD ASSY, radiator rotating screen, Serial no. 1322 and below

1шт.

9

161419C91

SHROUD ASSY, radiator rotating screen, Serial no. 1323 and above

1шт.

15499C1

RIVET, 3/16 x 1/4 pop

2шт.

10

154028C1

SEAL, sponge rubber

1шт.

11

154029C1

STRAP, seal

1шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4-20 x 1/2 C-Z hex-hd

7шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

7шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

7шт.

12

NOT USED IN THIS APPLICATION

1шт.

13

614920R1

HANDLE, shroud

1шт.

18626R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 1/2", Gr 2

BOLT, 1/4-20 x 1/2 C-Z sq-nk crg

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

14

161207C91

FAN

ASSY, 4 blade

2шт.

15

152909C91

DEFLECTOR ASSY, radiator screen

1шт.

16

153798C91

ANGLE ASSY, screen slide support left

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16-18 x 3/4 C-Z hex-hd

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

17

153799C91

ANGLE ASSY, screen slide support right

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16-18 x 3/4 C-Z hex-hd

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

18

153656C1

SLIDE, radiator screen left

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16-18 x 3/4 C-Z hex-hd

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

19

153657C1

SLIDE, radiator screen right

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16-18 x 3/4 C-Z hex-hd

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

20

NOT USED IN THIS APPLICATION

1шт.

21

NOT USED IN THIS APPLICATION

1шт.

22

153658C11

REINFORCEMENT ASSY, radiator screen support, Includes ref. no. 23

1шт.

23

154277C1

SEAL, sponge rubber

1шт.

24

NOT USED IN THIS APPLICATION

1шт.

25

NOT USED IN THIS APPLICATION

1шт.

26

318106R1

SEAL, sta foam

1шт.

27

NOT USED IN THIS APPLICATION

1шт.

28

154139C91

LEVER

ASSY, rotating fan support

1шт.

124824

NUT,Hex, 5/16" - 18

5/16-18 c-Z hex. jam

2шт.

Q397

WASHER

11/32 x 3/4 x 16 ga

1шт.

29

154136C1

ANGLE, rotating fan support

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16-18 x 3/4 C-Z hex-hd

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

30

NOT USED IN THIS APPLICATION

1шт.

31

NOT USED IN THIS APPLICATION

1шт.

32

NOT USED IN THIS APPLICATION

1шт.

33

NOT USED IN THIS APPLICATION

1шт.

34

NOT USED IN THIS APPLICATION

1шт.

35

161263C11

ANGLE ASSY, radiator top seal, Includes ref. no. 26

1шт.

18763R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

5/16 x 1/2 C-Z hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

36

161420C1

RING

brush seal

1шт.

161421C1

SELF-TAP SCREW,Hex Wash Hd, #8 x 1/2"

SCREW, no. 8 znp hex-hd washer face self drilling

8шт.

37

161010C91

BRUSH ASSY.

BRUSH ASSY, rotary screen, Includes ref. nos. 38 and 39

1шт.

38

161011C1

CLIP

rotary screen brush short

1шт.

39

161012C1

CLIP, rotary screen brush long

1шт.

436736

SCREW,Slotted Pan Hd, #10-24 x 1"

no. 10 x 1 C-Z slt-pan-hd mach

1шт.

19910R1

LOCK NUT

no. 10 C-Z lock

1шт.
