(218) - AIR SCREEN EXTENSION, WITH PERFORATED SIDES, COMBINES S/N 640 AND BELOW

Запчасти Case IH 403 (218) - AIR SCREEN EXTENSION, WITH PERFORATED SIDES, COMBINES S/N 640 AND BELOW (10) - ENGINE

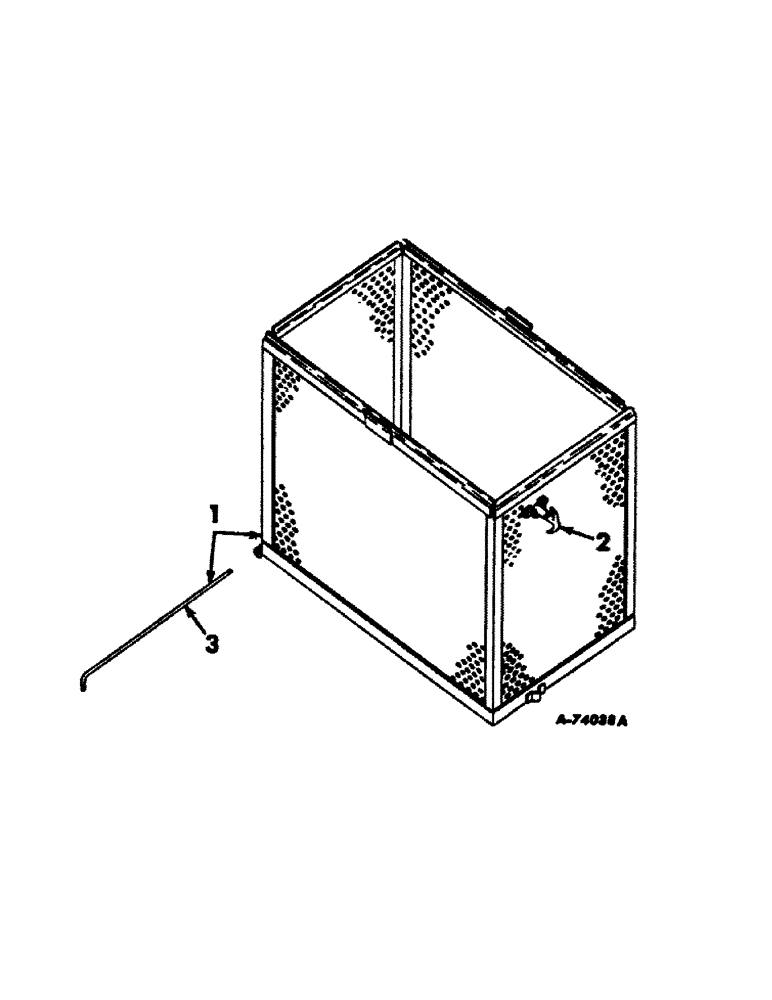

Схема запчастей Case IH 403 - (218) - AIR SCREEN EXTENSION, WITH PERFORATED SIDES, COMBINES S/N 640 AND BELOW (10) - ENGINE
3
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

EXTENSION ASSY, air screen, with perforated sides, serviced only as a machine attachment

1шт.

2

353443R91

LATCH ASSY.

LATCH ASSY, air screen

1шт.

135753

3/16 X 7/16 OV-HD RIVET

2шт.

3

316458R1

PIN, air screen extension hinge

1шт.

103374

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

1шт.
