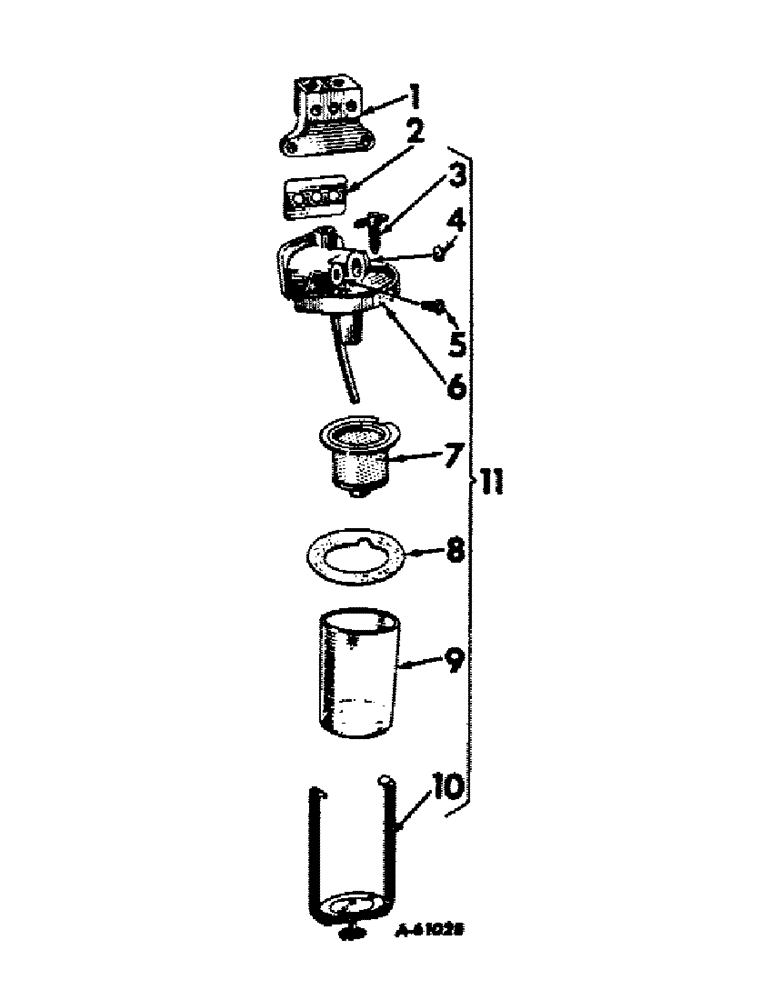

Запчасти Case IH 403 (217) - WATER TRAP, DIESEL (10) - ENGINE

1

9311D

BRACKET, water trap

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

2

51527DC

GASKET

water trap

1шт.

3

279173R1

CAPSCREW,3/8" x 1 5/32"

SCREW, water trap drain

1шт.

4

24805D

PLUG

3/8 brass expansion, type no. 1

1шт.

5

60871DA

SCREW, water trap vent

1шт.

6

251380R91

TOP

W/DRAIN PIPE AND PLUG, 24805D, water trap

1шт.

179893

BOLT,Hex, 1/2" - 13 x 3", Gr 5

SCREW, 1/2 x 3 hex-hd cap

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

7

251348R91

SCREEN

WATER TRAP

1шт.

8

260708R2

GASKET

water trap bowl

1шт.

9

60877D

BOWL

GLASS, water trap

1шт.

10

60878DX

BALL

BAIL W/THUMB SCREW, water trap

1шт.

11

251355R91

TRAP

ASSY, water

1шт.
