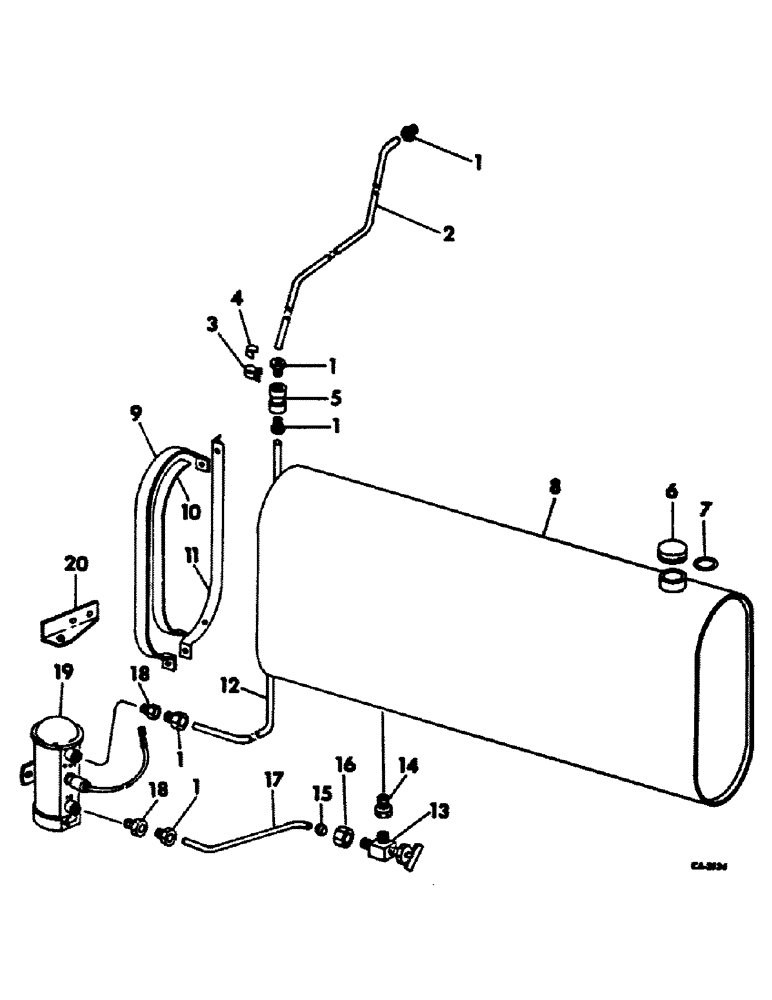

Запчасти Case IH 403 (214) - FUEL TANK, CAP, LINES AND SUPPORT, C-282 ENGINE (10) - ENGINE

1

222-503

TUBE NUT,1/2"-20

NUT, 1/2-20 hi-duty tube fitting

5шт.

2

LINE, fuel upper, 5/16 OD x 52-3/4 in., Order one foot increments of 995062R1 copper tubing

1шт.

3

140582

CLAMP

CLIP, fuel line

2шт.

3

NLS

NO LONGER SERVICED

fuel lower line

1шт.

17403R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 X 1/2 MACH BOLT

1шт.

109084

NUT,1/4"-20, G5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

4

52728D

CUSHION, fuel line clip

2шт.

5

50050D

UNION, fuel line

1шт.

6

23995DC

FILLER CAP

CAP W/GASKET 23977DC ASSY, fuel

1шт.

7

23977DC

GASKET

fuel cap

1шт.

8

627279R91

TANK ASSY, fuel, full leveling

1шт.

8

574734R91

TANK ASSY, fuel, side leveling

1шт.

9

569462R2

STRAP, fuel tank support

2шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

3/8 X 3/4 MACH BOLT

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

10

LINING, fuel tank, Order cotton webbing from bulk stock 1 x 56 in. 2 ply

2шт.

11

564529R1

SUPPORT, fuel tank

2шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

3/8 X 3/4 MACH BOLT

4шт.

17471R1

BOLT,Hex, 3/8" - 16 x 1 1/2"

3/8 X 1-1/2 MACH BOLT

2шт.

102635

NUT,3/8"-16, G5

6шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

12

LINE, fuel lower, 5/16 OD x 34-in., Order one foot increments of 995062R1 copper tubing

1шт.

13

120900

VALVE

ASSY, fuel shut-off

1шт.

14

119933

ADAPTER,3/8" NPT Male x 1/8" NPT Fem

BUSHING, reducer, For use w/ref no. 13

1шт.

15

114631

SLEEVE,Ball Type, 5/16" Tube

For use w/ref no. 13

1шт.

16

222-663

NUT,1/2"-24, 45 Degree Fl, Comp

NUT, 5/16 brass, For use w/ref no. 13

1шт.

17

LINE, fuel pump to fuel tank 5/16 OD x 12-5/16 inches, Order one foot increments of 995062R1 copper tubing

1шт.

18

35252D

HYD CONNECTOR,1/8" NPT x 1/2"-20

CONNECTOR, fuel pump

2шт.

19

631259R91

PUMP

ASSY, fuel, For components see list of parts under details fuel pump

1шт.

20

629311R1

BRACKET, fuel pump

1шт.

17410R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4 x 3/4 mach

2шт.

109084

NUT,1/4"-20, G5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.
