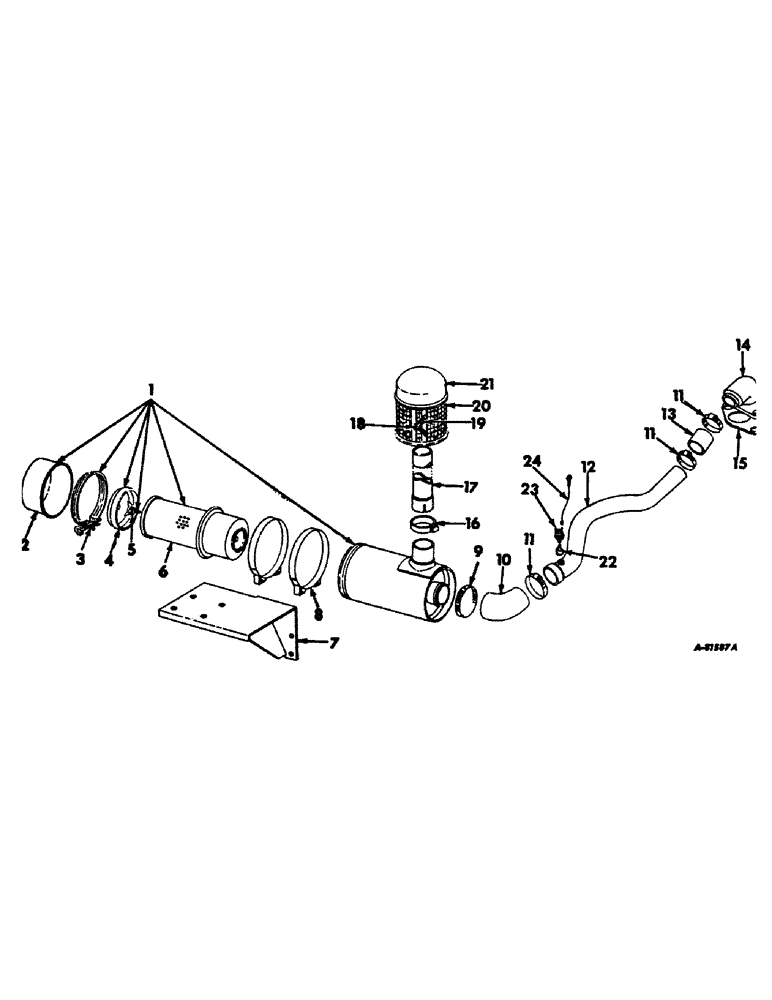

Запчасти Case IH 403 (211) - AIR CLEANER AND CONNECTIONS, DRY TYPE, COMBINE S/N 806 AND ABOVE, D-301 ENGINE (10) - ENGINE

394911R91

PARTS ACCESSORY, dry type air cleaner, combine serial nos. 805 & below

1шт.

1

388025R92

CLEANER ASSY, dry type air

1шт.

2

389266R91

CUP ASSY

1шт.

3

59860D

CLAMP

ASSY

1шт.

4

389265R1

CUP ASSY.

SKIRT, baffle

1шт.

5

389264R91

BOLT (SPREADER),Wing, 3/8" - 16, W/ Wshr, Gasket

BOLT ASSY

1шт.

6

389263R92

FILTER, ELEMENT

ELEMENT ASSY

1шт.

7

388027R92

BRACKET ASSY, air cleaner

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

8

347672R91

BAND

ASSY, air cleaner

2шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

NUT, 5/16-18 C-Z hex

4шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 hex-hd cap

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

NLS

NO LONGER SERVICED

5/16 x 3/4 x .051 C-Z

4шт.

9

397257R1

HOSE CLAMP,#52, 2.81/3.75 Type F Worm, W/liner

CLAMP, air cleaner hose, Will work for 122323R91

1шт.

10

388445R2

INTAKE AIR HOSE,2.75" ID, 3.00" ID, SAE 20R4 Class SC R1

Air Cleaner Pipe 2.75" ID, 3.00" ID, SAE 20R4 Class SC R1

1шт.

11

397257R1

HOSE CLAMP,#52, 2.81/3.75 Type F Worm, W/liner

CLAMP, air cleaner hose, Will work for 279029R91

1шт.

12

397271R91

PIPE W/PLUG, air cleaner, Will work for 379976R1

1шт.

445671

PLUG,Sq Hd, 1/8"-27 NPTF

1/8-27 automotive sq-hd pipe

1шт.

13

275340R2

HOSE, air cleaner pipe

1шт.

14

379977R1

ELBOW, intake manifold

1шт.

180146

BOLT,Hex, 7/16" - 14 x 1 1/8", Gr 5

SCREW, 7/16-14 x 1-1/8 hex-hd cap

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

15

369497R2

GASKET

intake manifold elbow

1шт.

16

379974R91

CLAMP, pre-screener pipe

1шт.

17

383356R2

PIPE, pre-screener 3" OD, 30" Length

1шт.

18

353758R1

CLIP

screen lock tension spring

1шт.

19

353639R1

VALVE SPRING

SPRING, screen lock tension

2шт.

20

393364R91

SCREEN

W/CLIP & SPRINGS ASSY, pre-screener

1шт.

21

265515R91

PRECLEANER

PRE-SCREENER W/QUICK REMOVABLE SCREEN

1шт.

22

389908R91

ADAPTER

ASSY, vaccum switch

1шт.

23

389682R92

SWITCH ASSY, electric air cleaner

1шт.

24

405211R1

CABLE PULLING GRIP

CABLE ASSY, vacuum switch to ground, Will work for 377120R92

1шт.
