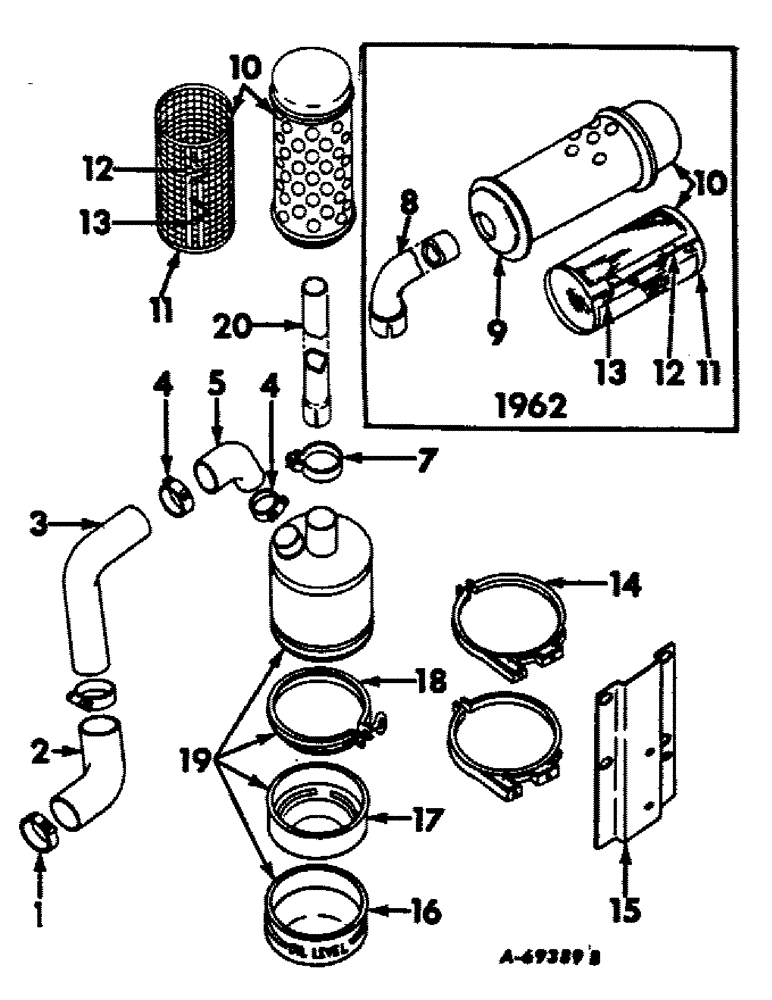

Запчасти Case IH 403 (210) - AIR CLEANER AND CONNECTIONS, COMBINE S/N 805 AND BELOW, C282 ENGINE (10) - ENGINE

1

274088R91

HOSE CLAMP,2.25/3.13 Type F Worm

CLAMP, air cleaner pipe lower hose

2шт.

2

377776R1

HOSE

air cleaner pipe lower

1шт.

3

316470R1

PIPE, air cleaner

1шт.

4

274088R91

HOSE CLAMP,2.25/3.13 Type F Worm

CLAMP, air cleaner pipe hose

2шт.

5

275362R1

ELBOW

HOSE, air cleaner pipe upper

1шт.

6

NOT USED IN THIS APPLICATION

1шт.

7

379368R91

COLLAR CLAMP

CLAMP ASSY, pre-screener pipe

1шт.

8

NOT USED IN THIS APPLICATION

1шт.

9

355145R91

BODY ASSY, pre-screener

1шт.

10

354983R91

CLEANER

PRE-SCREENER ASSY

1шт.

11

355146R91

SCREEN

ASSY, pre-screener

1шт.

12

353758R1

CLIP

screen lock spring

2шт.

13

353639R1

VALVE SPRING

SPRING, screen lock tension

4шт.

14

260790R91

BRACKET ASSY, air cleaner

2шт.

102635

NUT,3/8"-16, G5

4шт.

105605

NUT

5/16 SQ NUT

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

117295

5/16 X 1-1/4 FIL-HD MACH SCREW

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

15

316465R1

SUPPORT, air cleaner

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

16

313181R1

CUP, oil

1шт.

17

373180R1

CUP ASSY, inner oil

1шт.

18

59960D

CLAMP ASSY, oil cup retaining

1шт.

19

372978R91

CLEANER ASSY, air

1шт.

20

383355R1

PIPE, pre-screener, Combine Serial no. 805 & below 2.5" OD, 24" Length

1шт.
