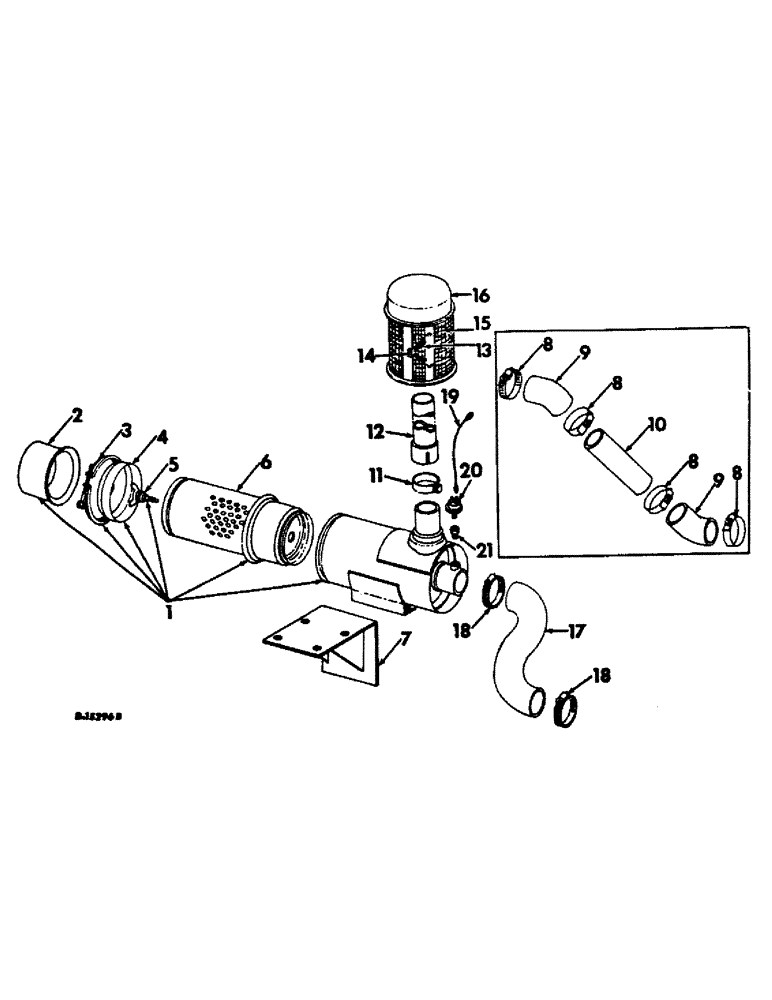

Запчасти Case IH 403 (209) - AIR CLEANER AND CONNECTIONS, DRY TYPE, COMBINE S/N 806 AND ABOVE, C-282 ENGINE (10) - ENGINE

394909R91

PARTS ACCESSORY, dry type air cleaner, combine serial no. 805 & below

1шт.

1

397173R91

CLEANER ASSY, dry type air, will work for 387981R92

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 C-Z hex-hd cap

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

178532

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, 5/16 C-Z int-ext tooth lock

1шт.

2

389267R91

BOWL

CUP ASSY

1шт.

3

381339R91

CLAMP

ASSY

1шт.

4

381345R1

BAFFLE

1шт.

5

389264R91

BOLT (SPREADER),Wing, 3/8" - 16, W/ Wshr, Gasket

BOLT ASSY

1шт.

6

384812R93

AIR CLEANER

ELEMENT ASSY

1шт.

7

388440R11

BRACKET ASSY, air cleaner

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x 16 ga C-Z

2шт.

8

397256R1

HOSE CLAMP,#44, 2.31/3.25 Type F Worm, W/liner

CLAMP, air cleaner pipe elbow

4шт.

9

377776R1

HOSE

air cleaner pipe elbow, Order hose 397793R1

2шт.

10

387984R1

PIPE, air cleaner, Order hose 397793R1

1шт.

11

379368R91

COLLAR CLAMP

CLAMP, pre-screener pipe

1шт.

12

383355R1

PIPE, pre-screener 2.5" OD, 24" Length

1шт.

13

353639R1

VALVE SPRING

SPRING, screen lock tension

2шт.

14

353758R1

CLIP

screen lock spring

1шт.

15

355146R91

SCREEN

W/CLIP, 353758R1 and two springs 353639C1, pre-screener

1шт.

16

354983R91

CLEANER

PRE-SCREENER ASSY

1шт.

17

397793R1

INTAKE AIR HOSE,2.25" ID

Air Cleaner Outlet 2.25" ID

1шт.

18

397256R1

HOSE CLAMP,#44, 2.31/3.25 Type F Worm, W/liner

CLAMP, air cleaner outlet hose

2шт.

19

405211R1

CABLE PULLING GRIP

CABLE ASSY, vacuum switch to ground, Will work for 377120R92

1шт.

20

389682R91

SWITCH

electric air cleaner

1шт.

21

389908R91

ADAPTER

ASSY, vacuum switch

1шт.
