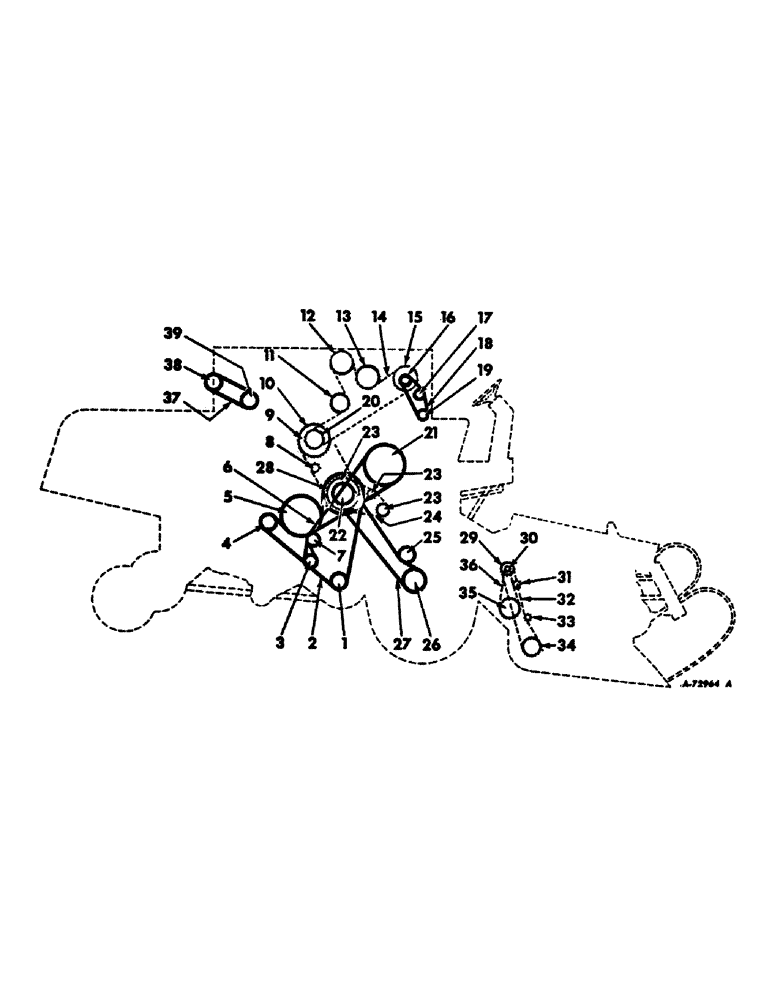

Запчасти Case IH 403 (013) - BELT, CHAIN, PULLEY AND SPROCKET DIAGRAM, RIGHT SIDE (05) - SERVICE & MAINTENANCE

1

634079R1

PULLEY, inner half driven, regular

1шт.

1

564481R2

PULLEY, outer half driven, slow speed

1шт.

1

634077R1

PULLEY

inner half driven, slow speed

1шт.

1

569811R2

PULLEY, outer half driven, regular

1шт.

1

153052C1

PULLEY, inner half driven, Optional 404 to 470 RPM

1шт.

1

153053C1

PULLEY, outer half driven, Optional 404 to 470 RPM, See unit listed under fan drive and slow speed fan attachment

1шт.

2

937928R1

V-BELT

Fan and straw rack, See unit listed under straw rack and drive

1шт.

3

627895R1

PULLEY

unloader auger drive, propulsion drive

1шт.

3

150669C1

PULLEY, unloader auger drive, hydrostatic drive, See unit listed under grain tank unloader auger drive

1шт.

4

936923R91

PULLEY

ASSY, fan belt tightener, Optional for 574097R91

1шт.

4

574097R91

PULLEY

ASSY, fan belt tightener, Optional for 936923R91, See unit listed under fan drive and slow speed fan attachment

1шт.

5

568237R11

PULLEY W/SPACER, straw rack driven

1шт.

5

570850R1

PULLEY, straw rack driven, See unit listed under straw rack and drive

1шт.

6

559064R1

V-BELT,0.88" W

Unloader auger drive, For propulsion drive 0.88" W

1шт.

6

562655R1

V-BELT,0.88" W

Unloader auger drive, For hydrostatic drive, See unit listed under grain tank unloader auger drive 0.88" W

1шт.

7

154742C91

PULLEY

ASSY, unloader drive tightener pulley outer

1шт.

7

570265R91

PULLEY

ASSY, unloader drive tightener pulley inner, See unit listed under grain tank unloader auger drive

1шт.

8

565442R91

SPROCKET

elevator drive chain tightener, See unit listed under grain elevator and drive

1шт.

9

629166R1

SPROCKET ASSY.

SPROCKET, elevator jackshaft driven 38-T, See unit listed under grain elevator and drive

1шт.

10

CHAIN, elevator jackshaft drive roller, Order 71 links from 10-ft roll marked 1791D and 1 connecting link, See unit listed under grain elevator and drive

1шт.

11

154742C91

PULLEY

elevator drive tightener, See unit listed under grain elevator and drive

1шт.

11

582415R91

DRIVE SPROCKET,9T

SPROCKET ASSY, elevator drive chain 2-T, See unit listed under elevator chain drive

1шт.

12

633198R1

PULLEY, elevator driven, Serial no. 805 and below

1шт.

12

939241R11

PULLEY ASSY.

PULLEY ASSY, elevator driven, Serial no. 806 and above, See unit listed under grain elevator and drive

1шт.

12

155811C1

SPROCKET ASSY.

SPROCKET, chain elevator drive 50-T idler 9-T, See unit listed under elevator chain drive

1шт.

13

633199R1

PULLEY, grain tank distributor auger driven, Serial no. 805 and below

1шт.

13

939241R11

PULLEY ASSY.

PULLEY ASSY, grain hopper leveling auger driven, Serial no. 806 and above, See unit listed under grain elevator and drive

1шт.

13

155811C1

SPROCKET ASSY.

SPROCKET, grain tank distributor auger driven 50-T, See unit listed under elevator chain drive

1шт.

14

937928R1

V-BELT

Elevator drive, Serial no. 1322 and below

1шт.

14

937929R1

V-BELT

Elevator drive, Serial no. 1322 and below, For machines with raised leveling auger

1шт.

14

CHAIN ASSY, elevator drive, Order 127 links from 10-ft roll marked 569089R91, one connecting link 587372R91 and one offset link 456929R91, See unit listed under elevator chain drive, Serial no. 1323 and above

1шт.

15

633198R1

PULLEY, elevator driven, Serial no. 805 and below

1шт.

15

939241R11

PULLEY ASSY.

PULLEY ASSY, elevator driven, Serial no. 806 to 1322, See unit listed under tailings elevator and drive

1шт.

15

155811C1

SPROCKET ASSY.

SPROCKET, elevator driven 50-T, Serial no. 1323 and above, See unit listed under elevator chain drive

1шт.

16

632830R1

PULLEY

tailings delivery auger drive, See unit listed under tailings delivery auger and drive

1шт.

17

161430C91

PULLEY

ASSY, tailings delivery auger drive belt tightener, See unit listed under tailings elevator and drive

1шт.

18

627297R1

V-BELT,0.63" W

Tailings delivery auger drive, See unit listed under tailings elevator and drive 0.63" W

1шт.

19

633282R1

SHEAVE

PULLEY, tailings auger driven, See unit listed under tailings elevator and drive

1шт.

20

627988R1

PULLEY, elevator drive, Serial no. 1322 and below, special for belt elevator drive

1шт.

20

936394R1

PULLEY, elevator drive, fast speed, Serial no. 1322 and below, special for belt elevator drive, See unit listed under grain elevator and drive

1шт.

20

155814C1

SPROCKET ASSY.

SPROCKET, elevator drive 38-T, Serial no. 1323 and above, See unit listed under elevator chain drive

1шт.

21

22784KA

PULLEY

W/RING, unloader drive, See unit listed under grain tank unloader drive

1шт.

22

631834R2

PULLEY, shaker shaft drive, See unit listed under grain pan and shaker shaft drive

1шт.

23

569201R2

PINION

SPROCKET, 20-T, double, grain, special

1шт.

23

569580R2

SPROCKET ASSY.

SPROCKET, 30-T, double, rice

1шт.

23

569200R2

DRIVE SPROCKET

SPROCKET, 25-T, double, grain, special

1шт.

23

569202R2

DRIVE SPROCKET

SPROCKET, 43-T, double, grain, special

1шт.

23

569582R2

SPROCKET, 48-T, double, optional

1шт.

23

570606R2

SPROCKET, 43-T, double, optional

1шт.

23

627884R1

SPROCKET ASSY.

SPROCKET, 22-T, double, See unit listed under cylinder drive and slip clutch

1шт.

24

CHAIN, cylinder drive roller, Use 77 links from 10-ft roll marked 1355D, 2 roller links 1316D, 3 connecting links 569206R91 and 1 two pitch combination offset links 570988R91, See unit listed under cylinder, drive and slip clutch

1шт.

25

566519R91

PULLEY

drive belt tightener, See unit listed under grain pan and shaker shaft drive

1шт.

26

175315C1

PULLEY

shaker shaft driven, See unit listed under grain pan and shaker shaft drive

1шт.

27

632705R1

BELT, shaker shaft drive, See unit listed under grain pan and shaker shaft drive

1шт.

28

629164R2

SPROCKET ASSY.

SPROCKET AND PULLEY, elevator jackshaft drive 38-T, See unit listed under fan drive and slow speed fan attachment

1шт.

29

571266R91

SPROCKET ASSY.

SPROCKET W/HUB, platform auger 17-T, See unit listed under feeder and feed conveyor chain

1шт.

30

588961R91

SPROCKET ASSY.

SPROCKET W/HUB, feed beater drive 19-T, See unit listed under lower feed beater

1шт.

31

582415R91

DRIVE SPROCKET,9T

SPROCKET ASSY, feed beater chain idler bearing, See unit listed under lower feed beater

1шт.

32

CHAIN, platform auger drive roller, Use 57 links of 1-1/4 extended pitch roller chain, agricultural, from a 10-ft roll marked 569089R91, 2 offset connecting links 456929R91 and 1 connecting link 456980R91, See unit listed under platform auger and drive

1шт.

33

582415R91

DRIVE SPROCKET,9T

SPROCKET ASSY, platform auger drive tightener, See unit listed under platform auger and drive

1шт.

34

571256R1

SPROCKET, platform auger driven 25-T, See unit listed under platform auger and drive

1шт.

35

632966R91

SPROCKET ASSY.

SPROCKET W/HUB, feed beater driven 45-T, See unit listed under lower feed beater

1шт.

36

CHAIN, lower beater drive roller, Use 35 links of 1-1/4 extended pitch roller chain, agricultural, from a 10 ft. roll marked 569089R91, 2 offset connecting link 456929R91 and 1 connecting link 587372R91, See unit listed under lower feed beater

1шт.

37

164099C91

BELT, hydraulic lift pump drive, full leveling, See unit listed under platform hydraulic lift pump

1шт.

38

633345R1

PULLEY, hydraulic lift pump drive, full leveling, See unit listed under platform hydraulic lift pump

1шт.

39

626565R2

PULLEY, hydraulic lift pump drive, Not hydraulic reel drive

1шт.

39

935675R2

PULLEY, hydraulic lift pump drive, For hydraulic reel drive, See unit listed under platform hydraulic lift pump

1шт.
