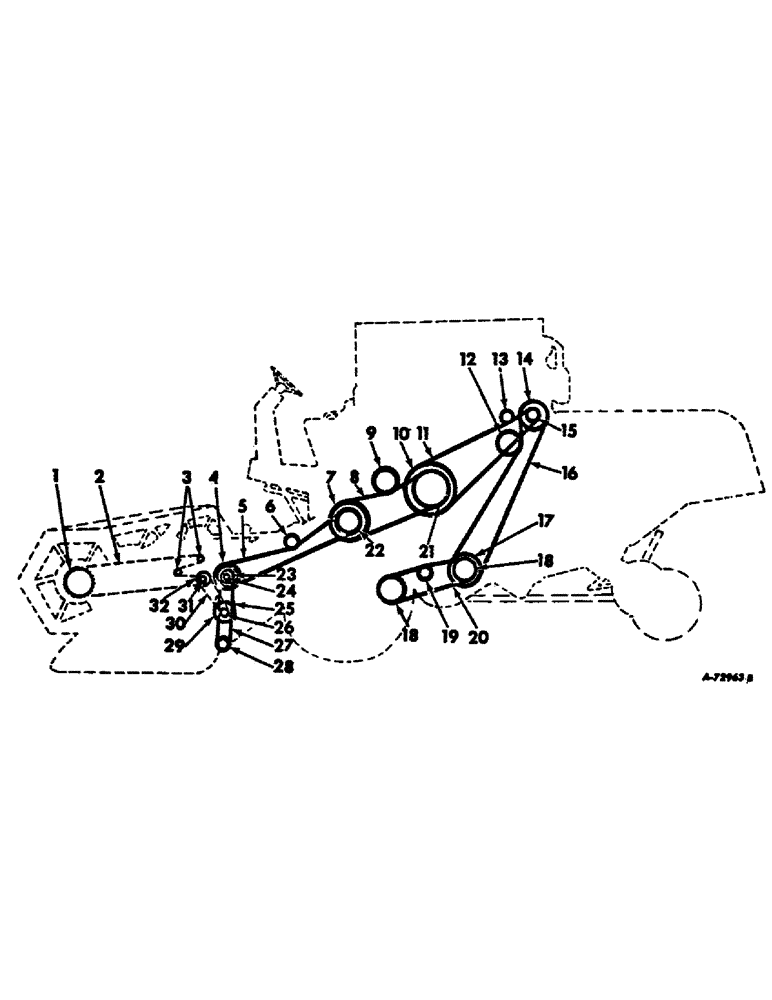

Запчасти Case IH 403 (011) - BELT, CHAIN, PULLEY AND SPROCKET DIAGRAM, LEFT SIDE (05) - SERVICE & MAINTENANCE
№
Артикул
Название
Примечание
Количество
1
570032R1
SPROCKET ASSY.
SPROCKET, reel shaft 29-T, Not for machines equipped with hydraulic reel drive chain reduction, See unit listed under reel support arms and drive
1шт.
1
150866C1
SPROCKET, reel driven 20-T, Serial no. 1524 and below
1шт.
1
164666C1
SPROCKET, reel driven 44-T, Serial no. 1525 and above, For machines equipped with hyd reel drive chain reduction, See unit listed under hydraulic reel drive chain reduction
1шт.
2
CHAIN, reel drive roller, Use 109 links of 1-1/4 extended pitch stock roller chain, agricultural, from a 10-ft roll marked 569089R91 and 1 connecting link 456980R91 and 2 offset connecting links 456929R91, See unit listed under reel support arms and drive
1шт.
3
564989R91
DRIVE SPROCKET
SPROCKET, reel drive chain tightener, 9T, See unit listed under reel support arms and drive
1шт.
4
588218R1
PULLEY
platform jackshaft drive, See unit listed under feeder and feed conveyor drive
1шт.
5
626789R1
V-BELT
Platform jackshaft drive, See unit listed under feeder and feed conveyor chain
1шт.
6
568941R11
PULLEY
platform jackshaft drive tightener, See unit listed under feeder and feed conveyor chain
1шт.
7
571467R1
PULLEY, feeder driven, Serial no. 805 and below
1шт.
7
568937R21
PULLEY
ASSY, feeder driven, Serial no. 806 and above, See unit listed under feed conveyor chain
1шт.
8
568938R1
BELT
feeder drive, Serial no. 805 and below
1шт.
8
937932R1
BELT
V-BELT, Feeder drive, Serial no. 806 and above, See unit listed under feeder and feed conveyor chain
1шт.
9
568941R11
PULLEY
feeder drive tightener, See unit listed under feeder separator clutch and throttle control
1шт.
10
631183R1
PULLEY
separator driven, Serial no. 501 to 640, Order service package 936715R91
1шт.
10
936715R91
PACKAGE
ASSY, cylinder beater and separator drive pulley, Serial no. 640 and below, See unit listed under separator and propulsion jackshaft drive, Consists of
1шт.
163553C11
SHAFT ASSY, cylinder beater
1шт.
936436R1
PULLEY, separator driven
1шт.
117998
WOODRUFF KEY,#G, 3/8" x 1 1/2", HT
KEY, 3/8 x 1-1/2 Woodruff
1шт.
163446C1
KEY
3/8 x 2-1/2 str
1шт.
629724R11
COLLAR
COLLAR W/SET SCREW ASSY, 3/8 x 3/8 set screw
1шт.
632471R1
1-1/32 X 2 X 22 GA WASHER
4шт.
936727R1
WASHER,26.16mm ID x 56.9mm OD x 6.35mm Thk
1-1/32 X 2-1/4 X 1/4 WASHER
4шт.
10
936436R1
PULLEY ASSY, separator driven, Serial no., Serial Range: 641-1322
1шт.
10
159263C1
PULLEY ASSY, separator driven, Serial no., Serial Range: 1323-1522
1шт.
10
166044C1
PULLEY, separator driven, Serial no. 1523 and above, See unit listed under separator and propulsion jackshaft drive
1шт.
11
629820R1
BELT,5.00" W x 163.35" L
Separator driven, S/N 1322 and below 5.00" W x 163.35" L
1шт.
11
159267C1
V-BELT,2.25" W x 174.99" L, 3 Ribs
Separator Drive, See Unit Listed Under Separator and Propulsion Jackshaft Drive, Serial No. 1323 and Above 2.25" W x 174.99" L, 3 Ribs
1шт.
12
572809R11
PULLEY ASSY, propulsion jackshaft drive, See unit listed under sep. and propulsion drive
1шт.
13
568955R1
PULLEY, separator drive belt tightener, Serial no. 1322 and below
1шт.
13
606555R1
PULLEY, separator drive belt tightener, Serial no. 1323 and above See unit listed under separator and jackshaft drive
1шт.
14
628310R1
PULLEY, propulsion jackshaft drive, See unit listed under separator and propulsion jackshaft drive
1шт.
15
159266C1
PULLEY, separator drive, Serial no. 1323 and above
1шт.
15
634673R1
PULLEY, separator drive, See unit listed under separator and propulsion jackshaft drive, Serial no. 1322 and below
1шт.
16
937930R1
V-BELT
Propulsion jackshaft drive, See unit listed under propulsion variable speed, jackshaft & drive
1шт.
17
633355R1
PULLEY, propulsion jackshaft driven, See unit listed under propulsion variable speed, jackshaft & drive
1шт.
18
633352R11
PULLEY
ASSY, propulsion drive
2шт.
18
633353R1
PULLEY, propulsion drive, See unit listed under propulsion variable speed, jackshaft and drive
2шт.
19
569963R1
PULLEY
propulsion drive belt tightener spring, See unit listed under propulsion variable speed, jackshaft and drive
1шт.
20
935952R1
BELT
propulsion drive, See unit listed under propulsion variable speed, jackshaft and drive
1шт.
21
568304R1
PULLEY, feeder drive, Serial no. 805 and below
1шт.
21
150493C11
PULLEY ASSY, feeder drive, Serial no. 806 and above, See unit listed under feeder and feed conveyor
1шт.
22
571467R1
PULLEY, platform jackshaft drive, Serial no. 805 and below
1шт.
22
571450R1
PULLEY, platform jackshaft drive, Serial no. 806 and above, See unit listed under feeder and feed conveyor chain
1шт.
23
634747R91
SPROCKET W/HUB, knife drive 31-T, See ref. no. 7 listed under knife and knife drive, Serial no. 805 and below
1шт.
23
936618R1
PULLEY, knife and knife, Serial no. 641 and above, See unit listed under knife and knife drive
1шт.
24
571266R91
SPROCKET ASSY.
SPROCKET W/HUB, reel lower jackshaft 17-T, See unit listed under platform jackshaft and drive knuckles
1шт.
See Figure Note.
1шт.
26
571282R91
SPROCKET W/HUB, reel upper jackshaft 26-T, See unit listed under platform jackshaft and drive knuckles
1шт.
See Figure Note.
1шт.
27
936620R1
BELT, knife drive, Serial no. 641 and above, See unit listed under knife and knife drive
1шт.
28
573235R91
SPROCKET W/HUB, knife driven 27-T, See unit listed under knife and knife drive, Serial no. 640 and below
1шт.
28
936619R1
PULLEY, knife driven, Serial no. 641 and above, See unit listed under knife and knife drive
1шт.
29
571279R91
SPROCKET W/HUB, reel lower jackshaft driven 40-T, See unit listed under platform jackshaft and drive knuckles
1шт.
See Figure Note.
1шт.
31
571440R11
SPROCKET ASSY.
SPROCKET W/BUSHING ASSY, reel drive idler 8-T, See unit listed under reel support arms and drive
1шт.
32
569018R2
SPROCKET ASSY.
SPROCKET, reel idler driven, slow speed, 16-T
1шт.
32
569019R2
DRIVE SPROCKET
SPROCKET, reel idler driven, intermediate speed, 14-T
1шт.
32
588771R2
SPROCKET ASSY.
SPROCKET, idler driven 12T, optional
1шт.
32
569020R2
SPROCKET ASSY.
SPROCKET, reel idler driven, fast speed, grain, 12-T, See unit listed under reel support arms and drive
1шт.
