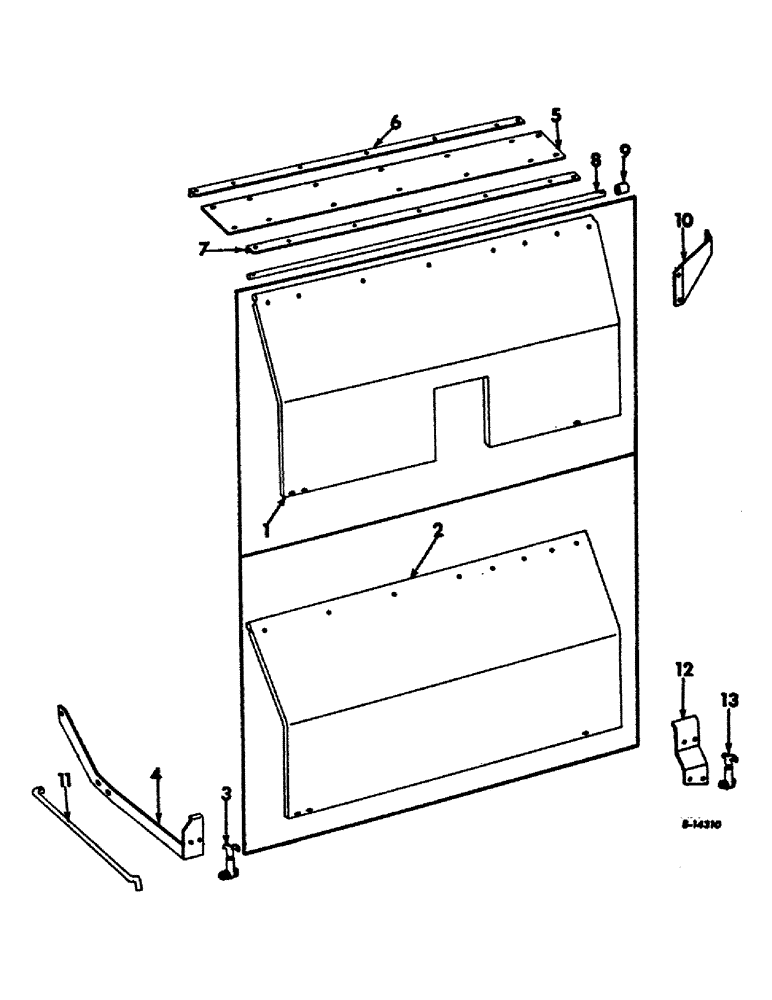

Запчасти Case IH 403 (258) - ENGINE COVER, LATCH AND SUPPORT, S/N 806 AND ABOVE, C-282 ENGINE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

939530R91

COVER ASSY, engine

1шт.

2

NOT USED IN THIS APPLICATION

1шт.

3

353443R91

LATCH ASSY.

LATCH ASSY

1шт.

104067

RIVET,But Hd, 3/16" x 1/2"

3/16 x 1/2 bt-hd

2шт.

4

654568R91

SUPPORT ASSY, engine cover left, Includes ref. no. 5

1шт.

5

NOT USED IN THIS APPLICATION

1шт.

6

NOT USED IN THIS APPLICATION

1шт.

7

NOT USED IN THIS APPLICATION

1шт.

8

939521R1

ROD, engine cover hinge

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

557264R1

WASHER

11/32 X 3/4 X 11 GA WASHER

4шт.

9

23323H

SPACER,1/4" Pipe x 1/2"

engine cover hinge rod

1шт.

10

939524R1

SUPPORT, engine cover right hand front

1шт.

111-404

CARRIAGE BOLT,Short NK, 7/16"-14 x 1 1/4", G5

7/16 X 1-1/4 CRG BOLT

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

NLS

NO LONGER SERVICED

7/16 NUT

1шт.

W6652

WASHER

15/32 X 1 X 11 GA WASHER

1шт.

11

632874R1

POST, engine cover

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

Q397

WASHER

11/32 X 3/4 X 16 GA WASHER

1шт.

12

939527R11

LATCH ASSY, engine cover right, Includes ref. no. 13

1шт.

17425R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 X 1 MACH BOLT

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 NUT

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

13

353443R91

LATCH ASSY.

LATCH ASSY

1шт.

104067

RIVET,But Hd, 3/16" x 1/2"

3/16 X 1/2 BUTTON-HD RIVET

2шт.

1001181R3

PRODUCT GRAPHIC, air cleaner instructions, combine Serial no. 805 & below

1шт.

2752906R1

PRODUCT GRAPHIC

dry air cleaner instruction decal, combine Serial no. 806 & above

1шт.

2750243R2

PRODUCT GRAPHIC, engine shut-off

1шт.

2752527R1

PRODUCT GRAPHIC

oil filter instructions, gasoline

1шт.

2751808R1

PRODUCT GRAPHIC

warning decal, For red vehicle

1шт.
