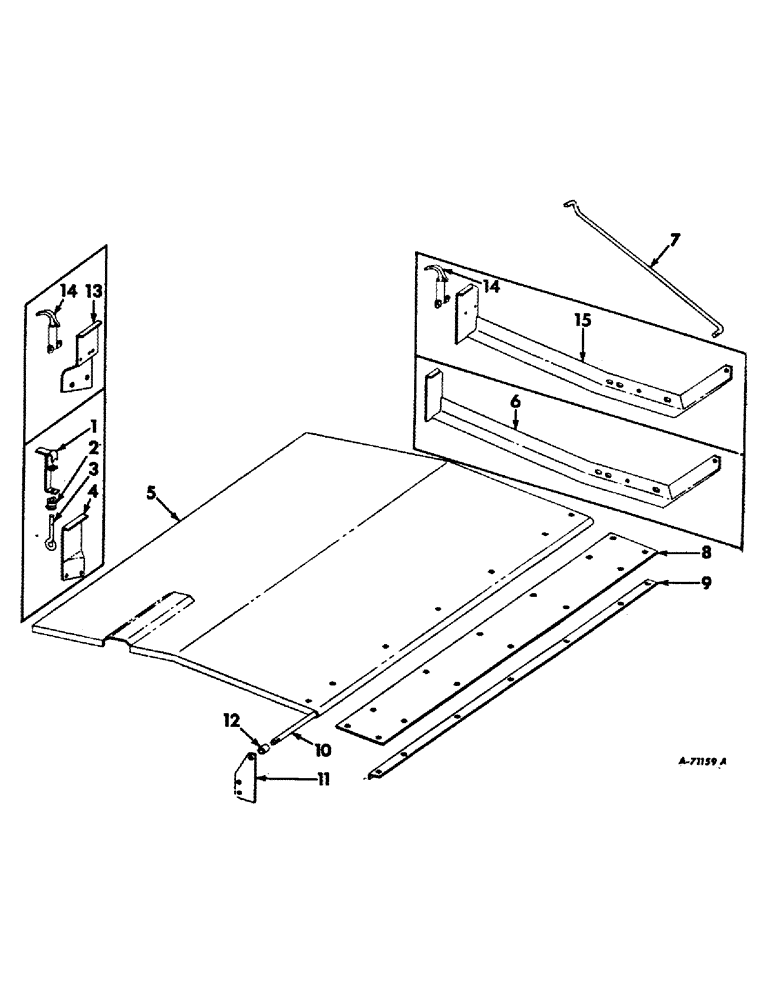

Запчасти Case IH 403 (257) - ENGINE COVER, LATCH AND SUPPORT, COMBINE S/N 805 AND BELOW, C-282 ENGINE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

NOT USED IN THIS APPLICATION

1шт.

2

NOT USED IN THIS APPLICATION

1шт.

3

NOT USED IN THIS APPLICATION

1шт.

4

NOT USED IN THIS APPLICATION

1шт.

5

936496R1

COVER, engine, combine Serial no. 640 & below

1шт.

5

936594R1

COVER W/STRAP, engine, combine, Serial no., Serial Range: 641-805

1шт.

6

NOT USED IN THIS APPLICATION

1шт.

7

632874R1

POST, engine cover

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

Q397

WASHER

11/32 X 3/4 X 16 GA WASHER

1шт.

8

633269R1

SEAL, engine cover hinge, grain tank, combine Serial no. 640 & below

1шт.

8

654940R1

SEAL

engine cover hinge, grain tank, combine Serial no., Serial Range: 641-805

1шт.

109084

NUT,1/4"-20, G5

14шт.

113957

SCREW,Sl Rnd Hd, 1/4" - 20 x 3/4"

1/4 X 3/4 SLT-RD-HD SCREW

14шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

14шт.

136661H

WASHER

17/64 X 1 X 16 GA WASHER

14шт.

9

634126R1

STIFFENER, engine cover seal, grain tank, combine Serial no. 640 & below

1шт.

9

654941R1

STIFFENER, engine cover seal, grain tank, combine Serial no., Serial Range: 641-805

1шт.

10

633270R1

ROD, engine cover hinge

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

557264R1

WASHER

11/32 X 3/4 X 11 GA WASHER

4шт.

11

633271R1

SUPPORT, ending cover RH, front

1шт.

179820

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

7шт.

12

U13039

SPACER

engine cover hinge rod

1шт.

13

654572R11

SUPPORT W/LATCH ASSY, engine cover RH, rear, Includes ref. no. 14

1шт.

14

353443R91

LATCH ASSY.

LATCH ASSY

2шт.

15

654568R91

SUPPORT W/LATCH ASSY, engine cover LH, Includes ref. no. 14

1шт.
