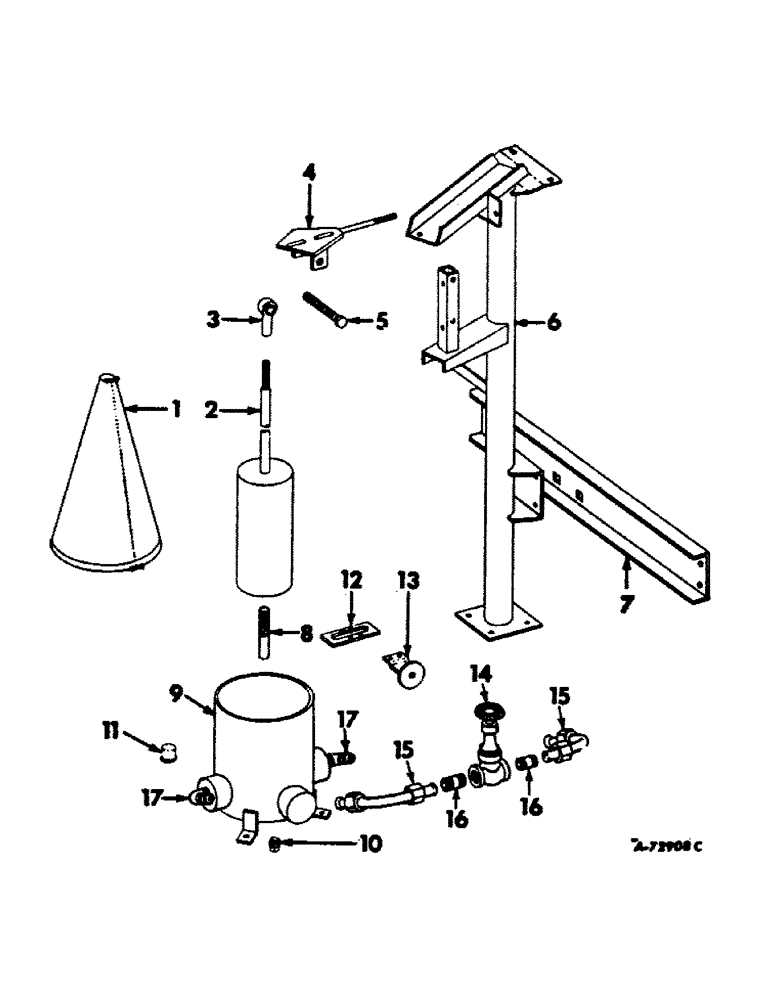

Запчасти Case IH 403 (129) - PENDULUM, DAMPER, COVER AND STAND (90) - PLATFORM, CAB, BODYWORK AND DECALS
№
Артикул
Название
Примечание
Количество
1
565877R91
COVER
ASSY, pendulum dampener
1шт.
2
565261R91
PENDULUM W/ROD, leveling valve
1шт.
3
562264R91
BEARING, pendulum pivot
1шт.
4
632499R91
PLATE W/BOLT, pendulum support
1шт.
1/2 X 1-1/2 MACH BOLT W/NUT
2шт.
7/16 NUT
2шт.
1/2 LOCK WASHER
2шт.
PO10535
WASHER
17/32 X 1 X 11 GA WASHER
2шт.
5
567152R1
BOLT, pendulum pivot, 3/4 x 5-3/4
1шт.
3/4 JAM NUT
3шт.
6
628458R91
STAND ASSY, pendulum and valve support
1шт.
5/16 X 3/4 CRG BOLT W/NUT
2шт.
7/16 X 1 CRG BOLT W/NUT
4шт.
1/4 X 3 MACH BOLT W/NUT
3шт.
7/16 X 1 MACH BOLT W/NUT
4шт.
1/2 X 2-3/4 MACH BOLT W/NUT
2шт.
1/4 LOCK WASHER
3шт.
7/16 LOCK WASHER
4шт.
1/2 LOCK WASHER
4шт.
5/16 LOCK WASHER
2шт.
7
628830R1
SUPPORT, pendulum
1шт.
7/16 X 1-1/4 MACH BOLT W/NUT
4шт.
7/16 LOCK WASHER
4шт.
8
654930R1
STUD, pendulum
1шт.
218445
NUT,Jam, 1"-8, G5
1 IN. JAM NUT
1шт.
9
935129R91
DAMPENER W/PISTON, pendulum
1шт.
3/8 X 3/4 MACH BOLT W/NUT
4шт.
5/16-24UNF X 5/8 CAP SCREW
4шт.
5/16 LOCK WASHER
4шт.
3/8 LOCK WASHER
4шт.
10
217-519
DRAIN PLUG,Sq Hd, 1/2"-14 NPTF
PLUG, , Pipe Sq Hd, 1/2"-14 NPTF
1шт.
11
119102
CAP,3/4" NPT
3/4 pipe, Serial no. 640 and below
1шт.
12
654929R1
END, pendulum dampener piston rod guide
2шт.
13
654925R1
PISTON W/WASHER, pendulum dampener, Serial no. 805 and below
4шт.
13
654925R1
PISTON W/WASHER, pendulum damper, Serial no. 806 and above
2шт.
13
150857C91
PISTON ASSY, pendulum dampener, Serial no. 806 and above
2шт.
5/16 X 5/8 CAP SCREW
8шт.
5/16 LOCK WASHER
8шт.
14
150855C91
VALVE ASSY, pendulum, Serial no. 806 and above
1шт.
15
150859C91
PIPE ASSY, pendulum by-pass, Serial no. 806 and above
2шт.
16
9402710
HYD CONNECTOR,7/8"-14, 37 Degree x 1/2"-14, NPTF
CONNECTOR, Serial no. 806 and above
2шт.
17
9402866
ELBOW,90 Degree, 7/8"-14, 37 Degree x 1/2"-14, NPTF
7/8-14 37 deg hyd flared tube 90 deg
2шт.
Выбрано товаров: 43
