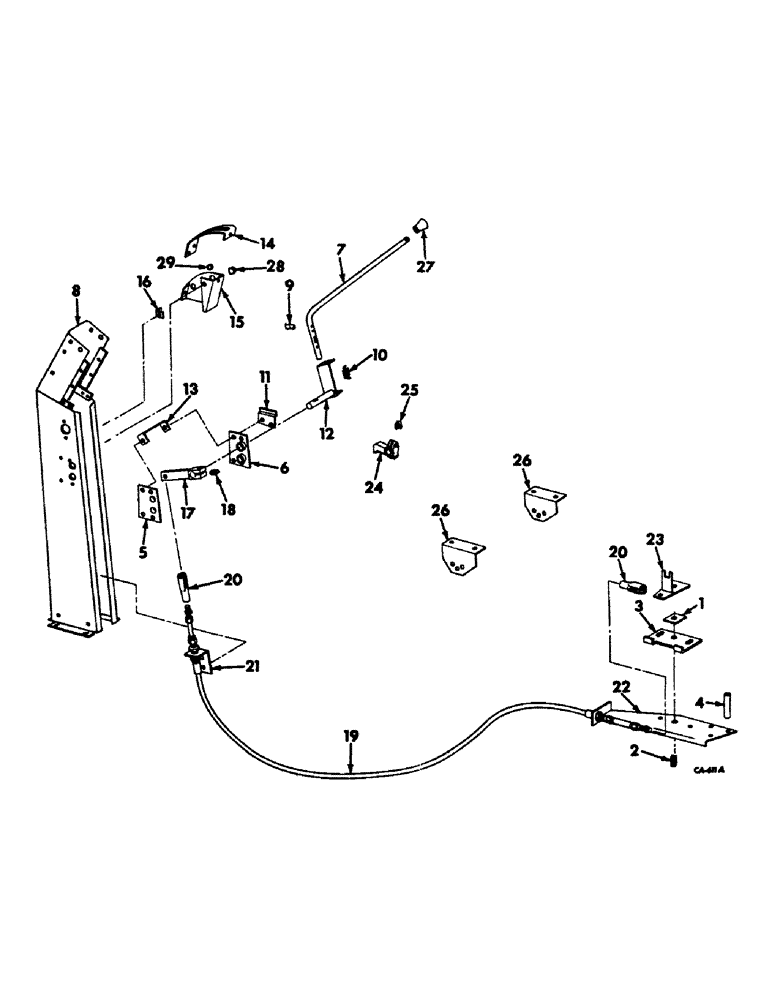

Запчасти Case IH 403 (108) - GROUND SPEED CONTROL, FOR HYDROSTATIC GROUND DRIVE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

150627C1

FRICTION WASHER

pump control arm

1шт.

2

28395H

SPRING

pump control arm

1шт.

3

171890C1

PLATE

ASSY, pump control arm

1шт.

17447R1

BOLT

7/16 x 1-1/4 hex-hd mach

2шт.

NLS

NO LONGER SERVICED

7/16 hex.

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

W6652

WASHER

15/32 x 1 x 16 ga

2шт.

4

573174R1

SPACER,5/8" Tube x 3"

pump control arm support plate

3шт.

5

627407R91

PLATE ASSY, platform lift control left

1шт.

17403R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 x 1/2 hex-hd mach

3шт.

17410R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4 x 3/4 hex-hd mach

1шт.

109084

NUT,1/4"-20, G5

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

6

627408R91

PLATE ASSY, platform lift control right

1шт.

17403R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 x 1/2 hex-hd mach

2шт.

17410R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4 x 3/4 hex-hd mach

1шт.

17424R1

BOLT,Hex, 1/4" - 20 x 1"

1/4 x 1 hex-hd mach

1шт.

109084

NUT,1/4"-20, G5

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

1шт.

7

155026C3

LEVER, ground speed control

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

350515R1

WASHER

21/32 x 1 x 16 ga

1шт.

8

COVER ASSY, steering, Refer to steering unit for listing

1шт.

9

152215C1

STRIP, ground speed indicator

1шт.

436668

SCREW, no. 6 x 7/8 C-Z pan hd

1шт.

134530

NUT,Hex, #6 - 32

1шт.

131044

LOCK WASHER

Lock, #6

1шт.

10

151924C1

SPRING

ground speed control lever

1шт.

17444R1

BOLT, 1/4 x 1-1/4 hex-hd mach

1шт.

109084

NUT,1/4"-20, G5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

557109R1

WASHER

17/64 x 1/2 x 16 ga

1шт.

11

171891C1

BRACKET ASSY, ground speed neutral stop

1шт.

12

171893C1

BRACKET

ASSY, ground speed lever

1шт.

13

151925C1

CLEVIS, steering cover tie

1шт.

14

151907C2

INDICATOR, ground speed

1шт.

453049

SCREW,Slotted Pan Hd, 1/4"-20 x 3/4"

1/4 x 3/4 C-Z pan-hd sltd mach

3шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

3шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

15

151908C2

COVER, ground speed control lever

1шт.

17043

BOLT, 1/4 x 1/2 hex-hd mach

1шт.

109084

NUT,1/4"-20, G5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

16

935612R1

BRACKET, ground speed control lever cover

1шт.

17403R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 x 1/2 hex-hd mach

1шт.

109084

NUT,1/4"-20, G5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

17

151915C91

ARM ASSY, ground speed control lever

1шт.

18

28459KA

WASHER

ground speed control lever arm

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

19

151909C91

CABLE PULLING GRIP

CABLE ASSY, ground speed control

1шт.

114502

JAM NUT,Jam, 5/16"-18, G5

2шт.

20

104037

CLEVIS

ground speed control cable

2шт.

NLS

NO LONGER SERVICED

5/16 x 31/32 rod end

2шт.

103374

COTTER PIN,3/32" x 1"

PIN, 3/32 x 1-1/4 cot.

2шт.

21

151914C1

ANGLE, cable anchor front

1шт.

14995R1

BOLT

3/8 x 3/4 sq-nk crg

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

22

151911C91

BRACKET ASSY, pump control

1шт.

23

151917C92

ARM

ASSY, pump control actuating

1шт.

17626R1

BOLT, 7/16 x 3 hex-hd mach

1шт.

NLS

NO LONGER SERVICED

7/16 hex.

2шт.

24

155025C1

PAWL, ground speed control lever

1шт.

17471R1

BOLT,Hex, 3/8" - 16 x 1 1/2"

3/8 x 1-1/2 hex-hd mach

1шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

25

28459KA

WASHER

ground speed control lever pawl

1шт.

26

627411R1

BRACKET, hydraulic valve

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

179848

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

27

163574C1

KNOB

ground speed control lever

1шт.

28

432327

HOLE PLUG BUTTON,1"

PLUG, 1-inch button

1шт.

29

432439

PLUG, 15/32-inch button

1шт.
