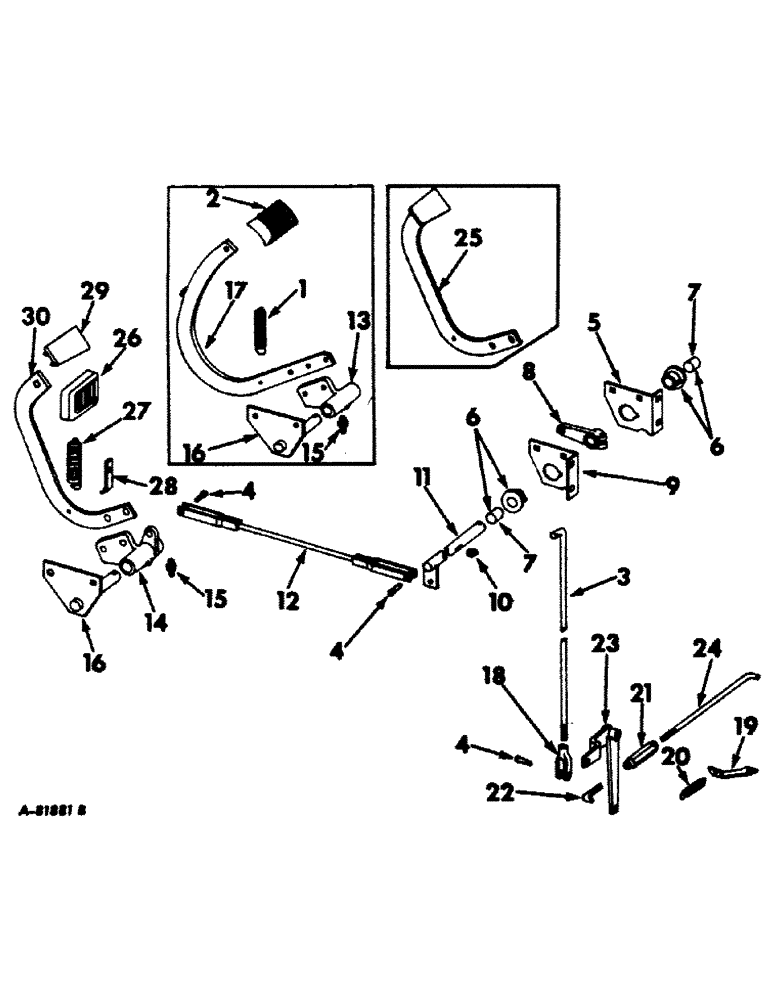

Запчасти Case IH 403 (096) - CLUTCH PEDAL AND CONNECTIONS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

2482A

SPRING

clutch arm return, Serial no. 805 and below

1шт.

2

627510R1

PEDAL, clutch, Serial no. 805 and below

1шт.

17471R11

BOLT

W/NUT, 3/8-16 x 1-1/2 hex-hd mach

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

3

155976C1

ROD, transmission clutch

1шт.

NUT, 3/8-24 hex. jam

1шт.

PIN, 1/8 x 3/4 cotter

1шт.

4

103496

CLEVIS PIN,3/8" x 1.060"

PIN, 3/8 x 1-3/32 rod end

4шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

4шт.

5

633284R1

BRACKET, clutch rear shaft, RH

1шт.

14995R11

BOLT

W/NUT, 3/8-16 x 3/4 crg

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

6

579464R11

BEARING ASSY, clutch

2шт.

7

561905R1

BUSHING

2шт.

8

627458R1

ARM, clutch rear shaft

1шт.

17496R11

BOLT

W/NUT, 3/8-16 x 1-3/4 hex-hd mach

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

9

633283R1

BRACKET, clutch rear shaft, LH

1шт.

14995R11

BOLT

W/NUT, 3/8-16 x 3/4 crg

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

10

28459KA

WASHER

clutch rear shaft arm

1шт.

11

627460R91

SHAFT ASSY, clutch rear

1шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

1шт.

21868V

WASHER

29/32 x 1-1/2 x 16 ga

5шт.

12

627514R91

ROD ASSY, clutch upper, Serial no. 805 and below

1шт.

12

939240R91

ROD ASSY, clutch upper, Serial no. 806 and above

1шт.

13

627513R1

PIVOT, clutch pedal arm, Serial no. 805 and below

1шт.

14

938870R1

PIVOT, clutch pedal arm, Serial no. 806 and above

1шт.

15

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

16

627463R91

SHAFT ASSY, clutch

1шт.

17426R11

BOLT

W/NUT, 3/8-16 x 1 hex-hd mach

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

21868V

WASHER

29/32 x 1-1/2 x 16 ga

3шт.

17

627457R11

ARM ASSY, clutch pedal, Serial no. 805 and below

1шт.

17496R11

BOLT

W/NUT, 3/8-16 x 1-1/4 hex-hd mach

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

18

104038

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS, 3/8 adjustable

1шт.

19

633701R1

BRACKET, clutch return spring

1шт.

20

165

SPRING

clutch return

1шт.

21

MA3973

TURNBUCKLE, clutch horizontal control

1шт.

22

565582R1

ROD, clutch lower outer control

1шт.

102635

NUT,3/8"-16, G5

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

575807R1

WASHER

13/32 x 1 x 11 ga

1шт.

23

588546R91

BELLCRANK ASSY, clutch

1шт.

24

628899R1

ROD, clutch lower inner

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

25

939636R91

LEVER ASSY, clutch pedal, Serial no., Serial Range: 806-1322

1шт.

17496R11

BOLT

W/NUT, 3/8-16 x 1-1/4 hex-hd mach

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

26

863426R1

PAD

clutch pedal, Serial no. 806 and above

1шт.

27

228

SPRING

return, Serial no. 806 and above

1шт.

28

938869R1

STRIP, lever stop, Serial no. 806 and above

1шт.

17411R11

BOLT

W/NUT, 5/16 x 3/4 hex-hd mach

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

29

163426C1

PEDAL

transmission clutch, Serial no. 1323 and above

1шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z sq-nk crg

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

NLS

NO LONGER SERVICED

3/8 C-Z med lock

1шт.

30

163429C1

LEVER, transmission clutch, Serial no. 1323 and above

1шт.

17471R1

BOLT,Hex, 3/8" - 16 x 1 1/2"

3/8 x 1-1/2 hex-hd mach

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.
