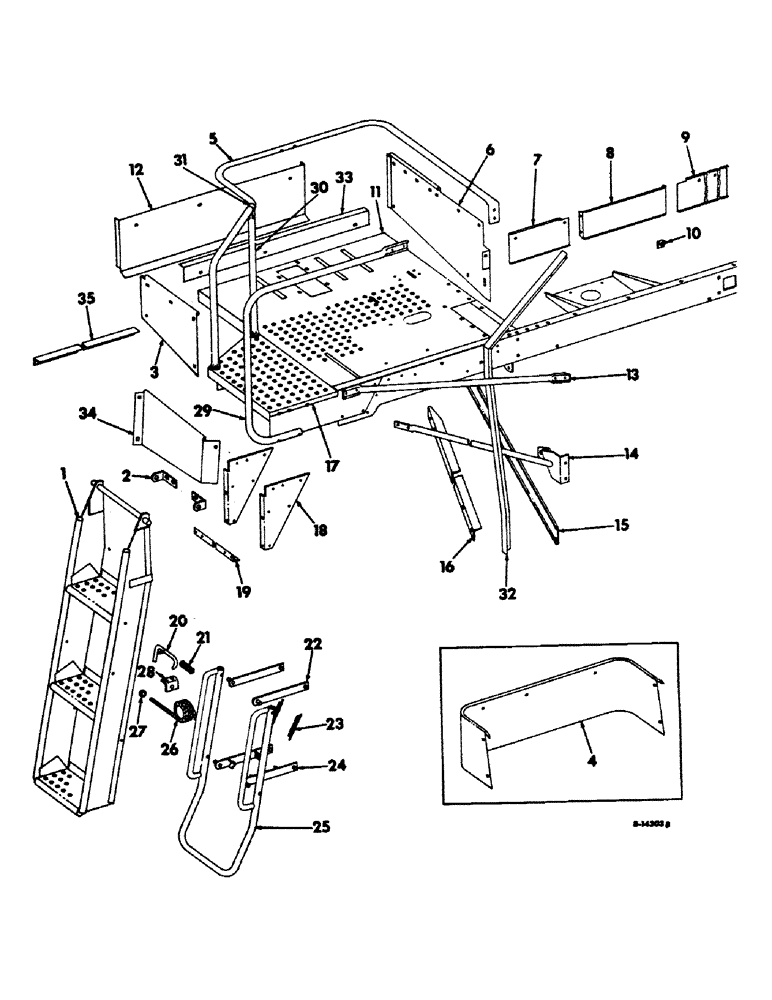

Запчасти Case IH 403 (085) - OPERATORS DECK, LADDER, SHROUD AND SUPPORTS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

589604R92

LADDER W/STEP, operators deck, Includes ref nos 20, 21 and 28

1шт.

5/16 X 3/4 MACH BOLT W/NUT

2шт.

5/16 LOCK WASHER

2шт.

11/32 X 1 X 16 GA WASHER

2шт.

615191R1

WASHER

29/32 X 1-1/4 X 16 GA WASHER

2шт.

2

627730R1

SUPPORT

HANGER, ladder

2шт.

3/8 X 1 MACH BOLT W/NUT

4шт.

3/8 LOCK WASHER

4шт.

Q1597

WASHER

13/32 X 3/4 X 16 GA WASHER

4шт.

3

631467R11

SHROUD W/ROD, operators deck, LH, Serial no. 805 and below

1шт.

5/16 X 1/2 CRG BOLT W/NUT

1шт.

5/16 X 3/4 CRG BOLT W/NUT

4шт.

5/16 LOCK WASHER

5шт.

3

939639R1

SHROUD, operators platform, LH, Serial no. 806 and below

1шт.

5/16 X 1/2 CRG BOLT W/NUT

4шт.

5/16 LOCK WASHER

4шт.

4

628277R91

SHROUD W/ROD, operators deck front, Serial no. 805 and below

1шт.

5/16 X 1/2 CRG BOLT W/NUT

5шт.

3/8 X 3/4 CRG BOLT W/NUT

1шт.

5/16 X 1/2 MACH BOLT W/NUT

2шт.

5/16 LOCK WASHER

7шт.

3/8 LOCK WASHER

1шт.

5

628284R1

RAIL, deck front, Serial no. 805 and below

1шт.

3/8 X 1 CRG BOLT W/NUT

2шт.

3/8 X 1 CD-PLTD MACH BOLT

2шт.

3/8 LOCK WASHER

5шт.

3/8 CD-PLTD LOCK WASHER

2шт.

5

939640R1

RAIL, operators platform front, Serial no. 806 and above

1шт.

3/8 X 1 C-Z CRG BOLT W/NUT

1шт.

3/8 X 1 C-Z MACH BOLT W/NUT

2шт.

3/8 X 1-1/2 C-Z MACH BOLT W/NUT

2шт.

3/8 C-Z LOCK WASHER

5шт.

6

627829R11

SHROUD W/ROD, operators deck, RH, Serial no. 805 and below

1шт.

5/16 X 3/4 CRG BOLT W/NUT

1шт.

3/8 X 1 CRG BOLT W/NUT

2шт.

5/16 X 1/2 MACH BOLT W/NUT

1шт.

5/16 LOCK WASHER

4шт.

3/8 LOCK WASHER

2шт.

6

939203R1

SHROUD, operators platform, RH, Serial no. 806 and above

1шт.

5/16 X 3/4 CRG BOLT W/NUT

5шт.

3/8 X 1 CRG BOLT W/NUT

2шт.

5/16 LOCK WASHER

5шт.

3/8 LOCK WASHER

2шт.

7

632721R1

COVER, deck support, LH

1шт.

8

628283R1

FILLER, deck support

1шт.

9

632722R1

COVER, deck support, RH

1шт.

10

631818R1

CLIP, operators deck support cover

4шт.

11

628822R91

DECK W/SUPPORTS, operator, Serial no. 805 and below

1шт.

11

939628R91

PLATFORM ASSY, operators, Serial no. 806 and above

1шт.

5/16 X 3/4 CRG BOLT W/NUT

2шт.

3/8 X 1/2 CRG BOLT W/NUT

7шт.

3/8 X 3/4 CRG BOLT W/NUT

5шт.

3/8 X 1 CRG BOLT W/NUT

2шт.

5/16 X 3/4 MACH BOLT W/NUT

2шт.

NO. 6 NUT

2шт.

110742

NO. 6 X 1 SLT-RD-HD MACH SCREW

2шт.

NO. 6 LOCK WASHER

2шт.

5/16 LOCK WASHER

4шт.

3/8 LOCK WASHER

14шт.

144226

GROMMET,1/4" ID x 5/8" x .062", Diag. Cut

NO. 1 PLAIN RUBBER GROMMET

1шт.

Q399

WASHER

11/32 X 1 X 16 GA WASHER

2шт.

12

939202R11

SHROUD ASSY, operators platform front, Serial no. 806 and above

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z WHIZ LOCK NUT

3шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

443507

CABLE

1/4 X 1/2 C-Z PAN HD SLT SCREW

2шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 C-Z TRUSS HD WHIZ LOCK SCREW

3шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

13

627826R1

BRACE, operators deck to separator cab

1шт.

3/8 X 1 MACH BOLT W/NUT

4шт.

3/8 LOCK WASHER

4шт.

14

628278R91

SUPPORT, w/bracket, front, Serial no. 805 and below

1шт.

1/2 X 1-1/4 CRG BOLT W/NUT

2шт.

3/8 X 1 MACH BOLT W/NUT

3шт.

7/16 X 1 MACH BOLT W/NUT

2шт.

7/16 X 1-1/4 MACH BOLT W/NUT

2шт.

3/8 LOCK WASHER

3шт.

7/16 LOCK WASHER

4шт.

1/2 LOCK WASHER

2шт.

13/32 X 3/4 X 16 GA WASHER

1шт.

14

627821R91

BRACE ASSY, LH front post, Serial no. 806 and above

1шт.

3/8 X 1 MACH BOLT W/NUT

3шт.

7/16 X 1-1/4 MACH BOLT W/NUT

2шт.

3/8 LOCK WASHER

3шт.

7/16 LOCK WASHER

2шт.

Q1597

WASHER

13/32 X 3/4 X 16 GA WASHER

1шт.

15

627825R1

SUPPORT, operators deck, RH

1шт.

3/8 X 1 CRG BOLT W/NUT

2шт.

3/8 X 1-1/4 MACH BOLT W/NUT

1шт.

3/8 LOCK WASHER

3шт.

16

628281R1

SUPPORT, center

1шт.

17

628270R91

EXTENSION W/SUPPORT, deck

1шт.

3/8 X 3/4 MACH BOLT W/NUT

7шт.

3/8 LOCK WASHER

7шт.

18

574489R1

BRACKET, ladder

2шт.

3/8 X 1 CRG BOLT W/NUT

1шт.

3/8 X 3/4 MACH BOLT W/NUT

4шт.

3/8 X 1 MACH BOLT W/NUT

2шт.

3/8 LOCK WASHER

7шт.

19

574488R1

BAR, bumper

1шт.

5/16 X 3/4 MACH BOLT W/NUT

2шт.

5/16 NUT

1шт.

113114

SLEEVE

5/16 X 1 SLT-FL-HD MACH SCREW

1шт.

5/16 LOCK WASHER

3шт.

20

654670R1

LATCH, operators deck ladder, Serial no. 805 and below

1шт.

20

151452C1

HOOK ASSY, operators deck ladder, Serial no. 806 and above

1шт.

1/8 X 1 COT. PIN

1шт.

13/32 X 3/4 X 16 GA WASHER

2шт.

21

140DS

SPRING, latch

1шт.

22

589611R91

LINK ASSY, retract ladder upper

2шт.

1/8 X 1 COT. PIN

6шт.

23

165

SPRING

serial no. 1672 and below

2шт.

23

622016R1

SPRING

serial no. 1673 and above

2шт.

24

589605R91

LINK ASSY, retract ladder lower

2шт.

1/8 X 1 COT. PIN

2шт.

25

174933C1

STEP, retractable ladder

1шт.

26

ROPE, lift, 3/8 dia. x 8-ft long, procure locally

1шт.

27

552219R91

GROMMET

1шт.

28

654671R1

BRACKET, operators deck ladder latch

1шт.

5/16 X 1 CRG BOLT W/NUT

2шт.

5/16 LOCK WASHER

2шт.

Q1597

WASHER

13/32 X 3/4 X 16 GA WASHER

2шт.

29

628285R11

RAIL W/STIFFENER, deck rear, Serial no. 805 and below

1шт.

29

939641R11

RAIL ASSY, operators platform rear, Serial no. 806 and above

1шт.

5/16 X 3/4 CRG BOLT W/NUT

2шт.

3/8 X 2 MACH BOLT W/NUT

2шт.

5/16 LOCK WASHER

2шт.

3/8 LOCK WASHER

2шт.

30

631421R1

BRACE, deck front rail

1шт.

3/8 X 1 CRG BOLT W/NUT

1шт.

3/8 LOCK WASHER

1шт.

31

569740R1

CLIP, operators deck front rail brace

1шт.

1/4 X 1-1/2 CD-PLTD MACH BOLT W/NUT

1шт.

1/4 CD-PLTD LOCK WASHER

1шт.

32

628282R1

ANGLE, support rear

1шт.

33

939205R1

ANGLE, operators platform front shroud top, Serial no. 806 and above

1шт.

34

631467R11

SHROUD ASSY, operators platform left front, Serial no. 806 and above

1шт.

35

155019C1

ANGLE, operator platform extension support, Serial no. 940 and above

1шт.
