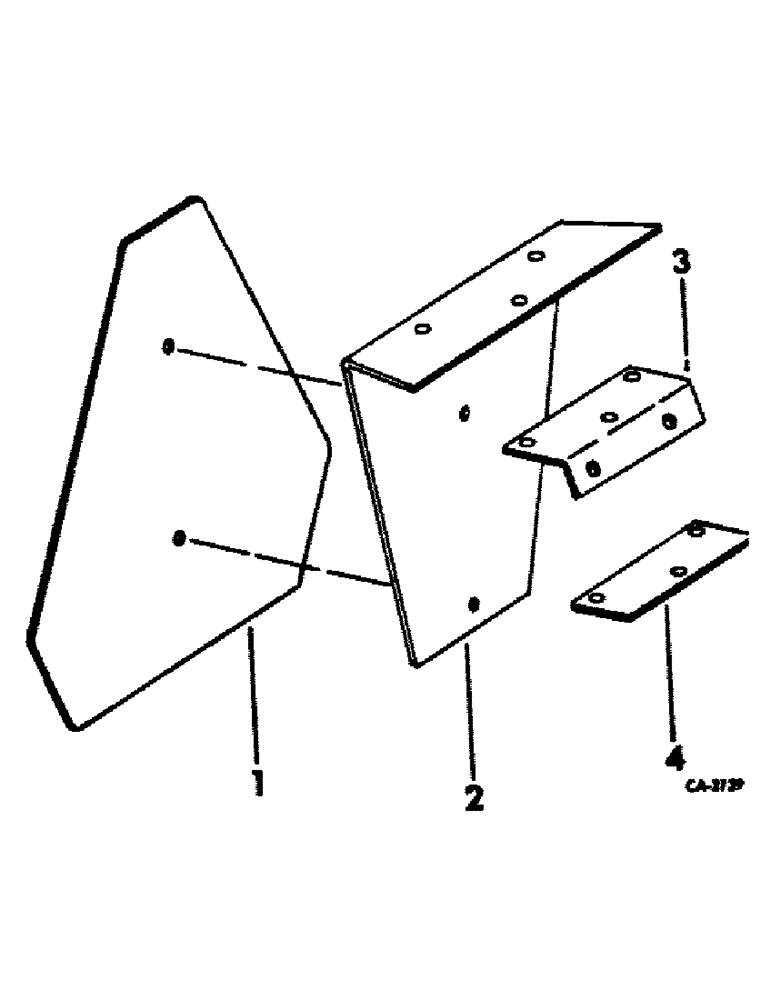

Запчасти Case IH 403 (055) - SLOW MOVING VEHICLE SERVICE PACKAGE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

202013C1

PRODUCT GRAPHIC

EMBLEM, SMV

1шт.

275-5478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

SCREW, 1/4 x 1/2 hex-hd tap

2шт.

2

171987C1

SUPPORT, SMV emblem

1шт.

18766R1

BOLT,Hex, 5/16"-18 x 1 3/4", G2

5/16 x 1-3/4 hex-hd mach

3шт.

120376

NUT,5/16"-18, G5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

3

171989C1

PLATE, SMV emblem support clamp

1шт.

4

171988C1

PLATE, SMV emblem support

1шт.

275-5478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

SCREW, 1/4 x 1/2 hex-hd tap

2шт.
