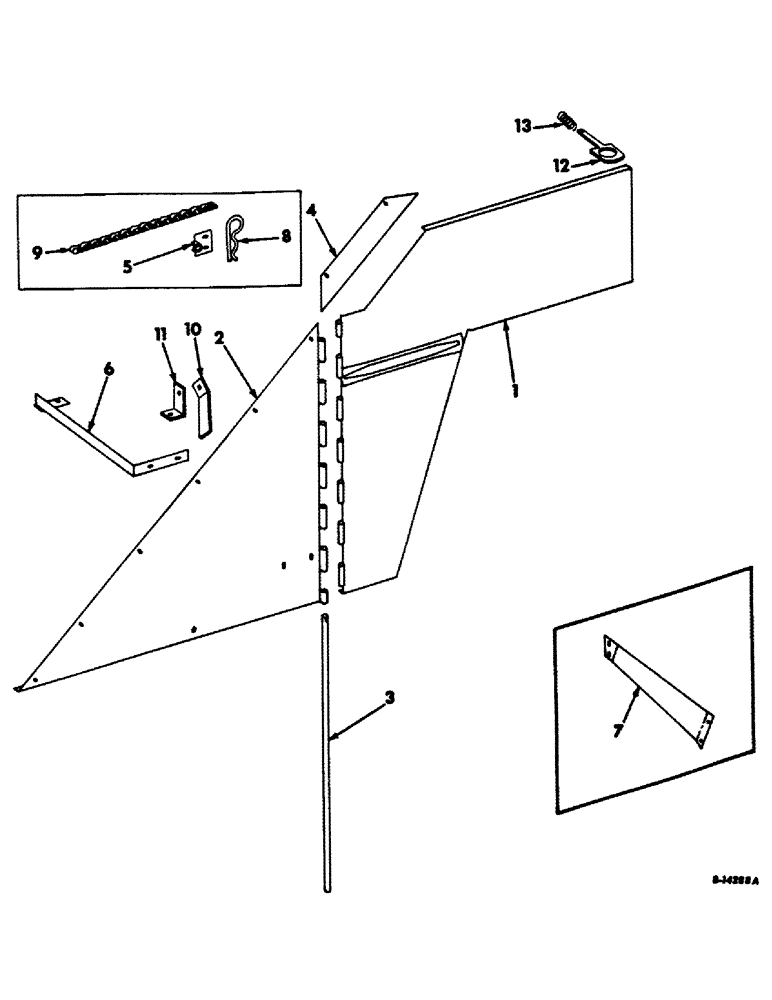

Запчасти Case IH 403 (054) - SEPARATOR SHIELDS, RH, OPTIONAL S/N 805 AND BELOW, STANDARD S/N 806 AND ABOVE (90) - PLATFORM, CAB, BODYWORK AND DECALS
№
Артикул
Название
Примечание
Количество
1
938785R91
SHIELD ASSY, separator, RH, front, Serial no. 1089 and below
1шт.
1
155187C91
SHIELD ASSY, separator, RH, front, Serial no. 1090 and above
1шт.
2
938798R91
SHIELD ASSY, separator, RH, rear
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z whiz-lock
8шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 C-Z truss-hd whiz-lock
6шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 C-Z truss-hd whiz-lock
2шт.
3
938792R1
ROD, separator, RH, shield hinge
1шт.
PIN, 1/8 x 3/4 cotter
1шт.
4
938773R1
SHIELD, separator, RH, upper
1шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z whiz-lock
1шт.
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5/16 x 1/2 C-Z truss-hd whiz-lock
1шт.
5
938800R91
LATCH ASSY, separator shield, Serial no. 1089 and below
1шт.
6
152216C1
ANGLE ASSY, separator, RH, shield
1шт.
18794R1
BOLT,Hex, 7/16" - 14 x 1", Gr 2
7/16 x 1 C-Z mach
1шт.
271501
SOCKET
NUT, 7/16 C-Z hex.
1шт.
120383
LOCK WASHER,Helical Spring, 7/16"
WASHER, LOCK, 7/16"
1шт.
7
939998R91
REINFORCEMENT ASSY, separator, RH, shield front, Serial no. 1089 and below
1шт.
7
155180C91
REINFORCEMENT ASSY, separator, RH, shield front, Serial no. 1090 and above
1шт.
17351R1
CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2
BOLT, 3/8 x 1 C-Z crg
2шт.
120377
NUT,3/8" - 16, Gr 5
2шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
2шт.
8
153528C1
COTTER PIN
shield retainer quick attachable, Serial no. 1089 and below
1шт.
9
CHAIN ASSY, shield retainer pin, no. 45 sash, 14 links, Serial no. 1089 and below
1шт.
432-1220
COTTER PIN,3/16" x 1 1/4"
Pin, Split (Cotter), 3/16" x 1 1/4"
1шт.
10
150558C1
BRACE, separator, RH, shield
1шт.
11
150559C1
ANGLE, separator, RH, shield
1шт.
12872R1
BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd
CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd
1шт.
7500032
BUSHING
NUT, 5/16 C-Z wing
1шт.
12
454502R1
LATCH
separator shield, Serial no. 1090 and above
1шт.
1/8 X 3/4 COTTER PIN
1шт.
615034R1
3/8 X 1 X 16 GA WASHER
1шт.
13
M296
SPRING
separator shield latch, Serial no. 1090 and above
1шт.
Выбрано товаров: 32
