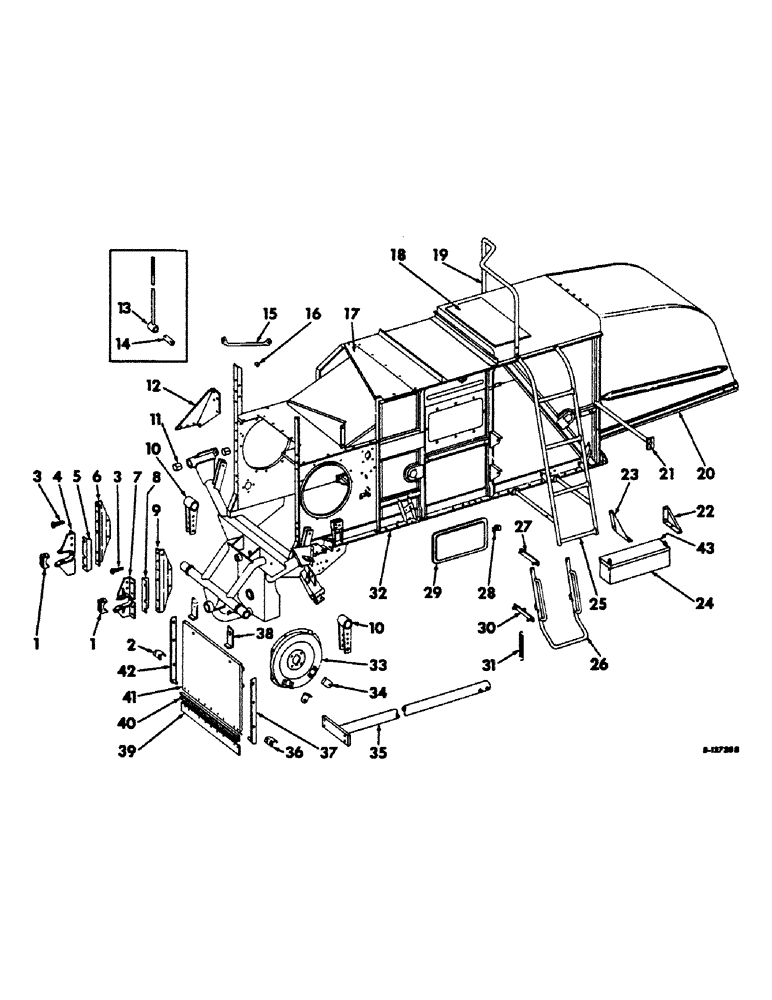

Справочник запчастей Case IH 403 (050) - SEPARATOR, HOOD AND SERVICE LADDER (90) - PLATFORM, CAB, BODYWORK AND DECALS со схемами

1

628332R1

BLOCK

RETAINER, feeder pivot shaft

2шт.

2

569624R1

CLAMP

CLIP, cylinder door support, RH

1шт.

1/4 NUT

2шт.

1/4 X 1 SLT-RD-HD SCREW

2шт.

1/4 LOCK WASHER

2шт.

3

427566

BOLT,Hex, 1/2"-13 x 1 1/2", G8, Full Thd

feeder pivot bracket attach

8шт.

1/2 NUT

4шт.

1/2 JAM NUT

2шт.

482253R1

1/2 FLANGE WHIZ-LOCK NUT

2шт.

1/2 LOCK WASHER

8шт.

PO10535

WASHER

17/32 X 1-1/4 X 11 GA WASHER

4шт.

4

628667R91

BRACKET W/GUSSET, feeder pivot, RH

1шт.

5/8 X 5-1/2 CAP SCREW

1шт.

5/8 NUT

1шт.

5/8 LOCK WASHER

1шт.

5

172262C1

SPACER

SEAL, feeder pivot plate, RH

1шт.

6

634699R1

REINFORCEMENT, front separator post, RH

1шт.

3/8 X 3/4 CRG BOLT W/NUT

2шт.

1/2 X 1 MACH BOLT W/NUT

2шт.

3/8 LOCK WASHER

2шт.

1/2 LOCK WASHER

2шт.

7

628323R91

BRACKET W/GUSSET, feeder pivot, LH

1шт.

5/8 X 5-1/2 CAP SCREW

1шт.

5/8 NUT

1шт.

5/8 LOCK WASHER

1шт.

8

172261C1

SPACER

SEAL, feeder pivot plate, LH

1шт.

9

634698R1

REINFORCEMENT, front separator post, LH

1шт.

3/8 X 3/4 CRG BOLT W/NUT

2шт.

1/2 X 1 MACH BOLT W/NUT

2шт.

3/8 LOCK WASHER

2шт.

1/2 LOCK WASHER

2шт.

10

628257R91

ARM W/TUBE, pivot

2шт.

5/8 X 1-1/2 CRG BOLT W/NUT

6шт.

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8 - 67-1/2 deg elbow lubrication

2шт.

5/8 LOCK WASHER

6шт.

11

571151R1

BUSHING

leveling cylinder bracket

2шт.

12

628844R1

BRACE, front beam

1шт.

13

631531R91

ANCHOR W/ROD, storage side leveling

1шт.

1-1/4 NUT

2шт.

1-9/32 X 2 X 11 GA WASHER

2шт.

14

631534R1

PIN, storage side leveling anchor

1шт.

520174R1

CLIP, SPRING

QUICK ATTACHABLE COTTER PIN

2шт.

15

634982R1

BRACE, separator to operator, S deck RH

1шт.

1/2 X 1-3/4 CRG BOLT W/NUT

1шт.

1/2 LOCK WASHER

1шт.

16

569665R1

SPACER

front beam brace

1шт.

17

629842R1

EXTENSION, separator top

1шт.

5/16 X 3/4 CRG BOLT W/NUT

2шт.

118832

DRIVE BUSHING

NO. 10 X 1/2 SELF-TAPPING SCREW

4шт.

5/16 LOCK WASHER

2шт.

18

568700R91

DOOR W/STIFFENER, separator top

1шт.

19

634387R1

HAND RAIL, service ladder

1шт.

5/16 X 1-1/2 MACH BOLT W/NUT

4шт.

5/16 LOCK WASHER

4шт.

20

628906R91

HOOD ASSY, separator, Serial no. 805 and below

1шт.

20

939549R91

HOOD ASSY, separator, Serial no. 806 and above

1шт.

5/16 X 3/4 MACH BOLT W/NUT

21шт.

5/16 X 1 MACH BOLT W/NUT

3шт.

3/8 X 1/2 MACH BOLT W/NUT

2шт.

3/8 X 3/4 MACH BOLT W/NUT

2шт.

5/16 LOCK WASHER

1шт.

3/8 LOCK WASHER

1шт.

11/32 X 3/4 X 16 GA WASHER

6шт.

21

631201R91

TIE W/PAD, separator rear cross

1шт.

22

654899R91

SUPPORT W/BRACE, tool box rear, side leveling

1шт.

23

654902R1

SUPPORT, tool box front, side leveling

1шт.

24

629767R91

BOX ASSY, tool, Includes ref no. 43

1шт.

1/4 X 1-1/4 MACH BOLT W/NUT

4шт.

1/4 X 3/4 COTTER PIN

2шт.

B2101/2

AXLE PIN

1/4 X 1/2 DLD PIN

2шт.

1/4 LOCK WASHER

4шт.

557109R1

WASHER

17/64 X 1/2 X 16 GA WASHER

4шт.

136661H

WASHER

17/64 X 1 X 16 GA WASHER

4шт.

25

628997R91

LADDER W/STEP, service

1шт.

3/8 X 1 MACH BOLT W/NUT

2шт.

1/8 X 3/4 COTTER PIN

2шт.

1233

CASE

3/8 X 1-5/8 DLD PIN

2шт.

3/8 LOCK WASHER

2шт.

26

174930C1

STEP W/STOP, retractable

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

5шт.

120377

NUT,3/8" - 16, Gr 5

5шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

5шт.

27

589611R91

LINK ASSY, ladder step upper

2шт.

1/8 X 1 COTTER PIN

4шт.

28

565449R1

CLIP

straw rack inspection door

16шт.

5/16 X 3/4 CRG BOLT

16шт.

935736R1

NUT, WING

5/16 WING NUT

16шт.

29

568807R1

DOOR, straw rack inspection

2шт.

30

633154R91

LINK ASSY, ladder step lower

2шт.

1/8 X 1 COTTER PIN

4шт.

31

165

SPRING

retractable ladder step

2шт.

3/16 X 1-1/2 COTTER PIN

2шт.

32

629036R91

CAB ASSY, separator, side leveling, Serial no. 805 and below

1шт.

32

939991R91

CAB ASSY, separator, side leveling, Includes ref no. 11, Serial no. 806 and above, For propulsion drive

1шт.

32

629037R91

CAB ASSY, separator, full leveling, Serial no. 805 and below

1шт.

32

939992R91

CAB ASSY, separator, full leveling, Includes ref no. 11, Serial no. 806 and above, For propulsion drive

1шт.

32

167746C91

BODY ASSY, separator, full leveling, Includes ref no. 11, For hydrostatic drive

1шт.

5/16 X 1 CRG BOLT

16шт.

3/8 X 3/4 CRG BOLT W/NUT

9шт.

1/2 X 1-1/4 CRG BOLT

1шт.

1/2 X 1-1/2 CRG BOLT W/NUT

3шт.

1/4 X 3/8 MACH BOLT

5шт.

5/16 X 3/4 MACH BOLT

9шт.

3/8 X 3/4 MACH BOLT W/NUT

1шт.

1/2 X 1-1/2 MACH BOLT W/NUT

1шт.

1/2 X 1-3/4 MACH BOLT W/NUT

3шт.

5/8 X 1-1/2 MACH BOLT W/NUT

9шт.

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1/4 STRAIGHT LUBRICATION FITTING

1шт.

1/8 X 3/4 COTTER PIN

1шт.

3/16 X 1 COTTER PIN

2шт.

5/16 NUT

14шт.

3/8 NUT

9шт.

1/2 NUT

14шт.

129-419

WING NUT,5/16"-18

5/16 WING NUT

16шт.

9413941

NUT,1/2"-13, GA

1/2 STOVER NUT

2шт.

9413944

NUT

5/8 STOVER NUT

3шт.

1/4 X 3/4 CAP SCREW

5шт.

1/4 X 1-1/2 CAP SCREW

4шт.

3/8 X 3/4 CAP SCREW

3шт.

161068R1

BOLT,Spcl, Hex, 5/8" - 11 x 1 1/2"

3шт.

1/2 X 1-1/2 CAP SCREW

2шт.

364257R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

1/2 X 1-3/4 CAP SCREW

7шт.

1/2 X 2 CAP SCREW

1шт.

156197R1

7/16 X 5 CAP SCREW Hex, 7/16"-20 x 5", G8

1шт.

1/2 X 2 CAP SCREW

1шт.

5/16 X 3 DLD PIN

1шт.

590276R1

7/16 X 4-3/8 DLD PIN

1шт.

1/2 X 2 DLD PIN

1шт.

1/4 LOCK WASHER

12шт.

5/16 LOCK WASHER

46шт.

3/8 LOCK WASHER

22шт.

1/2 LOCK WASHER

34шт.

5/8 LOCK WASHER

1шт.

11/32 X 3/4 X 16 GA WASHER

9шт.

17/32 X 1 X 16 GA WASHER

1шт.

551177R1

WASHER

21/32 X 1-1/4 X 16 GA WASHER

4шт.

33

633513R91

DOOR W/BOLT, cylinder, LH

1шт.

33

633514R91

DOOR W/BOLT, cylinder, RH

1шт.

7/16 X 1 CRG BOLT W/NUT

2шт.

1/2 NUT

8шт.

1/2 LOCK WASHER

8шт.

7/16 LOCK WASHER

2шт.

34

633518R1

DOOR

concave inspection

4шт.

35

628814R91

FRAME W/PIPE, front beam to rear end, side leveling

1шт.

36

569623R1

CLAMP

CLIP, cylinder door, LH

1шт.

1/4 NUT

2шт.

1/4 X 1 SLT-RD-HD-MACH SCREW

2шт.

1/4 LOCK WASHER

2шт.

557109R1

WASHER

17/64 X 1/2 X 16 GA WASHER

2шт.

37

627705R91

RETAINER W/STUD, cylinder door, LH

1шт.

5/16 X 1 MACH BOLT

3шт.

5/16 LOCK WASHER

3шт.

11/32 X 3/4 X 16 GA WASHER

3шт.

38

569362R1

HANDLE, cylinder door

2шт.

39

568875R1

DOOR SEAL

cylinder door

1шт.

40

569470R1

STRIP, cylinder door seal

1шт.

41

627709R91

DOOR W/STIFFENER, cylinder front

1шт.

5/16 X 1-1/4 CRG BOLT W/NUT

2шт.

1/4 NUT

5шт.

1/4 X 1 SLT-RD-HD SCREW

5шт.

5/16 LOCK WASHER

2шт.

11/32 X 1 X 16 GA WASHER

6шт.

13/32 X 1 X 16 GA WASHER

2шт.

42

627706R91

SUPPORT

RETAINER W/STUD, cylinder front door, RH

1шт.

5/16 X 1 MACH BOLT

3шт.

5/16 LOCK WASHER

3шт.

11/32 X 3/4 X 16 GA WASHER

3шт.

43

629769R1

TOP, tool box

1шт.

1/8 X 3/4 COTTER PIN

2шт.

B21101/2

1/4 X 1/2 DLD PIN

2шт.

557109R1

WASHER

17/64 X 1/2 X 16 GA WASHER

4шт.
