(199) - GUIDE WHEEL AXLE SHIELD, FOR SIDE LEVELING COMBINES ONLY

Запчасти Case IH 403 (199) - GUIDE WHEEL AXLE SHIELD, FOR SIDE LEVELING COMBINES ONLY (88) - ACCESSORIES

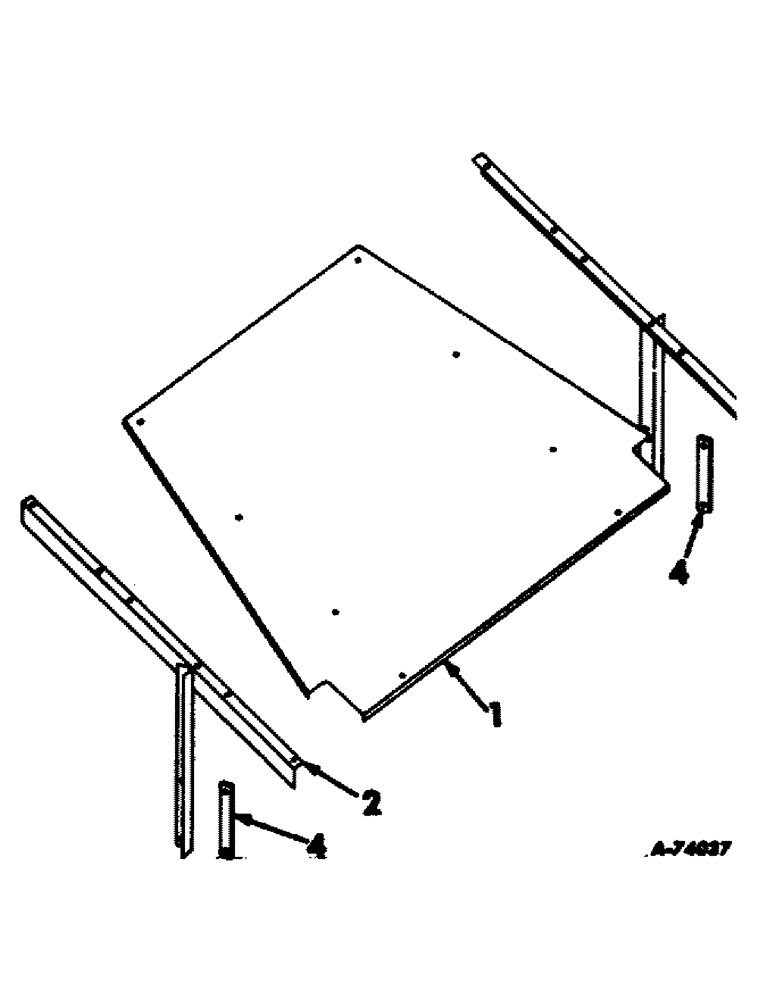

Схема запчастей Case IH 403 - (199) - GUIDE WHEEL AXLE SHIELD, FOR SIDE LEVELING COMBINES ONLY (88) - ACCESSORIES
1
4
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

634959R1

SHIELD, guide wheel axle

1шт.

5/16 X 3/4 CRG BOLT W/NUT

8шт.

5/16 LOCK WASHER

8шт.

2

654903R91

SUPPORT W/ANGLE, guide wheel axle shield, LH

1шт.

3

654904R91

SUPPORT W/ANGLE, guide wheel axle shield, RH

1шт.

4

574765R1

CLAMP, guide wheel axle shield

2шт.

3/4 X 4-1/4 CRG BOLT W/NUT

4шт.

3/8 LOCK WASHER

4шт.
