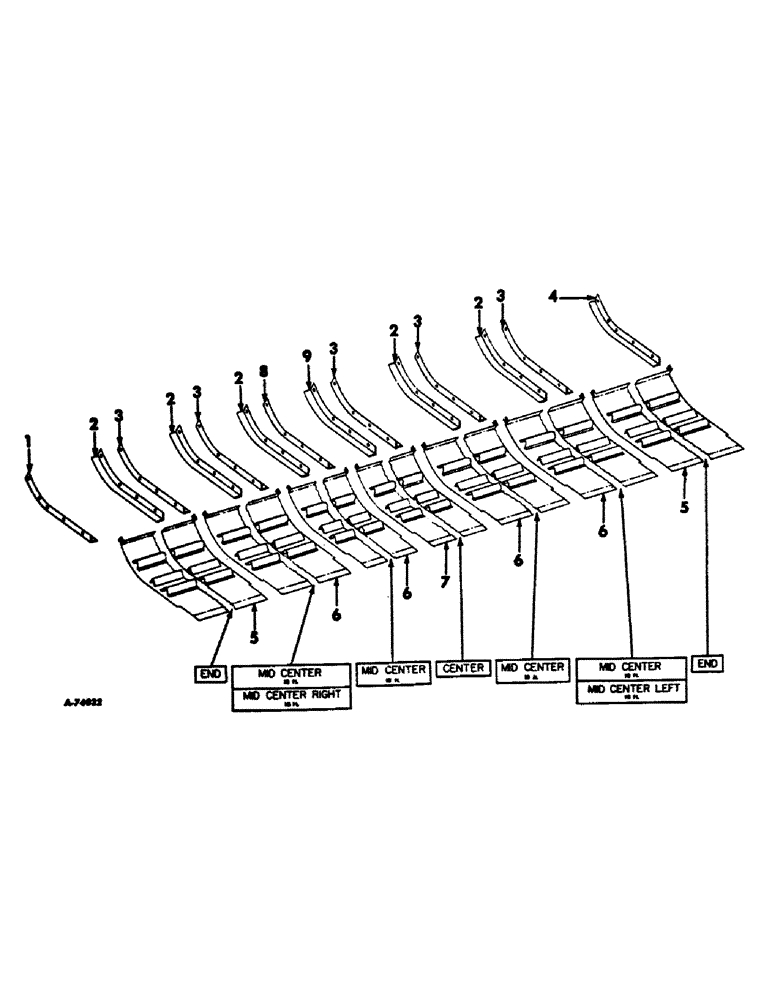

Запчасти Case IH 403 (198) - PLATFORM BOTTOM SHIELD (88) - ACCESSORIES

1

571591R1

SUPPORT, platform bottom end shield, RH, 1 used 16-ft, 2 used 18-ft

1шт.

2

572902R1

SUPPORT, platform bottom shield, LH, 3 used 16-ft platform, 5 used 18-ft platform

1шт.

7/16 X 1 MACH BOLT W/NUT

1шт.

7/16 X 1-1/4 MACH BOLT W/NUT

1шт.

7/16 LOCK WASHER

1шт.

3

572903R1

SUPPORT, platform bottom shield, RH, 3 used 16-ft platform, 5 used 18-ft platform

1шт.

7/16 X 1 MACH BOLT W/NUT

1шт.

7/16 X 1-1/4 MACH BOLT W/NUT

1шт.

7/16 LOCK WASHER

1шт.

4

571590R1

SUPPORT, platform bottom end shield, LH 1 used 16-ft, 2 used 18-ft

1шт.

5

583507R92

SHIELD W/ANGLE AND CLIP, platform bottom end, 16-ft platform

2шт.

5

583143R92

SHIELD W/ANGLE AND CLIP, platform bottom end, 18-ft platform

2шт.

7/16 X 1-1/2 MACH BOLT W/NUT

1шт.

7/16 LOCK WASHER

1шт.

W6652

WASHER

15/32 X 1 X 16 GA WASHER

1шт.

6

583146R92

SHIELD W/ANGLE AND CLIP, platform bottom mid center outer, 2 used 18-ft platforms

1шт.

6

573017R93

SHIELD W/ANGLE AND CLIP, platform bottom mid center, LH, 16-ft platforms

1шт.

6

573018R93

SHIELD W/ANGLE AND CLIP, platform bottom mid center, RH, 16-ft platform

1шт.

6

589683R91

SHIELD W/ANGLE AND CLIP, platform bottom mid center inner, 18-ft platform

2шт.

7/16 X 1-1/2 MACH BOLT W/NUT

1шт.

7/16 LOCK WASHER

4шт.

W6652

WASHER

15/32 X 1 X 16 GA WASHER

16шт.

7

574766R91

SHIELD W/ANGLE AND CLIP, platform bottom center

1шт.

7/16 X 1-1/2 MACH BOLT W/NUT

2шт.

7/16 LOCK WASHER

2шт.

W6652

WASHER

15/32 X 1 X 16 GA WASHER

6шт.

8

573861R11

SUPPORT W/NUT, platform bottom shield center, RH

1шт.

7/16 X 1 MACH BOLT

2шт.

7/16 LOCK WASHER

2шт.

9

573860R11

SUPPORT W/NUT, platform bottom shield center, LH

1шт.
