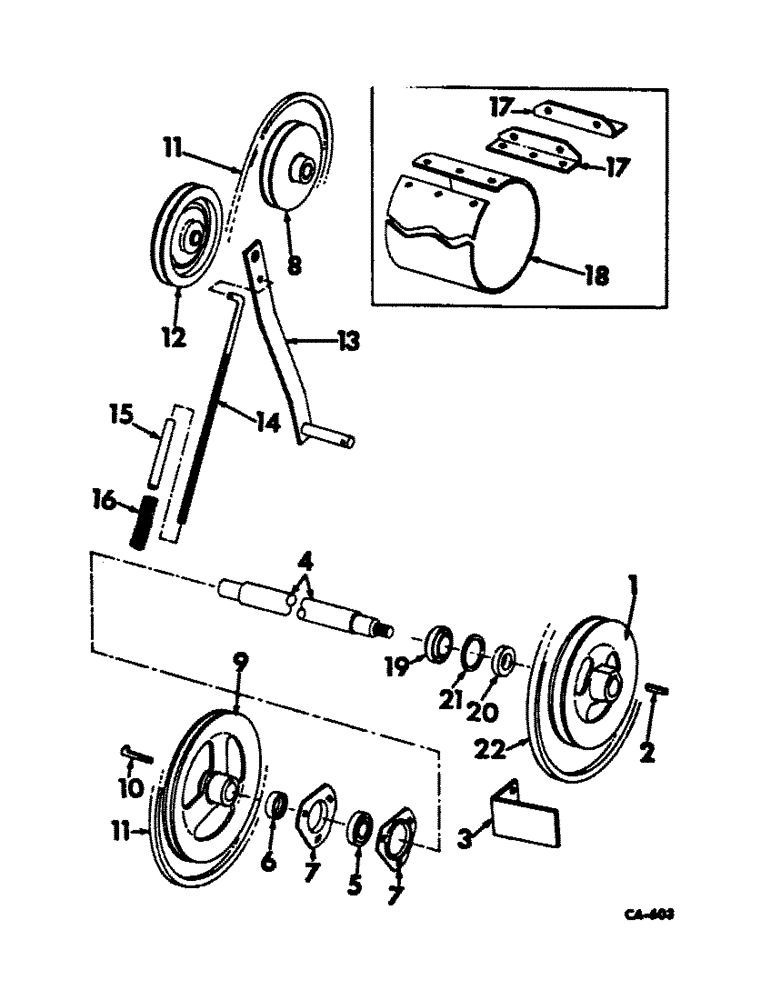

Запчасти Case IH 403 (128) - GRAIN TANK UNLOADER DRIVE, FOR HYDROSTATIC GROUND DRIVE (80) - CROP STORAGE/UNLOADING

1

150669C1

PULLEY, grain tank unloader drive

1шт.

2

Q1443

KEY,5/16" Sq x 1 1/2", Par

5/16 x 1-1/2 sq

1шт.

3

150685C1

ANGLE, grain tank unloader drive belt lower guide

2шт.

17411R1

BOLT,Hex, 5/16"-18 X 3/4", G2

5/16 x 3/4 hex-hd mach

4шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 hex.

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

4

167743C1

SHAFT, grain tank unloader jack

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

Q162

WASHER

1-5/32 x 1-3/4 x 16 ga

2шт.

5

455960R91

BALL BEARING

BEARING, ball

2шт.

6

557115R11

COLLAR

COLLAR ASSY, locking w/set screw

2шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16 cup-pt set

1шт.

7

571425R1

FLANGED BEARING

grain tank unloader jackshaft bearing

4шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, 3/8 x 1 sq-nk crg

6шт.

102635

NUT,3/8"-16, G5

6шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

8

150624C1

PULLEY

ASSY, grain tank unloader jackshaft drive

1шт.

179867

BOLT,Hex, 7/16" - 14 x 2 1/4", Gr 5

SCREW, 7/16 x 2-1/4 hex-hd cap

3шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

3шт.

9

626770R1

PULLEY, grain tank unloader jackshaft driven

1шт.

10

Q3930

KEY,Gib, 5/16" Sq x 1 3/4"

5/16 x 1-3/4 tapered gib

1шт.

11

150670C1

V-BELT,0.63" W x 157.79" L

Grain Tank Unloader Jackshaft Drive 0.63" W x 157.79" L

1шт.

12

570265R91

PULLEY

ASSY, grain tank unloader jackshaft drive belt tightener

1шт.

17578R1

BOLT (SPREADER),Hex, 5/8"-11 x 2 1/2", G2

BOLT, 5/8 x 2-1/2 hex-hd mach

1шт.

102639

NUT,5/8"-11, G5

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

12258R1

WASHER

21/32 x 1-1/4 x 11 ga

3шт.

13

150677C91

ARM ASSY, grain tank unloader jackshaft drive belt tightener pulley

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

Q3501

WASHER

25/32 x 1-1/4 x 16 ga

2шт.

14

150681C1

ROD, grain tank unloader jackshaft drive belt tightener pulley adjustment

1шт.

102635

NUT,3/8"-16, G5

3шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

PO10532

WASHER

13/32 x 1-1/4 x 11 ga

1шт.

12258R1

WASHER

21/32 x 1-1/4 x 11 ga

1шт.

15

150682C1

SPACER, grain tank unloader jackshaft drive belt tightener pulley adjustment rod

1шт.

16

V679

VALVE SPRING

SPRING, grain tank unloader jackshaft drive belt tightener pulley adjustment rod

1шт.

17

150666C1

ANGLE, grain tank unloader tube clamp

2шт.

18475R1

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 2

5/16 x 1-1/4 C-Z hex-hd mach

4шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 C-Z hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

6шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

18

150667C1

BUMPER, grain hopper unloader tube

1шт.

19

632034R91

BALL BEARING,30 mm ID x 62 mm OD x 24 mm

grain tank unloader jackshaft right

1шт.

20

150684C1

SPACER, grain tank unloader jackshaft

1шт.

21

632033R1

SEAL, grain tank unloader jackshaft right bearing oil

1шт.

22

562655R1

V-BELT,0.88" W

Grain tank unloader drive 0.88" W

1шт.
