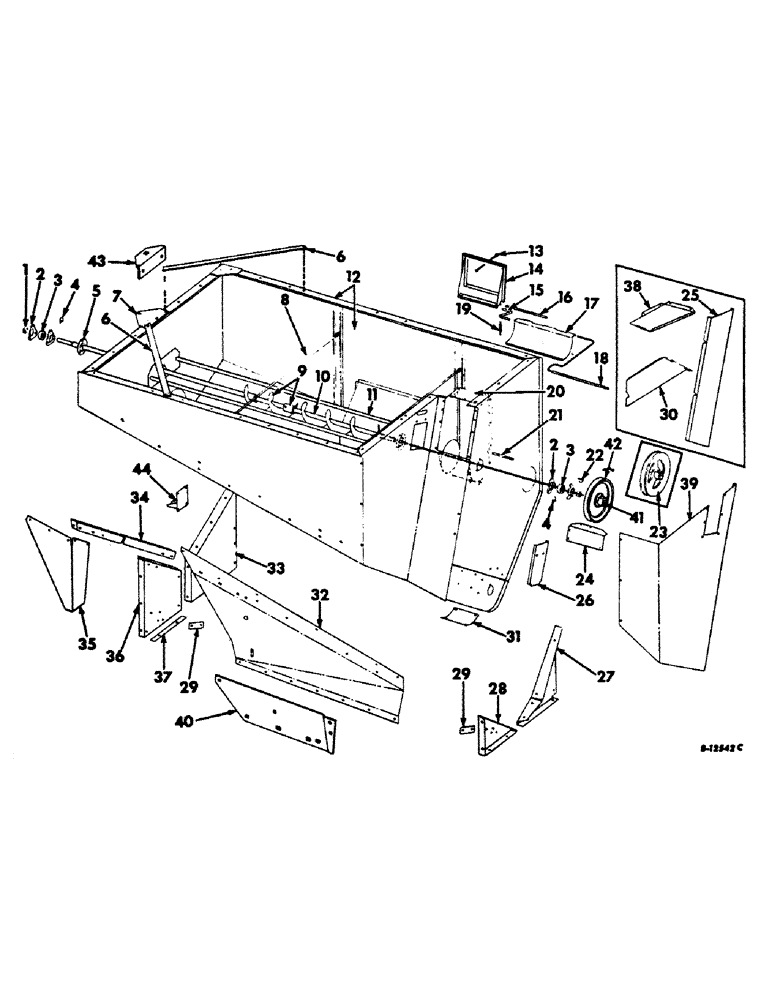

Запчасти Case IH 403 (120) - GRAIN TANK (80) - CROP STORAGE/UNLOADING

1

455102R11

COLLAR

W/SET SCREW ASSY, locking

2шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

1/4 X 1/4 CUP-PT SET SCREW

2шт.

2

571424R1

FLANGE

grain tank leveling auger bearing

4шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

6шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

3

455101R91

BEARING

ball

2шт.

4

628535R1

SHIM

grain tank distributing auger bearing

1шт.

5

589389R1

CYLINDER END CAP

SHIELD, grain tank distributing auger bearing

2шт.

6

627121R1

BRACE, grain tank, Serial no. 805 and below

2шт.

6

939602R1

BRACE, grain hopper, Serial no. 806 and above

1шт.

3/8 X 3/4 C-Z MACH BOLT W/NUT

4шт.

3/8 C-Z LOCK WASHER

4шт.

7

627358R1

ANCHOR, unloader pivot tube rod, Serial no. 805 and below

1шт.

7

939603R1

ANCHOR, unloader pivot tube rod, Serial no. 806 and above

1шт.

3/8 X 3/4 C-Z MACH BOLT W/NUT

1шт.

3/8 X 1 MACH BOLT W/NUT

2шт.

3/8 LOCK WASHER

3шт.

8

631370R1

ROD, grain tank front and rear side support

2шт.

1/2 NUT

4шт.

1/2 LOCK WASHER

4шт.

9

627122R91

AUGER

EXTENSION W/HUB, distributing auger, Not for raised leveling auger

1шт.

272120

CONNECTING LINK

7/16 JAM NUT

2шт.

102905

SET SCREW,Sq Hd, 7/16"-14 x 3/4"

7/16 X 3/4 CUP-PT SET SCREW

2шт.

10

627117R91

AUGER

ASSY, leveling, regular, Not for raised leveling auger

1шт.

10

654882R91

AUGER

ASSY, leveling, For use w/raised leveling auger

1шт.

11

633463R1

PIPE, grain tank side support rod

2шт.

12

632893R91

TANK ASSY, grain, Includes ref nos 13 through 19

1шт.

5/16 X 1/2 CRG BOLT W/NUT

2шт.

5/16 X 3/4 CRG BOLT W/NUT

1шт.

3/8 X 3/4 CRG BOLT W/NUT

1шт.

3/8 X 1 CRG BOLT W/NUT

1шт.

1/2 X 3/4 CRG BOLT W/NUT

1шт.

1/2 X 1-1/2 CRG BOLT W/NUT

1шт.

5/16 X 3/4 MACH BOLT W/NUT

1шт.

1/4 X 1/2 MACH BOLT W/NUT

1шт.

1/4 NUT

1шт.

3/8 NUT

1шт.

113995

BRACKET

1/4 X 1/2 SLT-RD-HD MACH SCREW

1шт.

114697

SCREW,Slotted Rd Hd, 3/8"-16 x 1/2"

3/8 X 1/2 SLT-RD-HD MACH SCREW

1шт.

1/4 LOCK WASHER

1шт.

5/16 LOCK WASHER

1шт.

3/8 LOCK WASHER

1шт.

1/2 LOCK WASHER

1шт.

11/32 X 3/4 X 16 GA WASHER

1шт.

13

587056R1

KNOB, inspection door

1шт.

633712R1

RIVET

1шт.

14

632896R91

DOOR W/SEAL AND HINGE, tailings inspection

1шт.

15

632899R1

ROD, tailings delivery auger valve control, For propulsion drive

1шт.

15

633230R1

ROD, tailings delivery auger valve control, For hydrostatic drive

1шт.

16

634523R1

ROD, tailings inspection door hinge

14шт.

1/8 X 3/4 COT. PIN

1шт.

17

633668R91

VALVE W/HINGE, tailings delivery

1шт.

18

633233R1

ROD, tailings delivery auger valve

1шт.

19

Z1259

SPRING

tailings inspection door return

2шт.

1/4 X 1-1/4 CRG BOLT

1шт.

114501

JAM NUT,Jam, 1/4"-20, G5

1шт.

20

629648R91

TUBE

W/CLIP, leveling auger, regular, Not for raised leveling auger

1шт.

20

654871R91

TUBE

W/CLIP, leveling auger, For use w/raised leveling auger

1шт.

21

627128R1

ROD, grain tank side support

2шт.

22

NLS

NO LONGER SERVICED

no. 15 Woodruff

1шт.

23

633199R1

SHEAVE, grain tank distributing auger driven, Serial no. 805 and below

1шт.

114502

JAM NUT,Jam, 5/16"-18, G5

2шт.

102883

SET SCREW

5/16 X 3/4 CUP-PT SET SCREW

2шт.

24

627125R1

DOOR, elevator tank

1шт.

1/4 X 1/2 CRG BOLT W/NUT

4шт.

1/4 X 1/2 MACH BOLT

3шт.

564791R1

SPRING NUT

1/4 SPEED NUT

3шт.

1/4 LOCK WASHER

7шт.

25

NOT USED

1шт.

26

629662R1

DOOR, grain elevator headshaft

1шт.

5/16 X 1/2 CRG BOLT W/NUT

2шт.

5/16 LOCK WASHER

2шт.

27

170987C11

BRACKET ASSY, grain tank RH, front supt

1шт.

3/8 X 3/4 CRG BOLT W/NUT

9шт.

3/8 LOCK WASHER

9шт.

28

629497R1

BRACKET, grain tank RH, rear support

1шт.

3/8 X 3/4 CRG BOLT W/NUT

6шт.

3/8 LOCK WASHER

6шт.

29

629505R1

PLATE, cylinder beater cover

2шт.

5/16 X 3/4 CRG BOLT W/NUT

4шт.

5/16 LOCK WASHER

4шт.

30

NOT USED

1шт.

31

627116R1

COVER

DOOR, grain tank cleanout

1шт.

5/16 X 1/2 CAP SCREW

4шт.

5/16 LOCK WASHER

4шт.

11/32 X 1 X 16 GA WASHER

4шт.

32

627711R1

SUPPORT, grain tank rear, Serial no. 805 and below

1шт.

3/8 X 3/4 CRG BOLT W/NUT

1шт.

3/8 LOCK WASHER

1шт.

142350

GROMMET,7/8" ID x 1 5/8" x .125", Diag Cut

7/8 PLAIN RUBBER GROMMET

1шт.

32

937926R1

SUPPORT, grain tank rear, Serial no. 806 and above

1шт.

3/8 X 3/4 CRG BOLT W/NUT

1шт.

3/8 X 1 CRG BOLT W/NUT

1шт.

5/16 X 3/4 MACH BOLT W/NUT

1шт.

3/8 X 1 MACH BOLT W/NUT

1шт.

5/16 LOCK WASHER

1шт.

3/8 LOCK WASHER

1шт.

Q397

WASHER

11/32 X 3/4 X 16 GA WASHER

1шт.

33

629488R91

BRACKET W/GUSSET, grain tank LH front support, Serial no. 1322 and below

1шт.

33

159281C91

BRACKET ASSY, grain tank LH front support, Serial no. 1323 and above

1шт.

3/8 X 3/4 CRG BOLT W/NUT

6шт.

3/8 X 3/4 CAP SCREW

4шт.

3/8 LOCK WASHER

10шт.

34

173573C1

SUPPORT W/NUT, grain tank bottom

1шт.

5/16 X 3/4 CRG BOLT W/NUT

4шт.

3/8 X 1 CRG BOLT W/NUT

1шт.

3/8 X 1 CRG BOLT W/NUT

1шт.

3/8 X 1 MACH BOLT W/NUT

2шт.

5/16 LOCK WASHER

4шт.

3/8 LOCK WASHSER

4шт.

W6652

WASHER

13/32 X 1 X 16 GA WASHER

2шт.

35

627124R1

BRACE, grain tank LH support

1шт.

3/8 X 3/4 CRTG BOLT W/NUT

7шт.

3/8 LOCK WASHER

7шт.

36

629495R1

BRACKET, grain tank LH rear support

1шт.

3/8 X 3/4 CRG BOLT W/NUT

11шт.

3/8 X 1 CRG BOLT W/NUT

1шт.

3/8 LOCK WASHER

12шт.

37

629506R1

FILLER, grain tank LH rear support bracket

1шт.

38

NOT USED

1шт.

39

NOT USED

1шт.

40

937924R1

SUPPORT, grain tank LH rear, Serial no. 806 and above

1шт.

41

939279R1

HUB

grain hopper level auger driven pulley, Serial no. 806 and above

1шт.

5/16 X 1 C-Z MACH BOLT W/NUT

4шт.

102883

SET SCREW

5/16 X 3/4 CUP-PT SET SCREW

2шт.

5/16 C-Z LOCK WASHER

4шт.

42

939241R1

PULLEY ASSY, grain hopper level auger driven, Serial no. 806 and above

1шт.

43

939601R1

BRACKET, grain hopper unloader tube front rod, Serial no. 801 and above

1шт.

3/8 X 3/4 C-Z MACH BOLT W/NUT

2шт.

3/8 C-Z LOCK WASHER

2шт.

44

172270C1

SUPPORT ASSY, deck brace

1шт.

17351C1

BOLT, 3/8 x 1 znd sq-nk crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.
