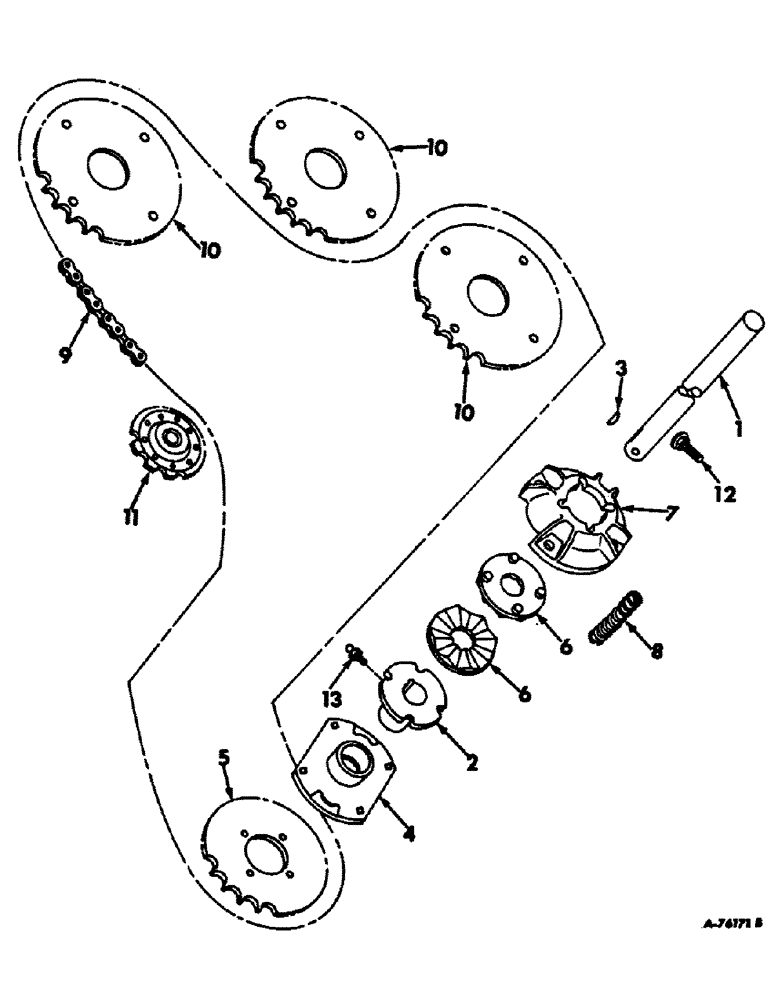

Запчасти Case IH 403 (080) - ELEVATOR CHAIN DRIVE, S/N 1323 AND ABOVE (80) - CROP STORAGE/UNLOADING

1

155812C1

SHAFT

elevator drive

1шт.

2

583785R1

HOLDER

elevator drive slip clutch

1шт.

21825R1

LOCK PIN,5/16" x 1 3/4", Slotted

Pin, 5/16" x 1 3/4", Slotted

1шт.

3

117977

WOODRUFF KEY

KEY, 5/16 x 1 Woodruff

1шт.

4

155813C1

HUB

elevator drive slip clutch

1шт.

5

155814C1

SPROCKET ASSY.

SPROCKET, elevator drive 38-T

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

SCREW, 3/8 x 7/8 C-Z hex-hd cap

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

6

B12170

RATCHET,Clutch Slip, 94.49mm

elevator drive slip clutch

2шт.

7

632152R2

RETAINER

elevator drive slip clutch

1шт.

8

28395H

SPRING

elevator drive slip clutch

4шт.

12685R1

BOLT,Sq Nk, 3/8" x 3 1/4"

3/8 x 3-1/4 sq-nk crg dld

4шт.

9628503

NUT,3/8"-16, G5

4шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

4шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

8шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

4шт.

9

CHAIN ASSY, elevator drive, Order 127 links of 1-1/4 in. extended pitch roller chain from a 10-ft roll marked 569089R1 and one connecting link 587372R91 and one offset link 456929R91, Not for raised leveling auger

1шт.

9

CHAIN ASSY, elevator drive, Order 135 links of 1-1/4 in. extended pitch roller chain from a 10-ft roll marked 569089R1 and one connecting link 587372R91 and one offset link 456929R91, For raised leveling auger

1шт.

10

155811C1

SPROCKET ASSY.

SPROCKET, elevator driven and grain tank leveling auger driven, 50-T

3шт.

180078

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

SCREW, 5/16 x 7/8 C-Z hex-hd cap

12шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

11

582415R91

DRIVE SPROCKET,9T

SPROCKET ASSY, elevator drive chain idler, 9-T

1шт.

12

NOT USED IN THIS APPLICATION

1шт.

13

109461

LUBE NIPPLE,1/8"-27 x .66 lg

FITTING, 1/2 npt str lub

1шт.
