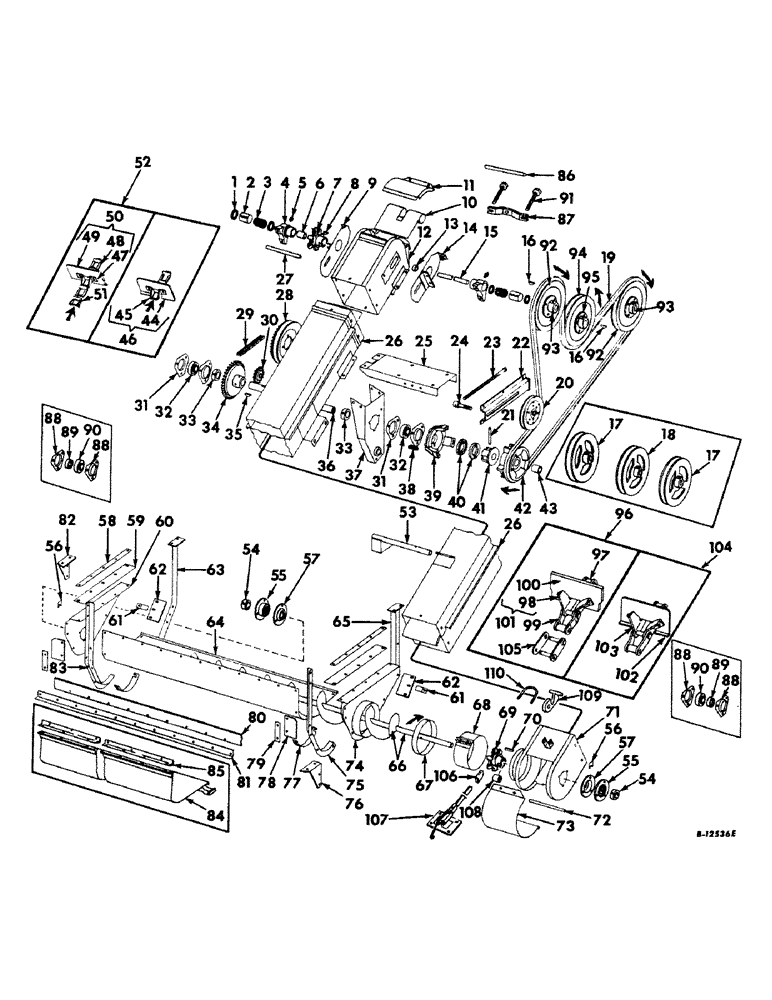

Запчасти Case IH 403 (076) - GRAIN ELEVATOR AND DRIVE CHAIN FLIGHT, STEEL, SPECIAL (80) - CROP STORAGE/UNLOADING

1

631734R91

OIL SEAL

OIL SEAL, bearing box

4шт.

2

631735R1

SLEEVE CYLINDER

RACE, outer

2шт.

3

562708R91

BEARING ASSY,0.875" ID x 1.378" OD x 1.75"

ASSY, roller

2шт.

4

631704R1

HOUSING

BOX, bearing

2шт.

5/16 X 1/2 CAP SCREW

4шт.

5/16 LOCK WASHER

4шт.

5

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

6

584963R1

SPACER, elevator headshaft, inner, Serial no. 1672 and below

1шт.

6

583590R1

SPACER

elevator headshaft, inner, Serial no. 1673 and above

1шт.

7

629193R1

SPROCKET ASSY.

SPROCKET, elevator conveyor chain, 6-T, Serial no. 805 and below

1шт.

7

150719C91

SPROCKET ASSY.

SPROCKET ASSY, grain elevator conveyor chain, 6-T, Serial no. 806 and above

1шт.

1/8 X 3/4 COTTER PIN

1шт.

Q1329

HEADED PIN,1/4" x 1 3/4"

1/4 X 1-3/4 DLD PIN

1шт.

8

NLS

NO LONGER SERVICED

1/4 x 1 Woodruff

1шт.

9

631699R91

SUPPORT

BRACKET W/NUT, elevator chain tightener, LH

1шт.

5/16 X 6 CRG BOLT W/NUT

1шт.

7/16 NUT

2шт.

5/16 LOCK WASHER

2шт.

11/32 X 1 X 16 GA WASHER

2шт.

10

627981R2

SHIELD

elevator headshaft

1шт.

11

627995R1

DOOR, grain elevator head, Serial no., Serial Range: 501-640

1шт.

11

165490C1

DOOR

grain elevator head, Serial no. 641 and above

1шт.

1/4 X 1-1/4 CRG BOLT

1шт.

935735R1

WING NUT

1/4 WING NUT

1шт.

1/4 LOCK WASHER

1шт.

615009R1

WASHER

17/64 X 3/4 X 16 GA WASHER

1шт.

12

627954R91

HEAD ASSY, grain elevator, Serial no., Serial Range: 501-640

1шт.

12

936547R92

HEAD

ASSY, grain elevator, Serial no., Serial Range: 641-940

1шт.

12

153168C91

HEAD

ASSY, grain elevator, Serial no. 941 and above

1шт.

1/4 X 1/2 CRG BOLT W/NUT

4шт.

1/4 LOCK WASHER

4шт.

3/8 NUT

1шт.

3/8 LOCK WASHER

1шт.

PO10532

WASHER

13/32 X 1-1/4 X 11 GA WASHER

1шт.

13

553855R1

SPACER

grain elevator headshaft outer, Serial no. 1672 and below

1шт.

13

631385R1

SPACER

grain elevator headshaft outer, Serial no. 1673 and above

1шт.

14

631700R91

SUPPORT

BRACKET W/NUT, elevator chain tightener, RH

1шт.

15

627965R1

SHAFT

HEADSHAFT, grain elevator

1шт.

1/8 X 1-3/4 COTTER PIN

1шт.

576402R1

29/32 X 1-3/4 X 22 GA WASHER

2шт.

VC649

WASHER

29/32 X 1-3/4 X 16 GA WASHER

12шт.

16

NLS

NO LONGER SERVICED

1/4 x 1 Woodruff

2шт.

17

633198R1

SHEAVE, elevator driven, Serial no. 806 and below

2шт.

5/16 JAM NUT

2шт.

102883

SET SCREW

5/16 X 3/4 CUP-PT SET SCREW

2шт.

18

633199R1

SHEAVE, grain tank distributor auger driven, Serial no. 805 and below

1шт.

5/16 JAM NUT

2шт.

102883

SET SCREW

5/16 X 3/4 CUP-PT, set screw

1шт.

19

937928R1

V-BELT

Elevator drive, Grain machines equipped with grain tank, Not for raised level auger, Serial no. 1322 and below, Special for belt elevator drive

1шт.

19

937929R1

V-BELT

Elevator drive, For raised leve auger, Serial no. 1322 and below, Special for belt elevator drive

1шт.

20

154742C91

PULLEY

SHEAVE ASSY, elevator drive tightener, Serial no. 1322 and below, special for belt elvator drive

1шт.

21

569386R2

DOWEL

PIN, elevator drive slip clutch hub, Serial no. 1322 and below, special for belt elevator drive

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

22

629172R91

BRACKET W/ANCHOR, elevator drive belt tightener sheave

1шт.

3/8 X 3/4 MACH BOLT W/NUT

6шт.

3/8 LOCK WASHER

6шт.

23

629176R1

BOLT, elevator drive belt tightener sheave adjusting

1шт.

24

629178R1

BOLT, elevator drive belt tightener sheave

1шт.

5/8 NUT

1шт.

5/8 LOCK WASHER

1шт.

12258R1

WASHER

21/32 X 1-1/4 X 11 GA WASHER

4шт.

25

629168R1

STIFFENER, elevator drive jackshaft outer bearing support

1шт.

3/8 X 3/4 CRG BOLT W/NUT

6шт.

3/8 X 3/4 MACH BOLT W/NUT

4шт.

3/8 LOCK WASHER

10шт.

26

654335R91

HOUSING ASSY, grain elevator

1шт.

5/16 X 1/2 CRG BOLT W/NUT

10шт.

3/8 X 1 CRG BOLT W/NUT

2шт.

5/16 LOCK WASHER

10шт.

Q397

WASHER

11/32 X 1 X 16 GA WASHER

10шт.

27

629192R1

PIPE

SPACER, elevator head

1шт.

28

629164R2

SPROCKET ASSY.

SPROCKET AND PULLEY, elevator jackshaft drive, 38-T

1шт.

60365H

BOLT,Hex, 3/8" - 16 x 1", Gr 8

SCREW, 3/8 x 1 C-Z cap

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

29

CHAIN, elevator jackshaft drive roller, Order 71 links of 5/8 pitch roller chain from a 10-ft roll marked 1791D and one connecting link 1310D

1шт.

30

565442R91

SPROCKET

ASSY, elevator drive chain tightener

1шт.

1/2 X 2-1/2 CRG BOLT W/NUT

1шт.

1/2 LOCK WASHER

1шт.

12026R1

WASHER

17/32 X 1-1/4 X 16 GA WASHER

6шт.

M83536

WASHER

17/32 X 1-1/4 X 11 GA SQ-HOLE WASHER

1шт.

31

571425R1

FLANGED BEARING

bearing

4шт.

3/8 X 3/4 CRG BOLT W/NUT

6шт.

3/8 LOCK WASHER

6шт.

32

617668R91

BALL BEARING

ball

2шт.

33

557995R11

COLLAR

W/SET SCREW ASSY, locking

2шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

5/16 X 5/16 CUP-PT SET SCREW

2шт.

34

629166R1

SPROCKET ASSY.

SPROCKET, elevator jackshaft driven, 38-T

1шт.

5/16 JAM NUT

2шт.

102883

SET SCREW

5/16 X 3/4 SQ-HD CUP-PT SET SCREW

1шт.

35

117977

WOODRUFF KEY

KEY, 5/16 x 1 Woodruff

1шт.

36

629167R1

SHAFT

JACKSHAFT, elevator drive, Serial no. 1322 and below, special for belt elevator drive

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 C-Z cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

477589R1

WASHER

13/32 x 1-1/2 x 11 ga C-Z

1шт.

37

654357R1

SUPPORT, elevator drive jackshaft outer bearing

1шт.

38

28395H

SPRING

elevator drive slip clutch

3шт.

39

569880R1

HOLDER, elevator drive slip clutch spring, Serial no. 1322 and below, special for belt elevator drive

1шт.

40

U1288

RATCHET

elevator drive slip clutch, Serial no. 1322 and below, special for belt elevator drive

2шт.

41

629170R1

HUB

elevator drive slip clutch, Serial no. 1322 and below, special for belt elevator drive

1шт.

42

627988R1

SHEAVE, elevator drive, regular, Serial no. 1322 and below

1шт.

42

936394R1

PULLEY, elevator drive, special for belt elevator drive

1шт.

3/8 X 3-1/4 DLD CRG BOLT

3шт.

109886

NUT

3/8 SLT-NUT

3шт.

3/32 X 3/4 COTTER PIN

3шт.

Q1597

WASHER

13/32 X 3/4 X 16 GA WASHER

6шт.

Q1505

WASHER

13/32 X 1 X 16 GA WASHER

3шт.

43

627736R1

BUSHING

elevator drive slip clutch, Serial no. 1322 and below, special for belt elevator drive

1шт.

44

FLIGHT, elevator chain, steel, Order flight assy, 936289R91, ref no. 46, elevator chain flight special, Serial no. 805 and below

1шт.

45

62SH-1

LINK, attaching, steel, For use with no. 62 steel chain, elevator chain flight special, Serial no. 805 and below

1шт.

46

936289R91

RUBBER FLIGHT

FLIGHT W/ATTACHING LINK, elevator chain, steel, elevator chain flight special

1шт.

47

62SH-1

LINK, attaching, steel, For use with no. 62 steel chain, Serial no. 805 and below

1шт.

48

62

LINK ASSY.

LINK, plain, steel, For use with no. 62 steel chain, Serial no. 805 and below

1шт.

49

627987R1

RUBBER FLIGHT

FLIGHT, grain elevator conveyor chain, Serial no. 805 and below

1шт.

558430R1

RIVET

5/16 X 19/32 OVAL-HD TUBULAR RIVET

1шт.

50

936288R91

RUBBER FLIGHT

FLIGHT W/ATTACHING AND PLAIN LINK, grain elevator chain, Serial no., Serial Range: 501-805

1шт.

581290R1

RIVET

5/16 X 11/16 OVAL-HD TUBULAR RIVET

1шт.

51

62COL

LINK, plain, steel, For use with no. 62 steel chain, Serial no. 805 and below

1шт.

52

935919R91

CHAIN (AG)

CHAIN W/FLIGHT, grain elevator conveyor, Serial no., Serial Range: 501-805

1шт.

53

627989R91

BRACE W/PIPE, elevator lower

1шт.

5/16 X 3/4 CRG BOLT W/NUT

4шт.

5/16 X 1-1/2 MACH BOLT W/NUT

4шт.

5/16 LOCK WASHER

8шт.

54

NOT USED

1шт.

55

NOT USED

1шт.

56

628535R1

SHIM

auger bearing shield

12шт.

57

589389R1

CYLINDER END CAP

SHIELD, auger bearing

2шт.

5/16 X 3/4 MACH BOLT W/NUT

12шт.

5/16 LOCK WASHER

12шт.

58

564172R1

STRAP, grain auger trough side seal

2шт.

552897R1

SELF-TAP SCREW,1/4" - 20 x 1/2"

1/4 X 1/2 WASHER-FACED CUTTING SCREW

10шт.

59

564174R1

SEAL

grain auger trough side

2шт.

60

627186R1

END

PLATE, grain auger trough, LH

1шт.

1/4 NUT

7шт.

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

1/4 X 1/2 SLT-RD-HD MACH SCREW

6шт.

113957

SCREW,Sl Rnd Hd, 1/4" - 20 x 3/4"

1/4 X 3/4 SLT-RD-HD MACH SCREW

1шт.

1/4 LOCK WASHER

7шт.

61

570989R1

STIFFENER, trough outer frt seal

2шт.

62

936569R1

SEAL

trough outer front

2шт.

63

628603R1

SUPPORT, grain auger trough LH, front

1шт.

5/16 X 1 CRG BOLT

2шт.

5/16 LOCK WASHER

2шт.

64

627188R1

TROUGH, grain auger

1шт.

5/16 X 3/4 CRG BOLT W/NUT

2шт.

1/4 NUT

17шт.

113957

SCREW,Sl Rnd Hd, 1/4" - 20 x 3/4"

1/4 X 3/4 SLT-RD-HD MACH SCREW

17шт.

1/4 LOCK WASHER

17шт.

5/16 LOCK WASHER

2шт.

65

628604R1

SUPPORT, grain auger trough RH, front

1шт.

5/16 X 1 CRG BOLT W/NUT

2шт.

5/16 LOCK WASHER

2шт.

66

936205R91

AUGER W/SHAFT, grain, Serial no. 940 and below

1шт.

66

153031C91

AUGER

ASSY, grain, Serial no. 941 and above

1шт.

615191R1

WASHER

29/32 X 1-1/4 X 16 GA WASHER

1шт.

67

935948R1

SEAL, grain auger trough extension, Serial no. 1672 and below

1шт.

68

627182R91

CLAMP

EXTENSION W/TIE, grain auger trough

1шт.

1/4 X 1-1/4 MACH BOLT W/NUT

2шт.

1/4 LOCK WASHER

2шт.

69

629193R1

SPROCKET ASSY.

SPROCKET, elevator conveyor chain, 6-T, Serial no. 805 and below

1шт.

69

150719C91

SPROCKET ASSY.

SPRCKET ASSY, conveyork chain, 6-T, Serial no. 806 and above

1шт.

1/8 X 3/4 COTTER PIN

1шт.

Q3515

HEADED PIN,1/4" x 1 5/8"

1/4 X 1-5/8 DLD PIN

1шт.

70

Q10

KEY,1/4" Sq x 1 3/8"

1/4 x 1/4 x 1-3/8 straight

1шт.

71

627974R91

BOOT

W/HING, grain elevator, grain, Serial no. 940 and below

1шт.

71

153021C91

BOOT

ASSY, grain elevator, Serial no., Serial Range: 941-1090

1шт.

71

157080C91

BOOT

ASSY, grain elevator, Serial no. 1090 and above

1шт.

1/4 X 1-1/4 CRG BOLT W/NUT

1шт.

935735R1

WING NUT

1/4 WING NUT

1шт.

1/4 LOCK WASHER

1шт.

615009R1

WASHER

17/64 X 3/4 X 16 GA WASHER

1шт.

72

628485R1

PIN, elevator boot door hinge, grain

1шт.

73

627996R91

DOOR

W/CLIP, elevator boot, Serial no. 940 and below

1шт.

73

153009C91

DOOR ASSY, grain elevator boot, Serial no., Serial Range: 941-1090

1шт.

73

157083C1

DOOR

grain elevator boot, Serial no. 1090 and above

1шт.

1/4 X 1-1/4 CRG BOLT

1шт.

935735R1

WING NUT

1/4 WING NUT

1шт.

1/4 LOCK WASHER

1шт.

615009R1

WASHER

17/64 X 3/4 X 16 GA WASHER

2шт.

74

627175R91

PLATE W/FLANGE, grain auger trough, RH

1шт.

1/4 NUT

7шт.

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

1/4 X 1/2 SLT-RD-MACH SCREW

6шт.

113957

SCREW,Sl Rnd Hd, 1/4" - 20 x 3/4"

1/4 X 3/4 SLT-RD-HD MACH SCREW

1шт.

1/4 LOCK WASHER

7шт.

1/4 LOCK WASHER

7шт.

75

627188R1

SUPPORT, grain auger trough rear, RH

1шт.

5/16 X 1 MACH BOLT W/NUT

2шт.

5/16 LOCK WASHER

3шт.

76

628639R1

BRACKET, grain auger trough RH, rear, full leveling

1шт.

3/8 X 1 CRG BOLT W/NUT

2шт.

3/8 LOCK WASHER

2шт.

77

568328R1

BAR

SEAL, auger trough bottom

2шт.

78

564176R1

SEAL

grain auger trough side rear

2шт.

79

564177R1

STRAP, grain auger trough side rear seal

2шт.

1/4 NUT

4шт.

113957

SCREW,Sl Rnd Hd, 1/4" - 20 x 3/4"

1/4 X 3/4 SLT-RD-HD MACH SCREW

4шт.

1/4 LOCK WASHER

4шт.

615009R1

WASHER

17/64 X 3/4 X 16 GA WASHER

4шт.

80

568643R1

SEAL

grain auger trought rear

1шт.

81

568644R1

ANGLE, grain auger trough rear seal

1шт.

82

628638R1

BRACKET, grain auger trough LH, rear, full leveling

1шт.

3/8 X 1 CRG BOLT W/NUT

2шт.

3/8 LOCK WASHER

2шт.

83

627187R1

SUPPORT, grain auger trough rear, LH

1шт.

5/16 X 1 MACH BOLT W/NUT

2шт.

5/16 LOCK WASHER

2шт.

84

NOT USED

1шт.

85

NOT USED

1шт.

86

U16249

PIN, grain elevator head door hinge, Serial no. 641 and above

1шт.

87

936553R1

STRAP, grain elevator conveyor chain tightener bolt, Serial no. 641 and above

1шт.

88

571424R1

FLANGE

grain auger bearing

4шт.

5/16 X 3/4 CRG BOLT W/NUT

6шт.

5/16 LOCK WASHER

6шт.

89

658006R11

COLLAR

W/SET SCREW ASSY, locking

2шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

1/4 X 1/4 CUP-PT SET SCREW

2шт.

90

657383R92

BEARING

ball

2шт.

91

611421R1

BOLT,Hex, 7/16" - 14 x 3 1/2", Full Thd

elevator conveyor chain tightener

2шт.

7/16 C-Z NUT

2шт.

92

939241R11

PULLEY ASSY.

PULLEY ASSY, elevator driven, Serial no. 806 to 1322, special for belt elevator drive

2шт.

93

939278R1

HUB

elevator driven pulley, Serial no. 806 and above

2шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 X 1 C-Z MACH BOLT W/NUT

4шт.

114502

JAM NUT,Jam, 5/16"-18, G5

4шт.

102883

SET SCREW

5/16 X 3/4 CUP-PT SET SCREW

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

94

939241R11

PULLEY ASSY.

PULLEY ASSY, grain hopper leveling auger driven, Serial no. 806 to 1322, special for belt elevator drive

1шт.

95

939279R1

HUB

grain hopper leveling auger driven pulley, Serial no. 806 and above

1шт.

96

150705C91

CONVEYOR

CHAIN W/FLIGHT GRAIN ELEVATOR CONVEYOR, roller chain, Serial no. 806 and above

1шт.

97

631253R91

LINK

plain, roller chain, Serial no. 806 and above

1шт.

98

150722C91

LINK

attachment, roller chain, Serial no. 806 and above

1шт.

99

588562R91

CHAIN LINK

LINK, offset roller, roller chain, Serial no. 806 and above

1шт.

100

150713C1

STEEL FLIGHT

FLIGHT, elevator chain, roller chain, Serial no. 806 and above

1шт.

581290R1

RIVET

5/16 X 11/16 TUBULAR RIVET

1шт.

101

150717C91

RUBBER FLIGHT

FLIGHT W/ATTACHING AND PLAIN LINK, grain elevator chain, roller chain, Serial no. 806 and above

1шт.

102

150713C1

STEEL FLIGHT

FLIGHT, elevator chain, steel, For use w/roller chain, elevator chain flight special, Serial no. 806 and above

1шт.

581290R1

RIVET

5/16 X 11/16 OVAL HD TUBULAR RIVET

1шт.

103

150722C91

LINK

ATTACHMENT, For use w/roller chain, elevator chain flight special, Serial no. 806 and above

1шт.

104

150740C91

STEEL FLIGHT

FLIGHT ASSY, grain elevator, steel, For use w/roller chain, elevator chain flight special, Serial no. 806 and above

1шт.

105

937913R91

DRAG LINK

LINK, connecting, For use w/roller chain, Serial no. 806 and above

1шт.

106

152792C1

GRIP, elevator boot door clamp, Serial no., Serial Range: 941-1089

1шт.

107

152789C91

CLAMP ASSY, elevator boot door, Serial no., Serial Range: 941-1089

1шт.

1/4 X 1/2 C-Z CRG BOLT W/NUT

4шт.

1/4 C-Z LOCKWASHER

4шт.

108

153049C1

SPACER

grain auger shaft, Serial no., Serial Range: 941-1672

1шт.

108

38223K

SPACER, grain auger shaft, Serial no. 1673 and above

1шт.

109

155909C1

LATCH

elevator boot door, Serial no. 1090 and above

1шт.

Q711

HEADED PIN,1/4" x 1 1/4"

PIN, 1/4 x 1-1/4 std hd dld

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

110

664360R1

BOLT,U, 1/4" - 20 x 69.65"

elevator boot door U, Serial no. 1090 and above

1шт.

20244R1

LOCK NUT,1/4"-20

NUT, 1/4 hex. w/nylon insert

2шт.
