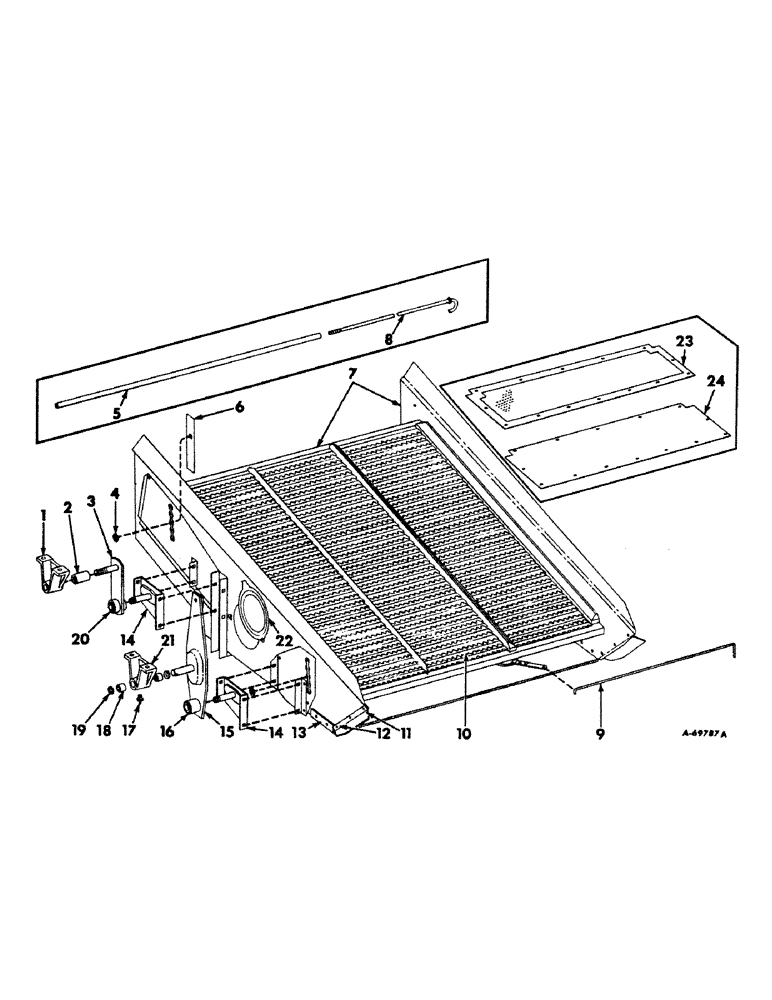

Запчасти Case IH 403 (074) - SHOE, SHOE SIEVE (74) - CLEANING
№
Артикул
Название
Примечание
Количество
1
627717R11
BRACKET W/BUSHING ASSY, shoe hanger front, Includes ref no. 2
2шт.
3/8 X 1-1/4 CRG BOLT W/NUT
4шт.
3/8 LOCK WASHER
4шт.
2
627719R91
COMPOSITE RING
BUSHING ASSY, hanger bracket
2шт.
3
627720R91
CLAMP
ARM W/BUSHING ASSY, shoe front hanger, Includes ref no. 20
2шт.
5/8 NUT
2шт.
5/8 LOCK WASHER
2шт.
578274R1
WASHER
21/32 X 1 X 11 GA WASHER
2шт.
4
569946R1
WASHER
shoe sieve adjusting
4шт.
5
634350R1
PIPE
shoe sieve adjusting bolt spacer
2шт.
6
564207R1
BAR
SEAL, shoe sieve
4шт.
7
568616R91
SHOE
W/DOOR, seal and strip assy, Includes ref nos. 11, 12, 13 and 22
1шт.
557109R1
WASHER
17/64 X 1/2 X 16 GA WASHER
2шт.
8
634349R1
BOLT,5/16" - 18 x 36.20"
shoe sieve adjusting
2шт.
5/16 NUT
2шт.
5/16 LOCK WASHER
2шт.
11/32 X 3/4 X 16 GA WASHER
4шт.
9
654222R1
ROD
shoe sieve adjusting
1шт.
1/8 X 1 COTTER PIN
1шт.
10
568632R93
SIEVE
ASSY, shoe, Serial no. 1089 and below
1шт.
10
159318C91
SIEVE
ASSY, shoe, Serial no. 1090 and above
1шт.
11
564205R1
SEAL
side rear
2шт.
12
564206R1
STRIP, rear seal
2шт.
13
564196R1
SEAL, lower rear
2шт.
14
631478R91
HANGER
W/STUD, shoe lower, LH
2шт.
14
631479R91
SUSPENSION BLOCK
HANGER W/STUD, shoe lower, RH
2шт.
5/16 X 3/4 CRG BOLT W/NUT
16шт.
5/8 NUT
4шт.
5/16 LOCK WASHER
16шт.
21/32 X 1-1/4 X 11 GA WASHER
4шт.
15
627565R91
ARM
W/BUSHING ASSY, grain pan and shoe rear hanger, Includes ref no. 16
2шт.
3/16 X 1-1/4 COTTER PIN
1шт.
23/32 X 1 X 16 GA WASHER
4шт.
16
627555R91
BUSHING,16mm ID x 28.96mm OD x 44.45mm L
ASSY, hanger arm hub
2шт.
17
219-8
LUBE NIPPLE,1/4" - 28 NPTF
FITTING, 1/4 straight lubrication
2шт.
18
629631R91
NEEDLE BEARING
BEARING, needle
4шт.
19
629623R91
OIL SEAL, shoe rear hanger
4шт.
20
627555R91
BUSHING,16mm ID x 28.96mm OD x 44.45mm L
ASSY, arm hub
2шт.
21
629644R1
BRACKET
shoe hanger rear
2шт.
3/8 X 1-1/4 CRG BOLT W/NUT
4шт.
3/8 LOCK WASHER
4шт.
22
551104R1
FLAP
DOOR, shoe inspection
2шт.
23
NOT USED
1шт.
24
NOT USED
1шт.
Выбрано товаров: 44
