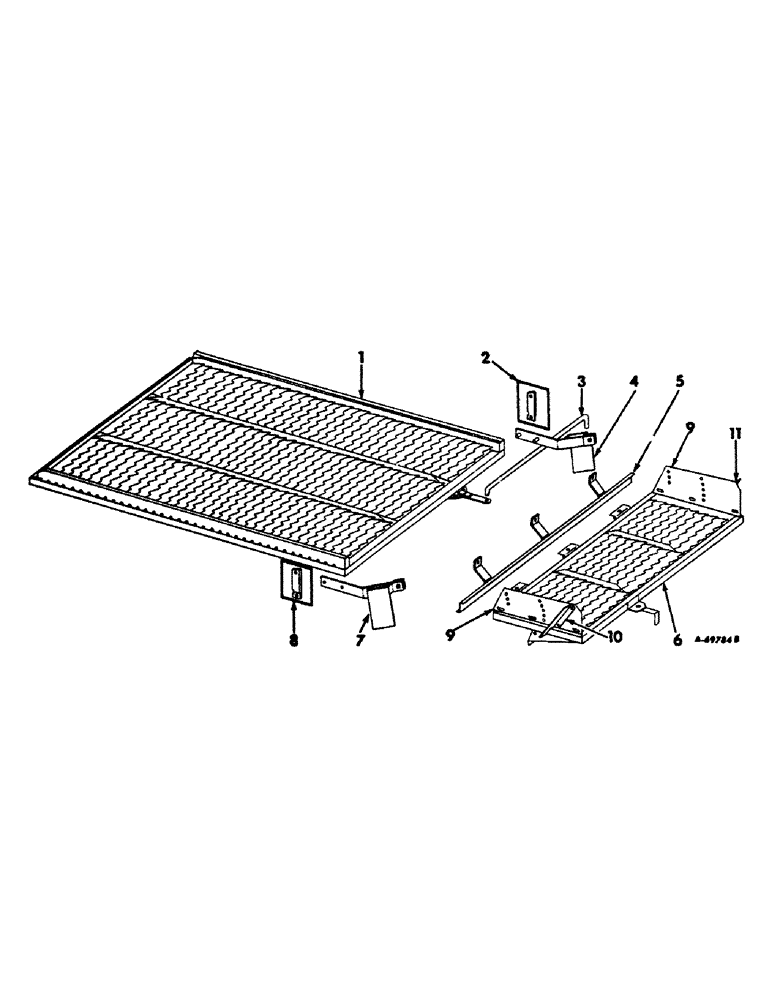

Запчасти Case IH 403 (070) - CHAFFER SIEVE AND EXTENSION (74) - CLEANING

1

568631R93

SIEVE

ASSY, chaffer, regular

1шт.

1

574823R92

GRAIN SIEVE

SIEVE ASSY, chaffer, Peterson type

1шт.

2

632729R1

BOARD

BLOCK, chaffer sieve seal, RH

1шт.

5/16 X 3/4 CRG BOLT W/NUT

1шт.

3/8 X 1-1/4 CRG BOLT W/NUT

1шт.

5/16 LOCK WASHER

1шт.

3/8 LOCK WASHER

1шт.

3

570642R1

ROD

chaffer sieve adjusting

1шт.

586591R1

COTTER PIN

PIN, quick attachable

1шт.

4

627835R93

BRACKET W/PAD, chaffer sieve adjusting, RH

1шт.

5/16 X 1 CRG BOLT W/NUT

2шт.

3/8 X 3/4 MACH BOLT W/NUT

1шт.

5/16 LOCK WASHER

2шт.

115549

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

13/32 X 1 X 16 GA WASHER

1шт.

5

569626R91

DEFLECTOR W/BRACKET CHAFFER SIEVE BLAST, serial no. 1322 and below

1шт.

5

159320C91

DEFLECTOR

W/BRACKET CHAFFER SIEVE BLAST, serial no. 1323 and above

1шт.

6

172221C1

DRIVE ASSY.

SIEVE ASSY, chaffer extension, See note, Serial no. 1673 and above

1шт.

1/4 NUT

6шт.

442806

BRACKET

1/4 HUG LOCK NUT

2шт.

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

1/4 X 1/2 SLT-RD-HD SCREW

6шт.

113959

SCREW,Sl Rnd Hd, 1/4" - 20 x 1"

1/4 X 1 SLT-RD-HD SCREW

2шт.

1/4 LOCK WASHER

6шт.

615009R1

WASHER

17/64 X 3/4 X 16 GA WASHER

6шт.

7

627834R93

SUPPORT

BRACKET W/PAD, chaffer sieve adjusting, LH

1шт.

5/16 X 1 CRG BOLT W/NUT

2шт.

3/8 X 3/4 MACH BOLT W/NUT

1шт.

5/16 LOCK WASHER

2шт.

115549

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

13/32 X 1 X 16 GA WASHER

1шт.

8

632728R1

BLOCK

chaffer sieve seal, LH

1шт.

5/16 X 3/4 CRG BOLT W/NUT

1шт.

3/8 X 1-1/4 CRG BOLT W/NUT

1шт.

5/16 LOCK WASHER

1шт.

3/8 LOCK WASHER

1шт.

9

172636C1

SIDE ASSY.

SIDE, chaffer extension, See note, Serial no. 1673 and above

2шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z whiz lock

6шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z whiz lock

6шт.

10

172637C1

SEAL, chaffer extension, LH, See note, Serial no. 1673 and above

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z whiz lock

2шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z whiz lock

2шт.

11

172638C1

SEAL, chaffer extension, RH, See note, Serial no. 1673 and above

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z whiz lock

2шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z whiz lock

2шт.
