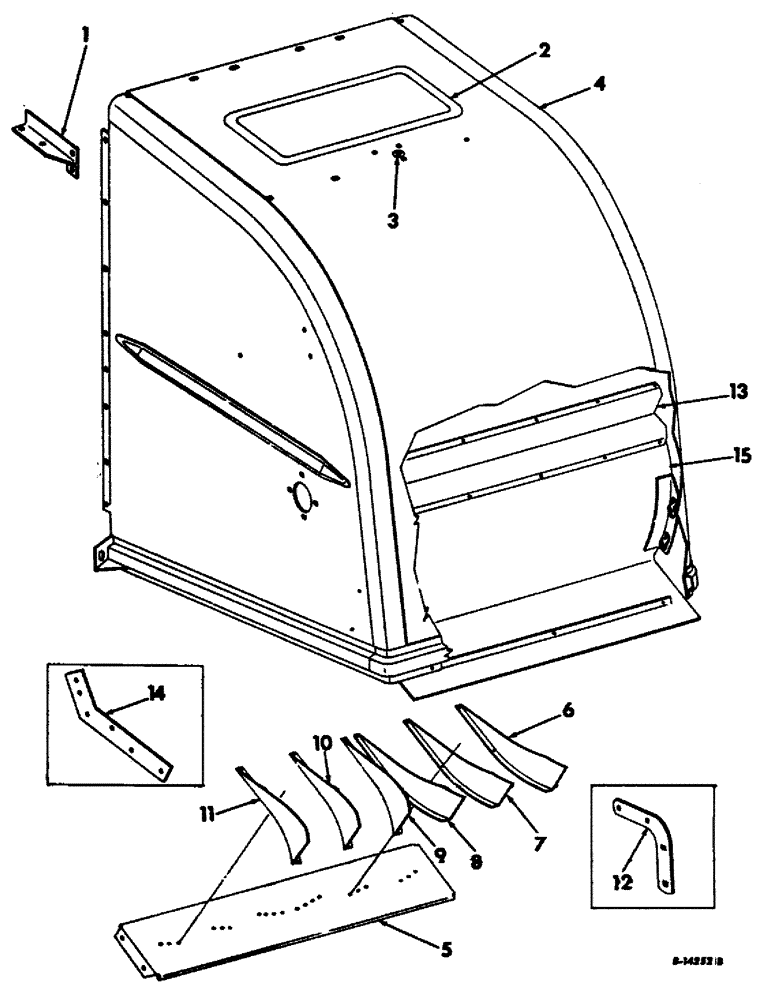

Запчасти Case IH 403 (202) - STRAW CHOPPER, HOOD AND DEFLECTORS (73) - RESIDUE HANDLING

1

936272R91

BRACE ASSY, hood upper, LH

1шт.

1

936273R91

BRACE ASSY, hood upper, RH

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

3/8 X 3/4 C-Z MACH BOLT W/NUT

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

2

936069R91

COVER ASSY, hood top

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

Q397

WASHER

11/32 X 3/4 X 16 GA WASHER

2шт.

3

144226

GROMMET,1/4" ID x 5/8" x .062", Diag. Cut

rubber

1шт.

4

936053R91

HOOD ASSY, separator, Serial no. 805 and below

1шт.

4

150018C91

HOOD ASSY, separator, Serial no. 806 and above

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 X 1/2 C-Z MACH BOLT

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

5

936109R1

SHIELD, deflector

1шт.

6

936129R1

DEFLECTOR, outer, RH, Serial no. 805 and below

1шт.

6

936125R1

DEFLECTOR

RH, Serial no. 806 and above

2шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 X 1/2 C-Z MACH BOLT W/NUT

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

7

936125R1

DEFLECTOR

inner, RH, Serial no. 805 and below

1шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/2 X 1/2 C-Z MACH BOLT W/NUT

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

8

936127R1

DELFECTOR, middle, RH, Serial no. 805 and below

1шт.

8

155132C1

DELFECTOR, center, RH, Serial no. 641 and above

1шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 X 1/2 C-Z MACH BOLT W/NUT

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

9

936126R1

DEFLECTOR, middle, LH, Serial no. 805 and below

1шт.

9

155131C1

DEFLECTOR

center, LH, Serial no. 641 and above

1шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 X 1/2 C-Z MACH BOLT W/NUT

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

10

936124R1

DEFLECTOR

inner, LH, Serial no. 805 and below

1шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 X 1/2 C-Z MACH BOLT W/NUT

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

11

936128R1

DEFLECTOR, outer, LH, Serial no. 805 and below

1шт.

11

936124R1

DEFLECTOR

LH, Serial no. 806 and above

2шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 X 1/2 C-Z MACH BOLT W/NUT

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

12

936138R1

STRIP, deflector shield, Serial no.805 and below

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

5/16 X 1/2 C-Z CRG BOLT W/NUT

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

13

151136C1

REINFORCEMENT, rear upper, Serial no. 806 and above

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

5/16 X 1/2 C-Z CRG BOLT W/NUT, 5 used

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

5/16 C-Z LOCK WASHER, 5 used

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

5/16 C-Z LOCK WASHER, 5 used

1шт.

14

151273C1

STRAP, rear, LH

1шт.

14

151274C1

STRAP, rear, RH

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

3/8 X 3/4 C-Z CRG BOLT W/NUT

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 C-Z hex

2шт.

15

151152C91

DEFLECTOR ASSY, rear

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

9 used Hex, 1/4"-20 x 3/4", G5, Full Thd

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 X 3/4 C-Z CAP SCREW

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , 9 used 1/4"

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.
