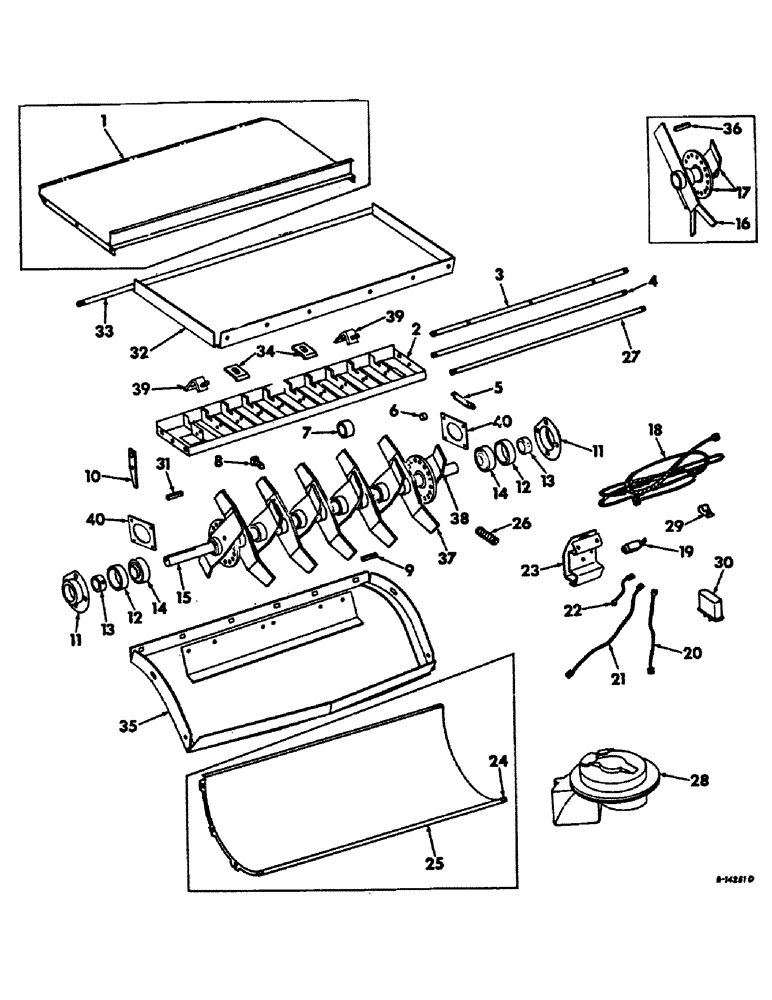

Запчасти Case IH 403 (200) - STRAW CHOPPER, CUTTING PARTS (73) - RESIDUE HANDLING

1

936075R91

SHIELD ASSY, straw deflector upper, Serial no. 805 and below

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

5/16 X 3/4 C-Z CRG BOLT W/NUT, 11 used

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 11 used 5/16"

1шт.

2

936084R91

PANEL ASSY, blade support, Serial no. 805 and below

1шт.

2

151009C91

PANEL ASSY, blade support, Serial no. 806 and above

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

3/8 X 3/4 C-Z CRG BOLT W/NUT

4шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

5/16 X 3/4 C-Z MACH BOLT W/NUT, 10 used

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

3

936137R1

ROD, blade spring, Serial no. 805 and below

1шт.

3

151020C1

ROD, blade spring, Serial no. 806 and above

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

4

936118R1

ROD, knife pivot

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

5

622016R1

SPRING

blade, 3 used

1шт.

6

567532R1

WASHER

RING, locating, 19 used

1шт.

7

936123R1

SPACER, rotor, Serial no. 640 and below

1шт.

8

937499R1

SCREW, rotor hub set, 44 used

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

9

575824R1

KEY,1/4" Sq x 3", Par

1/4 x 3 sq parallel, rotor hub, 9 used, Serial no. 641 and above

1шт.

10

936135R1

BLADE

chopper, 19 used

1шт.

11

936130R1

FLANGE

bearing

2шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

1/2 X 1 C-Z CRG BOLT W/NUT

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

12

936131R1

RUBBER RING,92.46mm ID x 23.01mm OD x 23.01mm L

bearing

2шт.

13

455112R11

COLLAR

W/SET SCREW, locking

2шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

3/8 X 3/8 SOC-HD CUP-PT SET SCREW

2шт.

14

936133R91

BEARING ASSY,38.1mm ID x 80mm OD x 18mm W

BEARING, rotor shaft ball

2шт.

15

936115R1

SHAFT, rotor

1шт.

16

936097R91

ROTOR ASSY, straw chopper, Serial no. 805 and below, Order rotor package 151309C91, Consists of

1шт.

150988C91

BLADE

ROTOR

1шт.

151312C1

SPACERS, 9 used

2шт.

17

936103R91

ROTOR ASSY, outer, Serial no. 805 and below, Order rotor assy outer 150991C91, ref no. 38

2шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

5/16 X 3/4 C-Z MACH BOLT W/NUT

2шт.

120214R1

WASHER

5/16 C-Z LOCK WASHER

2шт.

Q399

WASHER

11/32 X 1 X 16 GA WASHER

4шт.

18

936690R91

CABLE, micro switch

1шт.

19

633643R91

SWITCH

ASSY, micro

1шт.

68107H

LOCK NUT

1шт.

Q1597

WASHER

13/32 X 3/4 X 16 GA WASHER

1шт.

20

NOT USED

1шт.

21

NOT USED

1шт.

22

654351R91

CABLE, ground

1шт.

23

936092R91

BRACKET ASSY, warning switch mounting, Serial no. 805 and below

1шт.

23

151116C91

BRACKET

ASSY, warning switch mounting, Serial no. 806 and above

1шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 X 1/2 C-Z MACH BOLT W/NUT

2шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

189644

NO. 10 X 1/2 SLT-HEX-HD TAP SCREW

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

Q397

WASHER

11/32 X 3/4 X 16 GA WASHER

2шт.

24

936120R1

ROD, deflector hinge, Serial no. 805 and below

1шт.

1/8 X 3/4 COTTER PIN

2шт.

25

936112R1

SHIELD, lower, Serial no. 805 and below

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

5/16 X 3/4 C-Z CRG BOLT W/NUT

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

26

372649R1

SPRING

warning switch

1шт.

27

937582R1

ROD, retaining, Serial no. 805 and below

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

28

NOT USED

1шт.

29

362127R1

CLIP

wire

7шт.

30

NOT USED

1шт.

31

126

KEY,1/4" Sq x 2 1/2", Par

1/4 x 2-1/2 sq parallel outer rotor hub, Serial no. 640 and below

2шт.

32

151098C1

SECTION, front upper

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

5/16 X 3/4 C-Z CRG BOLT W/NUT, 6 used

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 6 used 5/16"

1шт.

33

151189C1

ROD, upper front section, Serial no. 806 and above

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

34

NOT USED

1шт.

35

151142C91

DEFLECTOR ASSY, lower, Serial no. 806 and above

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

5/16 X 3/4 C-Z CRG BOLT W/NUT, 6 used

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

5/16 X 3/4 C-Z MACH BOLT W/NUT

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 8 used 5/16"

1шт.

36

Q98

KEY, 1/4 x 1-7/8 sq parallel, rotor hub, 11 used, Serial no. 805 and below 1/4" Sq x 1 7/8", Par

1шт.

37

150988C92

BLADE

ROTOR ASSY, straw chopper, Serial no. 806 and above

9шт.

38

150991R92

ROTOR ASSY, outer, Serial no. 806 and above

2шт.

18764R11

BOLT

5/16 X 3/4 C-Z MACH BOLT W/NUT

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

39

NOT USED

1шт.

40

NOT USED

1шт.
