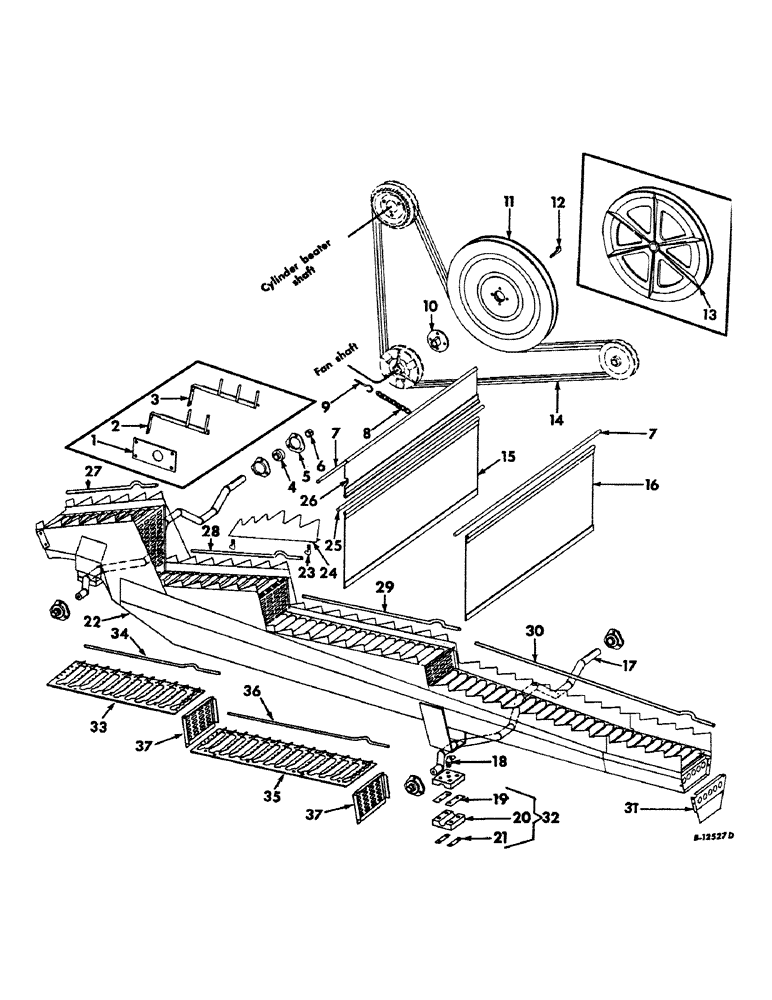

Запчасти Case IH 403 (065) - STRAW RACK AND DRIVE, SLOW SPEED DRIVEN PULLEY AND STRAW RACK RISER ATTACHMENTS (72) - SEPARATION

1

588766R1

PLATE

straw rack riser bolting, straw rack riser attachment

1шт.

2

584100R92

RISER

EXTENSION W/FINGER, straw rack riser, front straw rack riser attachment

1шт.

1/4 X 3/4 MACH BOLT

1шт.

1/4 LOCK WASHER

1шт.

3

584102R91

RISER

EXTENSION W/FINGER, straw rack riser, rear straw rack riser

1шт.

1/4 X 3/4 CAP SCREW

1шт.

1/4 LOCK WASHER

1шт.

4

455960R91

BALL BEARING

BEARING, ball

4шт.

5

571425R1

FLANGED BEARING

crankshaft brg

8шт.

6

557115R11

COLLAR

COLLAR W/SET SCREW ASSY, locking

4шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

5/16 X 5/16 CUP-PT SET SCREW

4шт.

7

569108R1

ROD

separator check flap

2шт.

1/8 X 3/4 COT. PIN

4шт.

8

H59561

CHAIN, separator check flap adj

1шт.

1/4 X 1-1/4 COT. PIN

1шт.

9

H59564

PIN

separator check flap adj chain

1шт.

10

569057R1

HUB, driven pulley, regular

1шт.

5/16 X 1 MACH BOLT W/NUT

4шт.

5/16 LOCK WASHER

4шт.

11

568237R11

PULLEY W/SPACER, straw rack driven, regular

1шт.

12

Q3932

KEY,Gib, 5/16" Sq x 2"

5/16 x 5/16 x 2 gib

1шт.

13

570850R1

PULLEY, straw rack driven, slow speed

1шт.

14

937928R1

V-BELT

Fan and straw rack drive

1шт.

15

569106R21

FLAP

CANVAS ASSY, separator front check flap

1шт.

16

569102R21

CANVAS ASSY, separator rear check flap

1шт.

17

568626R1

CRANKSHAFT

straw rack front

1шт.

17

634771R1

CRANKSHAFT

straw rack rear

1шт.

18

NOT USED

1шт.

19

SHIM, bearing box, Not serviced separately, Order package assy 156207C91

1шт.

20

BOX, straw rack crankshaft bearing, Not serviced separately, Order package assy 156207C91

1шт.

21

STRAP, nut, Not serviced separately, Order package assy 156207C91

1шт.

5/16 X 2-1/2 CRG BOLT

1шт.

NLS

NO LONGER SERVICED

5/16 SQ NUT

1шт.

22

634296R91

RACK

STRAW RACK ASSY, Serial no. 805 and below

4шт.

22

170935C1

STRAW RACK ASSY, Includes ref nos 27, 28, 29 and 30, Serial no. 806 and above

4шт.

23

NOT USED

1шт.

24

NOT USED

1шт.

25

569107R1

ROD, separator front check flap lower hinge

1шт.

26

569103R91

FLAP W/CLAMP, separator front check

1шт.

27

634277R1

ROD, straw rack front grille, Serial no. 805 and below

20шт.

27

937299R1

ELECTRICAL WIRE

WIRE, straw rack front riser, Serial no. 806 and above

1шт.

28

634286R1

ROD, straw rack front center grille, Serial no. 805 and below

20шт.

28

937300R1

ELECTRICAL WIRE

WIRE, straw rack front center riser, Serial no. 806 and above

1шт.

29

634287R1

ROD, straw rack center grille, Serial no. 805 and below

20шт.

29

937301R1

ELECTRICAL WIRE

WIRE, straw rack rear center riser, Serial no. 806 and above

1шт.

30

634288R1

ROD, straw rack rear grille, Serial no. 805 and below

20шт.

30

170942C1

ELECTRICAL WIRE

WIRE, straw rack riser rear, Serial no. 806 and above

1шт.

31

937304R91

COVER ASSY, straw rack rear, Serial no. 806 and above

1шт.

31

161006C1

COVER ASSY, straw rack rear, special slow speed

1шт.

110663

NO. 10 NUT

1шт.

110499

CAPSCREW,Rd Hd, #10 - 24 x 3/8"

NO. 10 X 3/8 SLT-RD-HD MACH SCREW

1шт.

106497

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

32

156207C91

STRIPPER PACKAGE

PACKAGE ASSY, straw rack bearing block service, Consists of

1шт.

568625R2

BOX

BEARING BOX

2шт.

M83629

SHIM,.020" Thk

12шт.

174015C1

GASKET

SHIM

2шт.

M14846

CLAMP

STRAP, lock

2шт.

18677R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 2 1/2", Gr 2

BOLT, C-Z crg

4шт.

120373

NUT, C-Z sq

4шт.

33

165920C91

GRILLE ASSY, straw rack front, Includes ref. no. 34

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z whiz lock

9шт.

937875R1

SCREW,Serr, 1/4" - 20

1/4 x 3/4 C-Z whiz lock

9шт.

34

937299R1

ELECTRICAL WIRE

WIRE, straw rack front grille

1шт.

35

165919C91

GRILLE ASSY, straw rack front center, Includes ref. no. 36

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z whiz lock

8шт.

937875R1

SCREW,Serr, 1/4" - 20

1/4 x 3/4 C-Z whiz lock

8шт.

36

937300R1

ELECTRICAL WIRE

WIRE, straw rack front grille center

8шт.

37

165921C91

COVER ASSY, straw rack center and rear

2шт.
