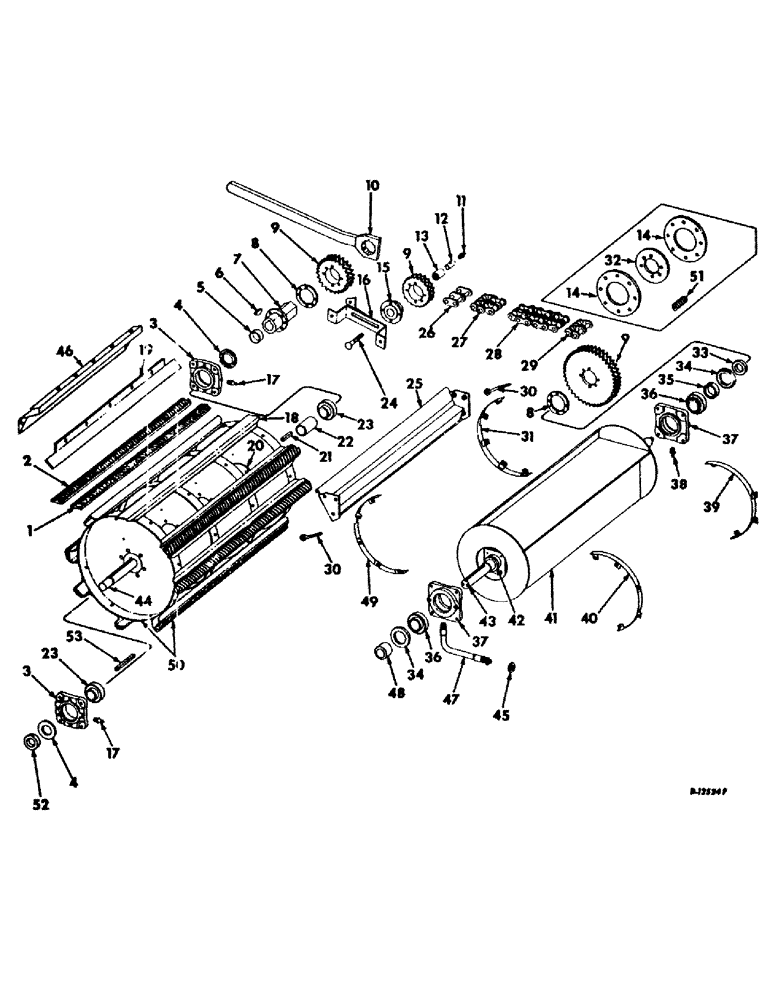

Запчасти Case IH 403 (058) - CYLINDER, DRIVE, SLIP CLUTCH, AND CYLINDER BEATER (66) - THRESHING

1

935126R91

BAR ASSY.

SET OF CYLINDER BARS, RH

1шт.

See Figure Note.

1шт.

181655

BOLT,Hex, 7/16" - 20 x 9/16", Gr 5

SCREW, 7/16 x 9/16 C-Z cap

1шт.

See Figure Note.

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

See Figure Note.

1шт.

2

935125R91

BAR ASSY.

SET OF CYLINDER BARS, LH

1шт.

See Figure Note.

1шт.

181655

BOLT,Hex, 7/16" - 20 x 9/16", Gr 5

SCREW, 7/16 x 9/16 C-Z cap

1шт.

See Figure Note.

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

See Figure Note.

1шт.

3

629689R11

HOUSING

W/BEARING AND SEAL ASSY, cyl bearing, Includes ref nos. 4 and 23, Serial no. 805 and below

2шт.

3

939617R11

BOX

HOUSING ASSY, cyl shaft bearing, Includes ref. nos. 4 and 23, Serial no. 806 and above

2шт.

1/2 X 3/4 MACH BOLT

4шт.

936627R1

17/32 X 2 X 16 GA WASHER

4шт.

557268R1

WASHER

17/32 X 3/4 X 16 GA WASHER

4шт.

4

631758R91

SEAL

cyl bearing, Serial no. 805 and below

2шт.

4

939619R91

SEAL

SEAL ASSY, cyl bearing, Serial no. 806 and above

2шт.

5

631405R1

SPACER, cyl shaft

1шт.

6

117998

WOODRUFF KEY,#G, 3/8" x 1 1/2", HT

KEY, 3/8 x 1-1/2 Woodruff, Serial no. 940 and below

1шт.

6

Q29

KEY, 3/8 x 3/8 x 5-1/2 sq parallel, Serial no. 941 and above 3/8" Sq x 5 1/2"

1шт.

7

629690R2

HUB

cyl drive

1шт.

5/16 JAM NUT

2шт.

106837

SET SCREW,Sq Hd, 5/16"-18 x 3/4"

5/16 X 3/4 SQ-HD SET SCREW

2шт.

8

631836R1

SPACER, cyl sprocket

2шт.

9

569201R2

PINION

SPROCKET, 20-T, double

1шт.

9

569200R2

DRIVE SPROCKET

SPROCKET, 25-T, double

1шт.

9

569580R2

SPROCKET ASSY.

SPROCKET, 30-T, double, special

1шт.

3/8 C-Z NUT

6шт.

20153R1

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 8

3/8 X 1-1/2 C-Z CAP SCREW

12шт.

3/8 C-Z LOCK WASHER

12шт.

9

569202R2

DRIVE SPROCKET

SPROCKET, 43-T, double

1шт.

142680H

BOLT (SPREADER),Hex, 3/8"-16 x 2 1/2", G8

BOLT, Hex, 3/8"-16 x 2 1/2", G8

6шт.

3/8 C-Z LOCK WASHER

6шт.

9

627884R1

SPROCKET ASSY.

SPROCKET, 22-T, double

1шт.

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3/8 X 2 C-Z CAP SCREW

4шт.

3/8 C-Z LOCK WASHER

4шт.

9

569582R2

SPROCKET, 48-T, double, special

1шт.

9

570606R2

SPROCKET, 43-T, double, special

1шт.

10

174876C1

TOOL

BAR, cylinder rocking

1шт.

11

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8 90 elbow lub

1шт.

12

578607R1

SLEEVE CYLINDER

SLEEVE, cyl chain tightener sprocket

1шт.

13

577006R91

NEEDLE BEARING,Needle, 22.2mm ID x 33.36mm OD x 38.1mm W

needle

1шт.

14

570607R1

PLATE, cyl slip clutch outer, special

2шт.

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, , Stove 3/8"-16, GB

8шт.

3/8 X 3-1/2 CAP SCREW

8шт.

13/32 X 1 X 16 GA WASHER

8шт.

15

627885R11

HUB CAP

HUB W/BEARING ASSY, cyl drive chain tightener sprocket, Includes ref. no. 13

1шт.

16

633507R91

BRACKET W/STIFFENER, cyl drive chain tightener

1шт.

454998

BOLT,Hex, 1/2" - 13 x 1", Gr 8

1/2 X 1 C-Z CAP SCREW W/NUT

1шт.

1/2 C-Z LOCK WASHER

1шт.

PO10532

WASHER

13/32 X 1-1/4 X 11 GA WASHER

1шт.

17

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8 90 elbow lub

2шт.

18

633512R1

SUPPORT

cylinder bar

8шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

2шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z hex-hd mach

1шт.

18780R1

BOLT,Hex, 3/8"-16 x 1 3/4", G2

3/8 x 1-3/4 C-Z hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

619856R1

WASHER

13/32 x 1 x 16 ga

36шт.

104096

RIVET,But Hd, 5/16" x 5/8"

5/16 x 5/8 b-hd

128шт.

19

653858R1

SUPPORT

DEFLECTOR, cylinder front

1шт.

20

156390C1

HUB, cylinder

4шт.

18709R1

BOLT,Short NK, 1/2"-13 x 2 3/4", G2

1/2 x 2-3/4 C-Z sq-nk crg

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

104099

RIVET,But Hd, 5/16" x 1"

5/16 x 1 b-hd

24шт.

21

Q51

KEY,3/8" Sq x 2 1/2", Par

1шт.

22

629691R1

SPACER, cylinder shaft bearing

1шт.

23

631984R91

BALL BEARING

ASSY, cylinder ball shaft, Serial no. 805 and below

2шт.

23

939618R91

BEARING

ASSY, cylinder shaft ball, Serial no. 806 and above

2шт.

24

575280R1

BOLT (SPREADER)

BOLT, cylinder drive chain tightener sprocket

1шт.

5/8 NUT

1шт.

5/8 LOCK WASHER

1шт.

575810R1

WASHER

21/32 X 1-1/2 X 11 GA WASHER

5шт.

21/32 X 1-1/2 X 12 GA SQ-HOLE WASHER

1шт.

25

627712R91

DEFLECTOR W/NUT, cylinder, Serial no. 805 and below

1шт.

3/8 X 1 CAP SCREW

36шт.

354921R1

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 8

3/8 X 1-1/2 CAP SCREW

2шт.

560164R1

SCREW,Hex, 3/8"-16 x 7/8", G8, Full Thd

3/8 X 7/8 CAP SCREW

1шт.

3/8 LOCK WASHER

5шт.

13/32 X 1 X 16 GA WASHER

3шт.

25

163620C91

DEFLECTOR ASSY, cylinder, Serial no. 806 and above

1шт.

454997

O-RING,175mm ID x 8mm Width

1/2 X 7/8 C-Z CAP SCREW

3шт.

20171R1

BOLT,Hex, 1/2" - 13 x 1 1/8", Gr 8

1/2 X 1-1/8 C-Z CAP SCREW

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

5шт.

Q5035

WASHER

17/32 X 1 X 16 GA WASHER

4шт.

26

569206R91

CHAIN LINK

LINK, connecting, 3/4 double pitch

1шт.

27

570988R91

DRAG LINK

LINK, two pitch combination offset, 3/4 double pitch

1шт.

28

CHAIN, cylinder drive roller, Use 77 links of 3/4 double pitch roller chain from a 10-ft roll marked 1355D, 3 connecting links 569206R91 and 1 two pitch combination offset link 570988R91

1шт.

29

NOT USED

1шт.

30

634125R2

BOLT,3/8" - 16 x 4.62"

EYEBOLT, cylinder stripper adjusting

2шт.

16807R1

PIN

3/8 C-Z NUT

4шт.

31

NOT USED

1шт.

32

568854R2

PLATE CYL SLIP CLUTCH INNER, special

1шт.

33

631660R1

SPACER, cylinder beater shaft right

1шт.

34

631705R91

SEAL

cylinder beater bearing oil, Serial no. 805 and below

2шт.

34

939624R91

SEAL

SEAL ASSY, cylinder shaft oil, Serial no. 806 and above

2шт.

35

629724R11

COLLAR

COLLAR W/SET SCREW ASSY, locking, 1 used, Serial no. 501 to 640, 2 used, Serial no., Serial Range: 641-803

1шт.

35

939932R11

COLLAR

W/SET SCREW LOCKING

2шт.

102596

3/8 X 3/8 SOCKET-HD SET SCREW, Serial no. 806 and above

2шт.

36

631988R91

BEARING ASSY,1.688" ID

ball, Serial no. 805 and below

2шт.

36

939621R91

BEARING

ball, Serial no. 806 and above

2шт.

37

631212R11

HOUSING W/BEARING AND SEAL, cylinder beater shaft bearing, Includes ref. nos. 34 and 36, Serial no. 805 and below

2шт.

37

939620R11

HOUSING ASSY, cylinder beater shaft bearing, Includes ref. nos. 34 and 36, Serial no. 805 and above

2шт.

1/2 X 3-3/4 MACH BOLT

4шт.

936627R1

17/32 X 2 X 16 GA WASHER

4шт.

557268R1

WASHER

17/32 X 3/4 X 16 GA WASHER

4шт.

38

219-5

LUBE NIPPLE,1/8" - 27 NPTF

FITTING, 1/8 straight lubrication

1шт.

39

NOT USED

1шт.

40

NOT USED

1шт.

41

150688C91

BEATER ASSY, cylinder, Not for use with bean special

1шт.

42

629713R1

SPACER

cylinder beater inner, LH

1шт.

43

627579R11

SHAFT

W/NUT ASSY, cylinder beater, Serial no. 640 and below, Order service package 936715R91

1шт.

43

936715R91

PACKAGE

ASSY, cylinder beater and separator driven pulley, Serial no. 640 and below, Consists of

1шт.

163553C11

SHAFT ASSY, cylinder beater

1шт.

936436R1

PULLEY, separator driven

1шт.

117998

WOODRUFF KEY,#G, 3/8" x 1 1/2", HT

KEY, 3/8 x 1-1/2 Woodruff

1шт.

163446C1

KEY

3/8 x 2-1/2 straight

1шт.

629724R11

COLLAR

COLLAR W/SET SCREW ASSY

1шт.

105592

3/8 X 3/8 SET SCREW

1шт.

936727R1

WASHER,26.16mm ID x 56.9mm OD x 6.35mm Thk

1-1/32 X 2-1/4 X 1/4 WASHER

2шт.

632471R1

1-1/32 X 2 X 22 GA WASHER

4шт.

43

163553C11

SHAFT ASSY, cylinder beater, Serial no. 641 and above, For use w/3/8 in. Woodruff key

1шт.

43

166043C11

SHAFT ASSY, cylinder beater, For use w/1/2 in. Woodruff key

1шт.

427651

SLOTTED NUT,1"-14, G5

1 SLT-HEX NUT

2шт.

1/8 X 2 COT. PIN

2шт.

632471R1

1-1/32 X 2 X 22 GA WASHER

2шт.

10619P

1-21/32 X 2-1/4 X 16 GA WASHER

4шт.

Q254

WASHER

1-23/32 X 2-1/2 X 18 GA WASHER

8шт.

936727R1

WASHER,26.16mm ID x 56.9mm OD x 6.35mm Thk

1-1/32 X 2-1/4 X 14 GA WASHER

2шт.

Q1437

1-1/32 X 2-1/2 X 18 GA WASHER

4шт.

44

627714R11

SHAFT W/NUT ASSY, cylinder

1шт.

427651

SLOTTED NUT,1"-14, G5

1 - 14NS SLTD NUT

1шт.

1/8 X 2 COTTER PIN

1шт.

551179R1

1-1/32 X 2-1/4 X 22 GA WASHER

1шт.

10619P

1-21/32 X 2-1/4 X 16 GA WASHER

1шт.

936727R1

WASHER,26.16mm ID x 56.9mm OD x 6.35mm Thk

1-1/32 X 2-1/4 X 1/4 WASHER

1шт.

45

581873R1

TUBE NUT,4.8 mm Length

cylinder beater bearing housing lubrication hose

1шт.

46

935696R91

DEFLECTOR ASSY, cylinder cover dust

1шт.

3/8 X 1 CRG BOLT W/NUT

4шт.

3/8 LOCK WASHER

4шт.

47

171970C1

HOSE ASSY, cyl beater brg lub

1шт.

48

936210R1

SPACER, cylinder beater shaft outer, LH, Serial no., Serial Range: 501-640

1шт.

49

NOT USED

1шт.

50

168006C91

CYLINDER ASSY, less shaft, Includes ref nos 1, 2, 18 and 20

1шт.

51

M74156

SPRING

cylinder drive slip clutch, special

8шт.

52

629721R11

COLLAR

COLLAR W/SET SCREW, locking, Serial no. 805 and below

1шт.

52

939930R11

COLLAR

W/SET SCREW, locking, Serial no. 806 and above

1шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

3/8 X 3/8 SOCKET-HD SET SCREW

1шт.

53

Q1432

KEY,3/8" Sq x 5", Par

3/8 x 3/8 x 5 straight, Not for use with spike tooth cylinder

1шт.
