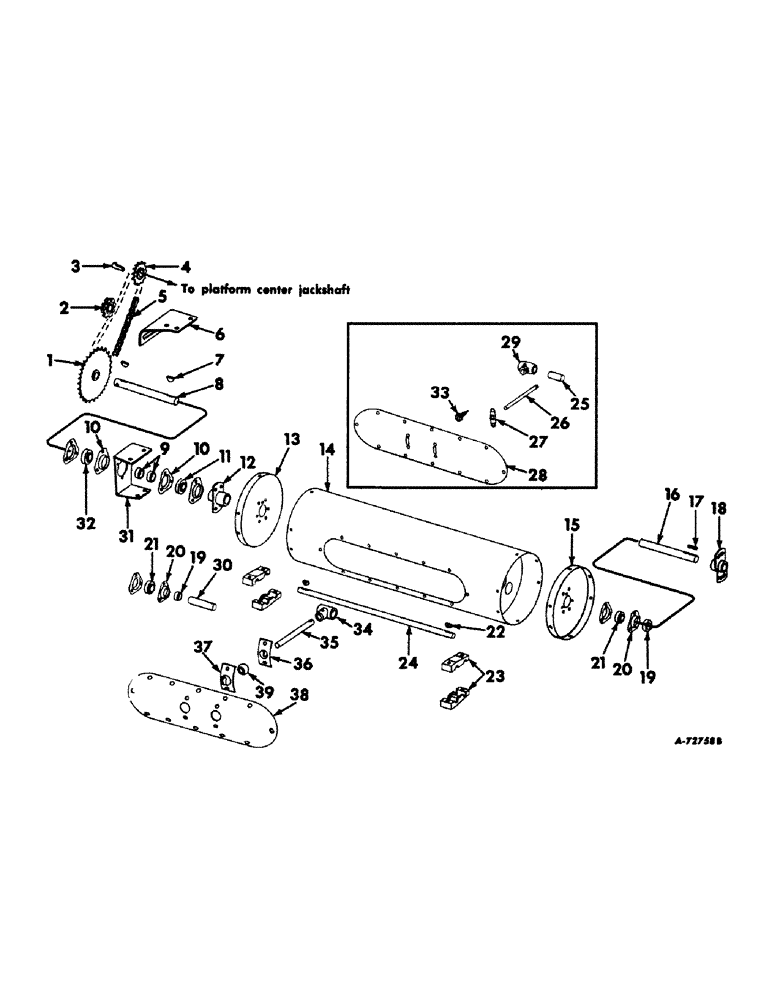

Запчасти Case IH 403 (034) - LOWER FEED BEATER (60) - PRODUCT FEEDING

1

632966R91

SPROCKET ASSY.

SPROCKET W/HUB, feed beater driven, 45-T

1шт.

3/16 X 2-1/2 COTTER PIN

1шт.

577247R1

LOCK PIN,3/8" x 2", Slotted

Pin, 3/8" x 2", Slotted

2шт.

2

582415R91

DRIVE SPROCKET,9T

SPROCKET ASSY, feed beater chain idler bearing

1шт.

3

Q1497

KEY,Gib, 3/8" Sq x 2"

3/8 x 2 gib

1шт.

4

588961R91

SPROCKET ASSY.

SPROCKET W/HUB, feed beater drive, 19-T

1шт.

5

CHAIN, lower beater drive roller, Use 35 links from 1-1/4 extended pitch roller chain, agricultural, from a 10-ft roll marked 569089R91, two offset connecting links 456929R91 and 1 connecting link 587372R91

1шт.

6

574292R1

BRACKET, feed beater drive chain tightener

1шт.

5/8 X 2-1/2 CRG BOLT W/NUT

1шт.

5/8 LOCK WASHER

1шт.

21/32 X 1-1/4 X 11 GA WASHER

2шт.

615196R1

WASHER

29/32 X 1-3/4 X 11 GA WASHER

1шт.

551177R1

WASHER

21/32 X 1-1/4 X 16 GA WASHER

2шт.

7

113879

KEY

5 x 1-1/4 Woodruff

2шт.

8

632967R1

SHAFT

lower beater drive

1шт.

9

557115R11

COLLAR

COLLAR W/SET SCREW ASSY

2шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

5/16 X 5/16 CUP-PT SET SCREW

2шт.

10

571425R1

FLANGED BEARING

lower beater inner RH, bearing

4шт.

11

557114R91

BEARING

ball

1шт.

12

935964R2

HUB

SUPPORT W/COLLAR, lower beater drive

1шт.

13

588409R91

DISC

W/STIFFENER, feed beater end support, RH

1шт.

7/16 X 1-1/4 MACH BOLT W/NUT

4шт.

7/16 LOCK WASHER

4шт.

14

571098R91

TUBE W/DISC, lower feed beater, Serial no. 805 and below

1шт.

14

150729C91

PIPE ASSY, lower feed beater, Serail no. 806 and above

1шт.

5/16 X 3/4 CRG BOLT W/NUT

15шт.

5/16 LOCK WASHER

15шт.

15

563246R1

FLANGE

DISC, feed beater end support, LH

1шт.

5/16 X 3/4 CRG BOLT W/NUT

3шт.

5/16 LOCK WASHER

3шт.

16

671102R1

SHAFT, lower beater adjusting

1шт.

17

Q98

KEY, 1/4 x 1/4 x 1-7/8 straight 1/4" Sq x 1 7/8", Par

1шт.

18

571104R91

LEVER W/HUB, feed beater finger adjusting

1шт.

106839

SET SCREW,Sq Hd, 5/16"-18 x 1"

5/16 X 1 SQ-HD DOG-PT SET SCREW

1шт.

5/16 JAM NUT

1шт.

19

455102R11

COLLAR

W/SET SCREW ASSY

2шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

1/4 X 1/4 CUP-PT SET SCREW

2шт.

20

571424R1

FLANGE

feed beater LH, bearing

4шт.

21

455101R91

BEARING

ball

2шт.

22

28459KA

WASHER

feed beater shaft arm

3шт.

23

566608R11

CLAMP

ARM W/SCREW, nut and washer assy feed beater shaft

2шт.

3/8 X 2-1/4 CAP SCREW

4шт.

3/8 NUT

4шт.

3/8 LOCK WASHER

4шт.

24

571101R1

SHAFT, lower center beater, Serial no. 805 and below

1шт.

24

150732C1

SHAFT

lower center beater, Serial no. 806 and above

1шт.

25/32 X 1-1/4 X 16 GA WASHER

5шт.

25

558318R1

HALF-BUSHING

BUSHING, feed beater finger, Serial no., Serial Range: 501-640

10шт.

26

564954R1

FINGER

feed beater, Serial no., Serial Range: 501-640

10шт.

26

936655R1

FINGER

PIN, feed beater, Serial no., Serial Range: 641-805

10шт.

3/16 X 1-1/2 COTTER PIN

1шт.

27

653935R2

GUIDE

feed beater finger, Serial no. 805 and below

10шт.

28

569259R1

PLATE, feed beater inspection, Serial no. 805 and below

1шт.

113861

PAWL,Slotted Rd Hd, 5/16"-18 x 3/4"

5/16 X 1/2 SLT-RD-HD MACH SCREW

12шт.

5/16 LOCK WASHER

12шт.

29

558316R2

HUB

feed beater bearing, Serial no., Serial Range: 501-640

10шт.

108639

BRACKET

5/16 X 1 SQ-HD DOG-PT SET SCREW

10шт.

5/16 JAM NUT

10шт.

29

936042R1

HUB

feed beater bearing, Serial no., Serial Range: 641-805

10шт.

30

558353R1

SHAFT

feed beater stub, Serial no., Serial Range: 501-640

1шт.

30

936028R1

SPACER

SHAFT, feed beater stub, Serail no. 641 and above

1шт.

31

571103R1

SUPPORT, feed beater RH, outer bearing

1шт.

3/8 X 1 CRG BOLT W/NUT

3шт.

3/8 LOCK WASHER

3шт.

32

455960R91

BALL BEARING

BEARING ASSY, ball

1шт.

33

936693R1

CAPSCREW,Tapping, 1/4" x 7/8"

SCREW, feed beater pin guide, Serial no. 805 and below

20шт.

34

150725C1

HUB CAP

HUB, feed beater finger, Serial no. 806 and above

10шт.

35

150728C1

SHAFT

PIN, feed beater, Serial no. 806 and above

10шт.

150724C1

SPLIT PIN/SAFETY PIN

QUICK ATTACHABLE COTTER PIN

10шт.

36

150723C1

RETAINER

feed beater pin inner, Serial no. 806 and above

10шт.

37

150726C1

RETAINER

feed beater pin outer, Serial no. 806 and above

10шт.

1/4 NUT

10шт.

85700996

SCREW,Phillips Drive, Pan HD, 1/4" - 20 x 1/2"

1/4 X 1/2 C-Z SLT-TRUSS-HD MACH SCREW

10шт.

1/4 LOCK WASHER

10шт.

38

150731C1

COVER

feed beater inspection plate, Serial no. 806 and above

1шт.

20599R1

SCREW

5/16 X 3/4 C-Z TRUSS-HD-SCREW

12шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

39

170720C1

BUSHING,13.13mm ID x 28.4mm OD

feed beater pin, Serial no. 806 and above

10шт.
