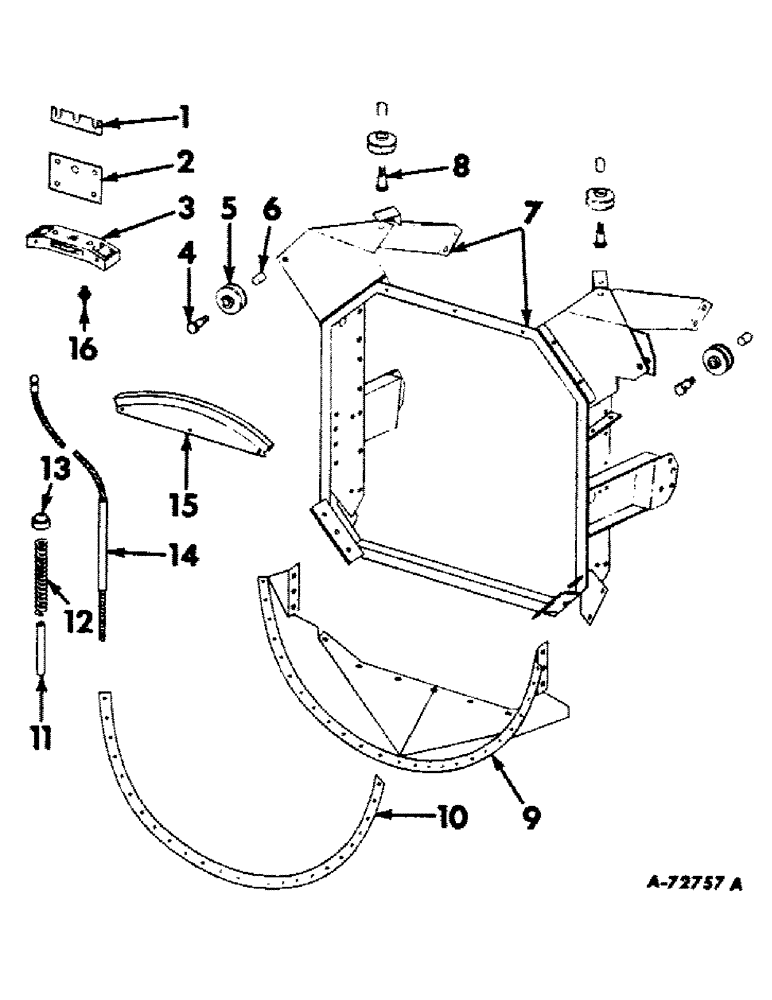

Запчасти Case IH 403 (033) - FEEDER EXTENSION (60) - PRODUCT FEEDING

1

571057R1

SHIM, upper leveling roller

8шт.

2

571058R1

PLATE, upper leveling roller centering

2шт.

5/8 X 1-3/4 MACH BOLT

4шт.

5/8 LOCK WASHER

4шт.

3

571051R92

ROLLER W/PIN ASSY, platform leveling, Consists of

4шт.

571053R1

ROLLER

center

4шт.

571054R1

PIN

center roller

4шт.

571055R1

ROLLER, end

8шт.

571056R1

PIN, end roller

8шт.

568921R1

BUSHING,15.9mm ID x 19.02mm OD x 22.23mm L

16шт.

4

574317R1

STUD,Hex, 5/8" - 11 x 2 3/4"

platform cross leveling cable sheave front

4шт.

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

1/8 90 DEG ELBOW LUBRICATION FITTING

4шт.

5/8 NUT

4шт.

5/8 LOCK WASHER

4шт.

5

634956R11

PULLEY

SHEAVE W/BUSHING ASSY, platform cross leveling cable, Includes ref no. 6

6шт.

6

574859R1

BUSHING

6шт.

7

634984R91

EXTENSION W/SPACER, feeder

1шт.

5/16 X 3/4 CRG BOLT W/NUT

7шт.

3/8 X 1 CRG BOLT W/NUT

10шт.

3/8 X 1-1/4 CRG BOLT W/NUT

1шт.

5/8 X 3 CRG BOLT W/NUT

4шт.

5/8 X 3-1/4 CRG BOLT W/NUT

4шт.

3/8 X 1 MACH BOLT W/NUT

3шт.

3/8 X 1-1/4 MACH BOLT W/NUT

1шт.

1/2 X 3-1/2 MACH BOLT W/NUT

6шт.

3/8 NUT

4шт.

5/8 X 1-3/4 CAP SCREW

4шт.

5/16 LOCK WASHER

7шт.

3/8 LOCK WASHER

19шт.

1/2 LOCK WASHER

6шт.

5/8 LOCK WASHER

12шт.

13/32 X 1 X 16 GA WASHER

1шт.

575807R1

WASHER

13/32 X 1 X 11 GA WASHER

11шт.

557268R1

WASHER

17/32 X 3/4 X 16 GA WASHER

6шт.

8

574316R1

STUD, platform cross leveling cable, sheave rear

2шт.

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

1/8 90 DEG ELBOW LUBRICATION FITTING

1шт.

5/8 NUT

2шт.

5/8 LOCK WASHER

2шт.

9

571064R91

BOTTOM W/ANCHOR, feeder extension

1шт.

5/16 X 3/4 CRG BOLT W/NUT

11шт.

5/16 X 1 CRG BOLT W/NUT

4шт.

3/8 X 1 CRG BOLT W/NUT

1шт.

5/16 LOCK WASHER

15шт.

3/8 LOCK WASHER

1шт.

10

571034R1

SEALING RING

platform leveling ring

1шт.

11

583845R1

SLEEVE

2шт.

12

578988R1

SPRING

2шт.

13

588164R1

BALL

2шт.

14

574318R91

CABLE PULLING GRIP

CABLE ASSY, platform cross leveling

2шт.

5/8 NUT

4шт.

575810R1

WASHER

21/32 X 1-1/2 X 11 GA WASHER

4шт.

15

571070R91

SHIELD W/TOP, feeder extension dust

1шт.

1/4 NUT

3шт.

NLS

NO LONGER SERVICED

1/4 X 3/4 SLT-FIL-HD MACH SCREW

3шт.

1/4 LOCK WASHER

3шт.

16

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, lubrication 1/4 straight

4шт.
