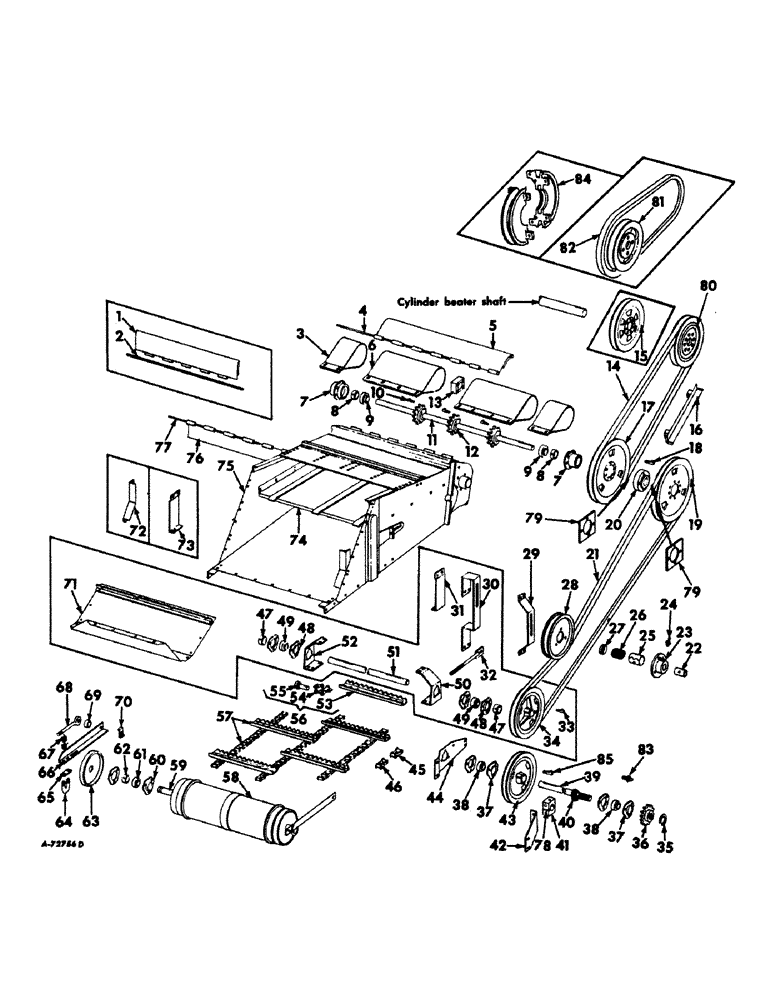

Запчасти Case IH 403 (030) - FEEDER AND FEED CONVEYOR CHAIN (60) - PRODUCT FEEDING

1

588210R1

DOOR, feeder top

1шт.

2

588209R1

ROD, feeder top door

1шт.

3

626613R1

SHIELD

feeder pivot shaft end

2шт.

5/16 X 3/4 CRG BOLT W/NUT

4шт.

5/16 LOCK WASHER

4шт.

11/32 X 3/4 X 16 GA WASHER

4шт.

4

568476R1

ROD

feeder upper door hinge

1шт.

5

569651R91

DOOR

W/FLANGE, feeder upper shaft, For 23.1/18-26 main wheel tires

1шт.

6

626620R1

SHIELD

feeder pivot shaft center

1шт.

5/16 X 3/4 CRG BOLT W/NUT

1шт.

5/16 LOCK WASHER

1шт.

11/32 X 3/4 X 16 GA WASHER

1шт.

7

631633R1

CAGE

BOX, bearing

2шт.

8

455104R11

COLLAR

W/SET SCREW, locking

1шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

3/8 X 3/8 CUP-PT SET SCREW

2шт.

9

455103R91

BEARING

ball

1шт.

10

Q3947

KEY,Gib, 3/8" Sq x 1 1/2"

3/8 x 3/8 x 1-1/2 gib

3шт.

11

569274R2

SHAFT

feeder pivot

1шт.

12

564968R1

SPROCKET ASSY.

SPROCKET, feeder upper, 10-T

3шт.

13

NOT USED

1шт.

14

568938R1

BELT

feeder drive, Serial no. 805 and below

1шт.

14

937932R1

BELT

V-BELT, Feeder drive, Serial no. 806 and above

1шт.

15

586304R1

SHEAVE, feeder drive, Serial no. 805 and below

1шт.

3/8 X 1-3/8 CAP SCREW

4шт.

3/8 NUT

4шт.

3/8 LOCK WASHER

4шт.

16

633516R91

GUIDE W/SUPPORT, feeder drive belt

1шт.

5/16 X 1/2 CRG BOLT W/NUT

2шт.

5/16 LOCK WASHER

2шт.

17

571467R1

SHEAVE, feeder driven, Serial no. 805 and below

1шт.

17

568937R21

PULLEY

SHEAVE, feeder driven, Serial no. 806 and above

1шт.

5/16 X 2-1/2 MACH BOLT W/NUT

4шт.

5/16 LOCK WASHER

4шт.

18

240

KEY,Gib, 3/8" Sq x 2 1/2"

3/8 x 3/8 x 2-1/2 gib

1шт.

19

571467R1

SHEAVE, platform jackshaft drive, Serial no. 805 and below

1шт.

19

571450R1

SHEAVE, platform jackshaft drive, Serial no. 806 and above

1шт.

20

571442R1

HUB CAP

HUB, feeder drive sheave

1шт.

3/8 X 2-3/4 MACH BOLT W/NUT

4шт.

3/8 LOCK WASHER

4шт.

21

626789R1

V-BELT

Platform jackshaft drive

1шт.

22

22847KA

BUSHING

SLEEVE, platform jackshaft drive belt tightener sheave

1шт.

21868V

WASHER

29/32 X 1-1/2 X 16 GA WASHER

4шт.

23

632591R11

HUB

W/BEARING, race and washer assy, platform jackshaft sheave tightener, Includes ref. nos. 25, 26 and 27

1шт.

3/8 X 1 MACH BOLT W/NUT

3шт.

3/8 LOCK WASHER

3шт.

24

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

25

632592R1

BUSHING

RACE, outer

1шт.

26

ST1302

BEARING

roller

1шт.

27

M23538

WASHER

1шт.

28

568941R11

PULLEY

SHEAVE ASSY, platform jackshaft tightner

1шт.

29

NOT USED

1шт.

30

588219R1

BRACKET, platform jackshaft drive belt

1шт.

5/8 X 4 CRG BOLT W/NUT

1шт.

5/8 LOCK WASHER

1шт.

21/32 X 1-1/4 X 11 GA WASHER

2шт.

575812R1

WASHER

23/32 X 1-1/2 X 11 GA WASHER

1шт.

557270R1

WASHER

29/32 X 1-1/4 X 11 GA WASHER

2шт.

31

571223R91

STOP W/KEY, feeder lower shaft arm bottom, LH

1шт.

3/8 X 1-1/4 CRG BOLT W/NUT

1шт.

3/8 X 1-1/2 CRG BOLT W/NUT

1шт.

3/8 LOCK WASHER

2шт.

32

588406R91

DRAWBOLT W/PLATE, platform jackshaft belt tightener

1шт.

1/2 NUT

2шт.

PO10535

WASHER

17/32 X 1-1/4 X 11 GA WASHER

1шт.

33

Q1497

KEY,Gib, 3/8" Sq x 2"

3/8 x 3/8 x 2 gib

1шт.

34

588218R1

PULLEY

SHEAVE, platform jackshaft driven

1шт.

35

NOT USED

1шт.

36

571266R91

SPROCKET ASSY.

SPROCKET W/HUB, platform auger, 17-T

1шт.

37

NOT USED

1шт.

38

NOT USED

1шт.

39

NOT USED

1шт.

40

NOT USED

1шт.

41

NOT USED

1шт.

42

NOT USED

1шт.

43

NOT USED

1шт.

44

NOT USED

1шт.

45

588564R11

LINK

W/COTTER AND PIN ASSY, connecting

1шт.

46

588562R91

CHAIN LINK

LINK W/COTTER AND PIN ASSY, offset

1шт.

47

557995R11

COLLAR

W/SET SCREW, locking

2шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

5/16 X 5/16 SET SCREW

2шт.

48

571425R1

FLANGED BEARING

platform jackshaft bearing

4шт.

3/8 X 1 CRG BOLT W/NUT

6шт.

3/8 LOCK WASHER

6шт.

13/32 X 3/4 X 16 GA WASHER

1шт.

49

557994R91

BALL BEARING,1.2505" ID x 62 mm OD x 1.90625, 0.625"

ball

2шт.

50

571236R1

SUPPORT, center jackshaft bearing, LH

1шт.

3/8 X 1 CRG BOLT W/NUT

3шт.

3/8 LOCK WASHER

3шт.

51

571228R1

JACKSHAFT, platform center

1шт.

52

571237R1

SUPPORT, center jackshaft bearing, RH

1шт.

3/8 X 1 CRG BOLT W/NUT

3шт.

5/16 X 1 MACH BOLT W/NUT

1шт.

5/16 LOCK WASHER

1шт.

3/8 LOCK WASHER

3шт.

53

569272R1

SLAT, feed conveyor chain, Not serviced separately

1шт.

54

588567R11

DRAG LINK

LINK W/COTTER AND PIN, attaching, Includes ref no. 55

1шт.

55

588565R1

AXLE PIN

PIN, attaching link

1шт.

1/8 X 1/2 COTTER PIN

1шт.

56

588569R91

SLAT

W/ATTACHING LINK, feed conveyor chain, LH

1шт.

56

588570R91

SLAT

W/ATTACHING LINK, feed conveyor chain, RH

1шт.

57

588104R91

CHAIN (AG)

CHAIN W/SLATS, feed conveyor

1шт.

58

584421R91

DRUM

W/HUB, feed conveyor lower, Serial no. 940 and below

1шт.

454862

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

5/16 X 3/4 CAP SCREW

6шт.

115548

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

6шт.

58

153316C91

ROLLER

DRUM ASSY, feed conveyor lower, Serial no. 941 and above

1шт.

5/16 C-Z NUT

6шт.

5/16 C-Z LOCKWASHER

6шт.

59

569275R1

SHAFT

feeder lower

1шт.

60

571424R1

FLANGE

bearing

4шт.

61

657383R92

BEARING

ball

2шт.

62

658006R11

COLLAR

W/SET SCREW, locking

2шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

1/4 X 1/4 CUP-PT. SET SCREW

2шт.

63

559096R91

SHIELD W/SUPPORT, feed conveyor lower sprocket

2шт.

64

558456R1

BOLT (SPREADER),3/8" - 16 x 2 1/4"

U-BOLT, feeder lower shaft

2шт.

3/8 NUT

4шт.

3/8 LOCK WASHER

4шт.

65

558455R1

STRAP

SHIM, feed shaft U-bolt

8шт.

66

583930R1

ARM

feeder lower shaft adjusting, LH

1шт.

66

583931R1

ARM

feeder lower shaft adjusting, RH

1шт.

3/8 X 7/ MACH BOLT

2шт.

109886

NUT

3/8 SLT NUT

2шт.

3/32 X 3/4 COTTER PIN

2шт.

115549

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

2шт.

13/32 X 3/4 X 16 GA WASHER

8шт.

67

PO144

SPRING

feeder lower shaft adjusting

4шт.

68

564979R1

BOLT (SPREADER),7/16" - 14 x 6"

BOLT, feed conveyor chain tightener

2шт.

NLS

NO LONGER SERVICED

7/16 C-Z NUT

4шт.

69

M79156

BUSHING

feed conveyor chain tightener bolt

1шт.

70

584013R1

STOP

feeder lower adjusting shaft bolt

1шт.

3/8 X 1-1/4 SQ-HD MACH BOLT W/NUT

2шт.

3/8 LOCK WASHER

2шт.

71

653927R91

TOP W/CLIP, feeder extension

1шт.

72

NOT USED

1шт.

73

571224R91

STOP W/KEY, feeder lower shaft arm bottom, RH

1шт.

3/8 X 1-1/4 CRG BOLT W/NUT

2шт.

3/8 LOCK WASHER

2шт.

74

936279R91

SHIELD W/STIFFENER AND STRIP

1шт.

5/16 X 3/4 CRG BOLT W/NUT

1шт.

5/16 X 1 CRG BOLT W/NUT

1шт.

5/16 LOCK WASHER

1шт.

75

631630R92

FEEDER ASSY, Includes ref. no. 7

1шт.

5/16 X 1/2 CRG. BOLT W/NUT

1шт.

5/16 X 1 CRG BOLT W/NUT

1шт.

7/16 X 3/4 CRG BOLT W/NUT

1шт.

1/2 X 1 CRG BOLT W/NUT

1шт.

7/16 X 1 MACH BOLT W/NUT

1шт.

1/2 X 1 MACH BOLT W/NUT

1шт.

1/2 X 1-1/4 MACH BOLT W/NUT

1шт.

5/16 LOCK WASHER

1шт.

3/8 LOCK WASHER

1шт.

7/16 LOCK WASHER

1шт.

1/2 LOCK WASHER

1шт.

76

568689R1

EXTENSION

feed plate

1шт.

77

568476R1

ROD

feed plate extension

1шт.

78

NOT USED

1шт.

79

568939R2

SPACER

feeder driven pulley and jackshaft driven sheave, Serial no. 641 and above

2шт.

80

150493C11

PULLEY ASSY, feeder drive, Serial no. 806 and above

1шт.

3/8 X 1-1/4 CAP SCREW

4шт.

3/8 NUT

4шт.

3/8 LOCK WASHER

4шт.

81

NOT USED

1шт.

82

NOT USED

1шт.

83

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28 ptf str lub

1шт.

84

NOT USED

1шт.

85

NOT USED

1шт.
