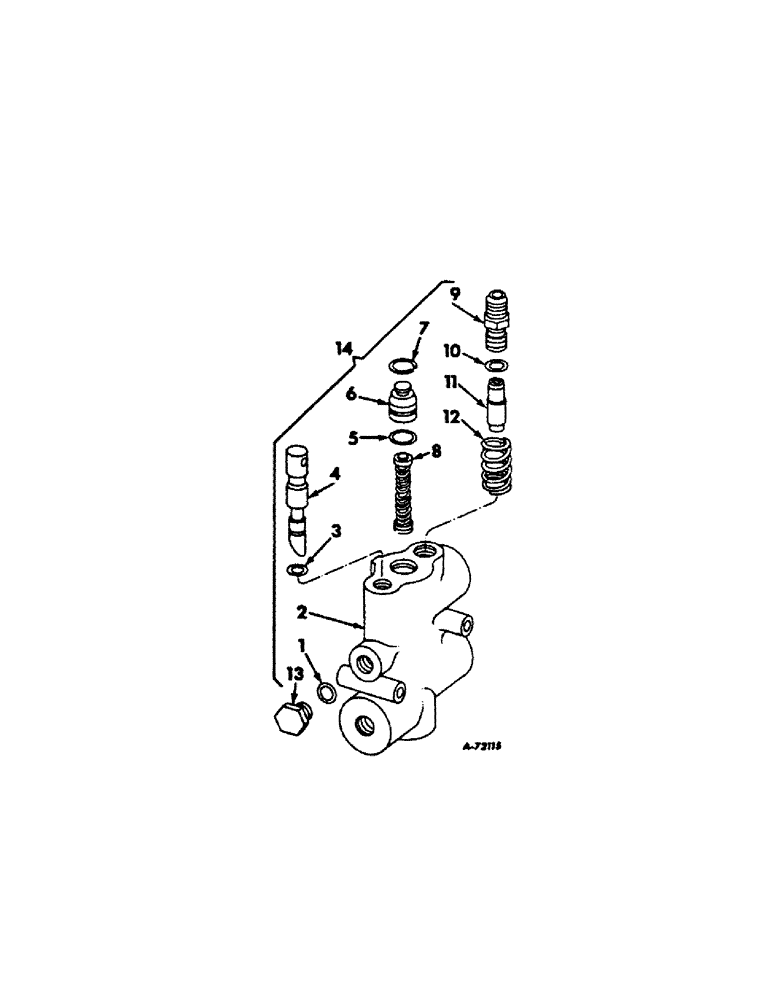

Запчасти Case IH 403 (188) - REEL DRIVE FLOW DIVIDER, S/N 1672 AND BELOW (58) - ATTACHMENTS/HEADERS

2

BODY, flow divider, Order 634743R91 flow divider ref no. 14

1шт.

3

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk

1шт.

4

654247R91

VALVE ASSY, control

1шт.

5

310943R1

RING

SEAL, o-ring

1шт.

6

654246R1

CAP, end

1шт.

7

654245R1

RING, retaining

1шт.

8

654249R91

STABILIZER ASSY

1шт.

9

654244R1

FITTING, male tube

1шт.

10

370920R1

O-RING,1/2" ID

SEAL, o-ring

1шт.

11

654248R91

PISTON ASSY, relief

1шт.

12

654242R1

SPRING

1шт.

13

9410357

PLUG

5/16

1шт.

14

634743R91

FLOW DIVIDER ASSY, hydraulic reel drive

1шт.

165361C91

DIVIDER ASSY, reel drive flow

1шт.

1

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, Gasket

1шт.
